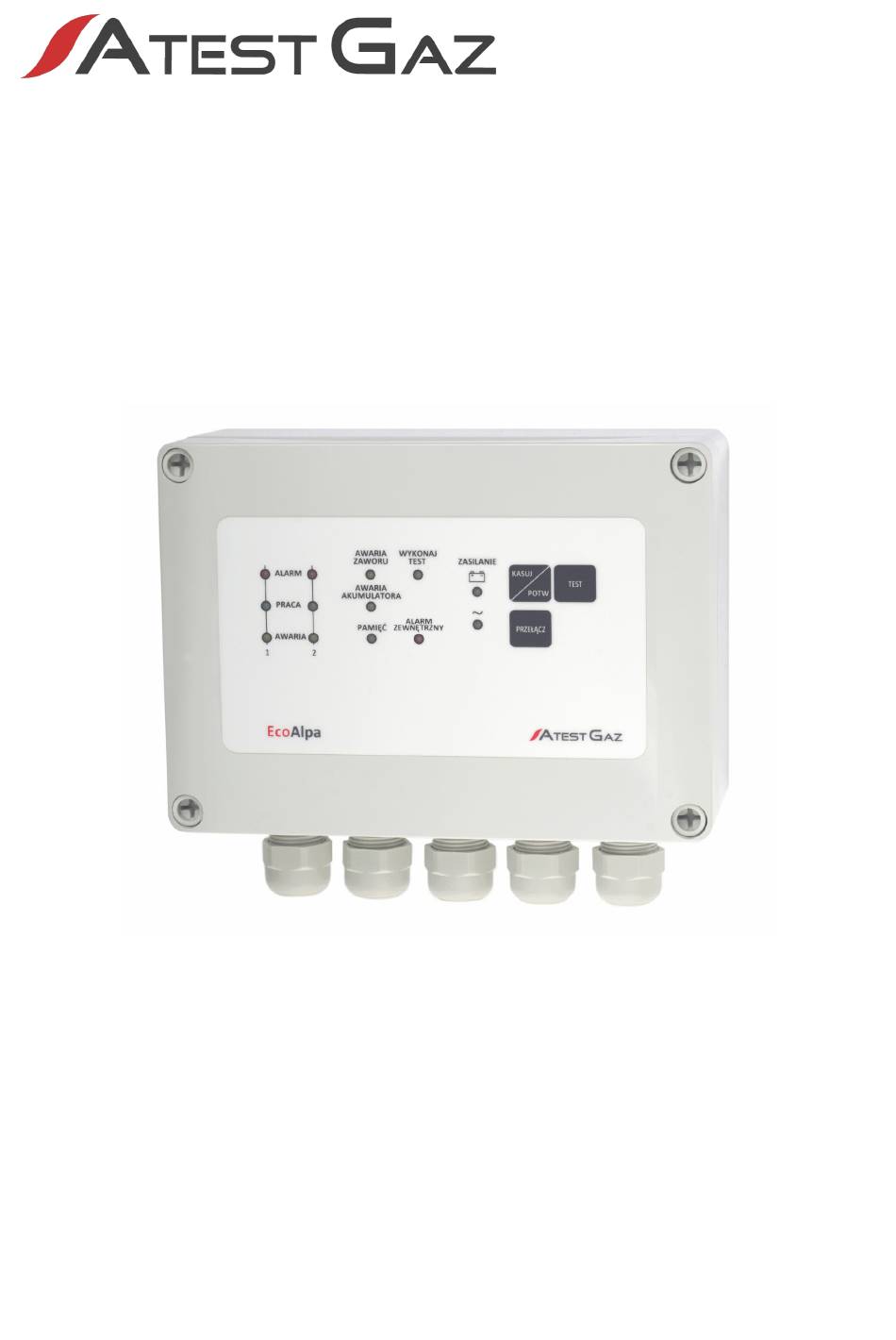

- Page 1 User Manual Control Unit EcoAlpa Product code: PW-054-X POD-017-ENG R01...
- Page 2 We design, manufacture, implement and support: Systems for Monitoring, Detection and Reduction of gas hazards We invite you to familiarize yourself with our offer on www.atestgaz.pl Atest Gaz A. M. Pachole sp. j. ul. Spokojna 3, 44-109 Gliwice Poland tel.: +48 32 238 87 94 fax: +48 32 234 92 71 e-mail: contact@atestgaz.pl...
-
Page 3: Table 1: Optical Indicators Status Notation
www.atestgaz.pl Remarks and reservations Read and understand this manual prior to connection and operation of the device. Keep the User Manual with the device for future reference. The manufacturer shall not be held responsible for any errors, damage or defects caused by improper selection of suitable devices or cables, errors in installation of equipment or any misuse due to failure to understand the document content. -
Page 4: Table Of Contents
www.atestgaz.pl Table of contents 1 General information..........................6 2 Safety..............................6 3 Description of the construction.......................7 4 Types and options of the control unit......................8 5 Input-output interfaces...........................8 5.1 Electric interface.............................8 5.2 Relay output............................10 5.3 Output for control of a light and sound warning device...............11 5.4 Output for control of a gas shutoff valve....................11 5.5 Output of the ZMZ module........................11 5.6 Output of an external alarm.........................11... - Page 5 www.atestgaz.pl Table 9: Purpose of the run Test Required indicator..................13 Table 10: Purpose of the BATTERY FAILURE indicator.................14 Table 11: Purpose of the POWER indicators....................14 Table 12: Purpose of the MEMORY indicator.....................14 Table 13: Purpose of the EXTERNAL ALARM indicator................15 Table 14: Specification of the terminal block of the ZMZ module..............16 Table 15: Selection of cables for connections between gas detectors and a control unit......22 Table 16: Selection of cables for connections between a Remote valve control module (ZMZ) and a control...
-
Page 6: General Information
www.atestgaz.pl General information The EcoAlpa Control Unit is designed to depict operation of the entire Gas Detection & Safety System in visual manner and to produce the required output signals. The EcoAlpa Control Unit is a dual port control device designed for collaboration with gas detectors communicating by means of 4..20 mA control signals. -
Page 7: Description Of The Construction
www.atestgaz.pl Description of the construction Figure 1:The construction of the EcoAlpa and its dimensions Figure 2: The construction of the ZMZ (Remote valve control module) and its dimensions s. 7|28 User Manual: POD-017-ENG R01... -
Page 8: Types And Options Of The Control Unit
www.atestgaz.pl Types and options of the control unit The EcoAlpa unit is available in several manufacturing options that are able to perform selected functionalities of the system, such as: control for the gas shutoff valve (various gas types), switching the system over to the backup power supply voltage to continue operation of the system when the mains voltage disappears. -
Page 9: Table 3: Specification Of The Terminal Block
www.atestgaz.pl Port Name Description Channel 2 Gas detector port Positive Signal input Negative Ext. Alarm Input External alarm input Input 1 Input 2 12 V Warning Device port Positive Optical output Sounder output Valve port Negative Positive ZMZ (Remote valve control module) port ZMZ power supply –... -
Page 10: Relay Output
www.atestgaz.pl Relay output The EcoAlpa control unit has three relay outputs: R1 – Failure This output may adopt one of two possible states: it is closed if no failure is detected within the Gas Detection System or opens when at least one defect is detected in any device incorporated into the system or when power voltage failure takes place. -
Page 11: Output For Control Of A Light And Sound Warning Device
www.atestgaz.pl Relay output Description Failure The relay is activated when any component of the gas detection system is defective. Warning The relay is set to the active mode when any gas detector reports exceeding of the gas concentration about the warning level. Valve For the design option designated as EcoAlpa P17 230V AC that relay output is used to control a shutoff valve with the power supply voltage of 230V. -
Page 12: User Interface
www.atestgaz.pl User interface EcoAlpa front panel includes: status area for gas detectors, valve area, power supply area, keypad area, memory area, external alarm area, internal buzzer (internal sounder). Gas detectors status Valve Power supply Keypad TEST VALVE REQUIRED FAILURE POWER ALARM CLEAR TEST... -
Page 13: Indicators Of The Valve Status
www.atestgaz.pl 6.1.2 ALARM indicators The ALARM indicator enables the control unit to inform that the specific gas detector reported exceeding of the maximum permissible threshold of gas concentration – see details in the table below: Purpose /colour Meaning / red The LED is permanently on –... -
Page 14: Indicators Of The Power Status
www.atestgaz.pl 6.2.3 Battery failure When voltage across the battery contacts drops below the permissible threshold the control unit informs about the problem by means of the BATTERY FAILURE indicator. The indicator is inactive (irrelevant) for the design option of the control unit that collaborates with a shutoff valve provided with a coil for control voltage of 230V AC. -
Page 15: External Alarm Indicator
www.atestgaz.pl depressing the button MEMORY button for about 5 seconds means that operator has already read the historical status and the memory can be erased. Afterwards the control unit moves to the mode of regular operation, if no action is undertaken by an operator in 30 seconds after entering the mode of historical events retrieving or after an alarm, warning or failure event takes place the control unit automatically quits the mode of memory readouts. -
Page 16: Remote Valve Control Module - Zmz
www.atestgaz.pl Remote valve control module – ZMZ The External Shutoff module is a device supplementary for the EcoAlpa Control Unit and its use is necessary when the shutoff valve has to be installed far away from the control unit. Such a solution eliminates to need to use cables with large cross sections to connect the control unit and the valve. -
Page 17: Ecoalpa Led2 Control Unit
www.atestgaz.pl EcoAlpa LED2 Control Unit Figure 8: A connection example - EcoAlpa LED2 s. 17|28 User Manual: POD-017-ENG R01... -
Page 18: Ecoalpa P17 230 V Control Unit
www.atestgaz.pl EcoAlpa P17 230 V Control Unit Figure 9: A connection example - EcoAlpa P17 230V s. 18|28 User Manual: POD-017-ENG R01... -
Page 19: Ecoalpa P17 Xef1212 Control Unit
www.atestgaz.pl EcoAlpa P17 XEF1212 Control Unit Figure 10: A connection example - EcoAlpa P17 XEF1212 s. 19|28 User Manual: POD-017-ENG R01... -
Page 20: Ecoalpa P17 Xef1240 Control Unit
www.atestgaz.pl EcoAlpa P17 XEF1240 Control Unit Figure 11: A connection example - EcoAlpa P17 XEF1240 s. 20|28 User Manual: POD-017-ENG R01... -
Page 21: Lifetime Cycle
www.atestgaz.pl Lifetime cycle Transportation The device can be shipped in the same way as new equipment of that type. If the original package or another protecting means (e.g. corks) is unavailable the conveyed equipment must be secured against shocks, vibrations or moisture by means of adequate methods and material at the own responsibility of the sender. -
Page 22: Table 15: Selection Of Cables For Connections Between Gas Detectors And A Control Unit
www.atestgaz.pl Correct cable routing Incorrect cable routing Figure 12: Example of cable connection to the device 9.2.1 Connection of gas detector to a control unit Detectors must be connected to a control unit by means of three-core cables terminated at appropriate contacts. -
Page 23: Unit
www.atestgaz.pl 9.2.3 Valve connection Designers of the wiring for connection of the valve controller to the shutoff valve must pay particular attention to appropriate selection of cables so that the maximum permissible resistance allowed for connection line is not exceeded (0.2 Ω for ball or flap valves and 0.5 Ω for poppet valve). Please keep in mind that the total length of conductors is twice more than the cable length. -
Page 24: Start Up
www.atestgaz.pl 9.2.4 Connection of an external alarm signal An external alarm signal must be connected to the assigned inputs by means of a toggle voltage free switch. The alarm shall be sensed as active when the S1 and S2 contacts are open (see Figure 13). No alarm External alarm active Figure 13: Status of contacts for a switch connected to the inputs for an external alarm signal... -
Page 25: Troubleshooting
www.atestgaz.pl Troubleshooting 9.5.1 Self-test functionalities The EcoAlpa Control Unit offers basic self-test functions that enable: monitoring of communication lines and detection of line breaks, verification of connections with the 12V valve and the ZMZ module with detection of the following faults: •... -
Page 26: Utilization
www.atestgaz.pl The foregoing tests can be carried out by a trained employee of the user. Any irregularities revealed during tests and possible doubts with regard to technical condition of equipment must be immediately reported to the system manufacturer. The EcoAlpa control unit automatically reminds that the foregoing tests are required. -
Page 27: Technical Specification
www.atestgaz.pl Technical specification Power supply • Voltage Vcc 230 V ~ ± 10% • Power 10 W Environment In operation Storage • Ambient temperatures 0 – 40 0 – 40 • Humidity 10 – 90 % long term 30 – 90 % long term 0 –... -
Page 28: List Of Consumables
www.atestgaz.pl Cable glands • Cable diameter range 5 – 10 mm • Number of glands Cross-section of wires for clamping terminals 1 – 2.5 mm Cross-section of wires for the 1.5 – 4 mm valve connector Enclosure material Lifetime 10 years Mandatory periodic inspection Every year Lifetime of consumables... - Page 29 EU Declaration of Conformity Atest Gaz A. M. Pachole sp. j. declares with full responsibility, that the product: (Product description) (Trade name) (Type identifier or Product code) Control Unit EcoAlpa PW-054 complies with the following Directives and Standards: in relation to Directive 2014/30/EU – on the harmonisation of the laws of the Member States relating to electromagnetic compatibility: •...
