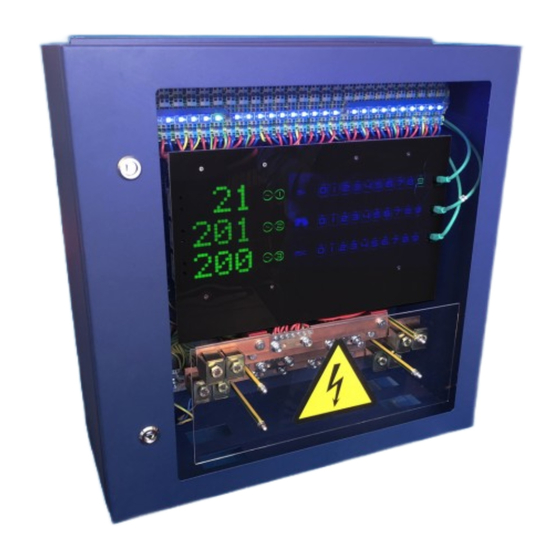

- Page 1 Resilient Power Control Module RPCM Quick Install Guide For models: RPCM 3x250, RPCM DELTA Version 201907121532...
- Page 2 Bon voyage! We hope you enjoy it! RCNTEC Team 2. General review: Models RPCM 3x250 and RPCM DELTA are designed for installation with 3 (three) phase input power lines.
- Page 3 3. Main Elements of RPCM 3x250 and RPCM DELTA Fig. 2. Main elements. Legend: 1 — terminal block for 90 ports (3 connections for 6 — RPCM unit number; each of 30 outlets); 7 — outlets indicators; 2 — LED indicators outputs (30 indicators per 30 8 —...
- Page 4 4. Power Connection for RPCM 3x250 and RPCM DELTA Power Connection 3x250 RPCM 3x250 connections should be made strictly according to the purpose of the terminals. The assignment of the terminals for connecting the RPCM 3x250 is shown in Fig. 3. IMPORTANT! The RPCM 3x250 model must be connected in the WYE mode, that is, there comes 3 phase wires and neutral, as well as a protective conductor (protective ground).
- Page 5 5. Consumers Connection to RPCM 3x250 and RPCM DELTA There is a terminal block with LED outlets indicators at the top of the RPCM 3x250 and RPCM DELTA. The color marking is used to recognize outgoing conductors. For RPCM 3x250: brown, black or grey color —...
- Page 6 6. Connecting via Web Interface This type of control is based on use of application level protocols: HTTP/(HTTPS). Connection is performed through an Internet browser via standard port 80. The IP address or domain name of the device registered in DNS is indicated in the browser field. For example: http://192.168.xxx.yyy is our device's IP.
-
Page 7: Connecting Via Ssh
