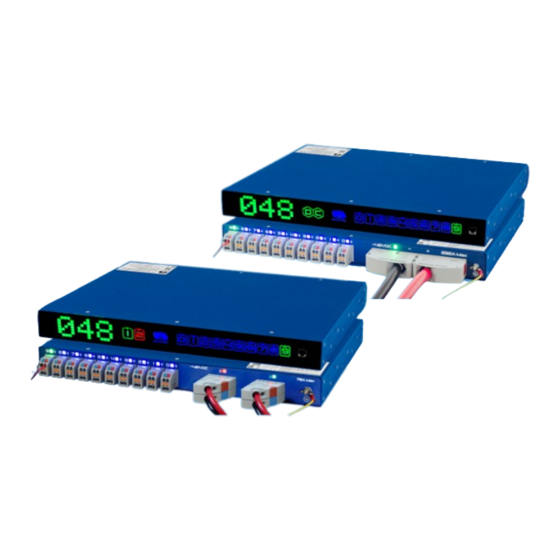

- Page 1 Resilient Power Control Module RPCM Quick Install Guide Models: RPCM DC ATS 76A RPCM DC 232A Version 201908210121...
- Page 2 We have made every effort to make RPCM useful both in enterprise environment behind firewall and in less strict environment with access to Internet, where all the power of the Cloud comes to your service.
- Page 3 Note. In order to protect outlets from short circuits, short circuit protection selectivity has to be ensured in the electrical design. For RPCM DC ATS 76A, RPCM DC 232A — short circuit protection engages at ~87.5A current on the outlet.
- Page 4 7 — Outlets 0-9 8 — LED outlet indicators 0-9 1 — Top control button 9 — Inputs terminals of RPCM DC ATS 76A 2 — Bottom control button 10 — Inputs indicators of RPCM DC ATS 76A 3 — System status display 11 —...
- Page 5 For this, the cable may, for example, be secured in front of the push-in clamp using a cable clip. Conductors Connection to Outlets of RPCM DC ATS 76А and RPCM DC 232А To connect the conductors to the terminals, use the terminals in the form of a push-in clamp.
- Page 6 Power and Grounding Requirements Voltage: 48V. Electric current level: <76А for RPCM DC ATS 76A, <232А for RPCM DC 232А. Grounding must be connected. Conductor requirements: RPCM DC ATS 76A — 1.5mm 14AWG min –...
- Page 7 After going to the specified webpage, the authentication window will open up where you can enter username and password, as well as select a different language for the interface. Then you will be sent to RPCM’s main web interface window - the Dashboard, where general information is provided in addition to system controls.
-
Page 8: Connecting Via Ssh
Type 'help' to get suggestions DobriyVolk [192.168.xx.zz] 0 rpcmadmin > Fig. 10. An example of the console screen when logging in via SSH to the RPCM DC ATS 76A Contacts: Feedback: http://rcntec.com/feedback http://rpcm.pro Tel: +7 (495) 009 87 87, +7 (800) 302 87 87...
