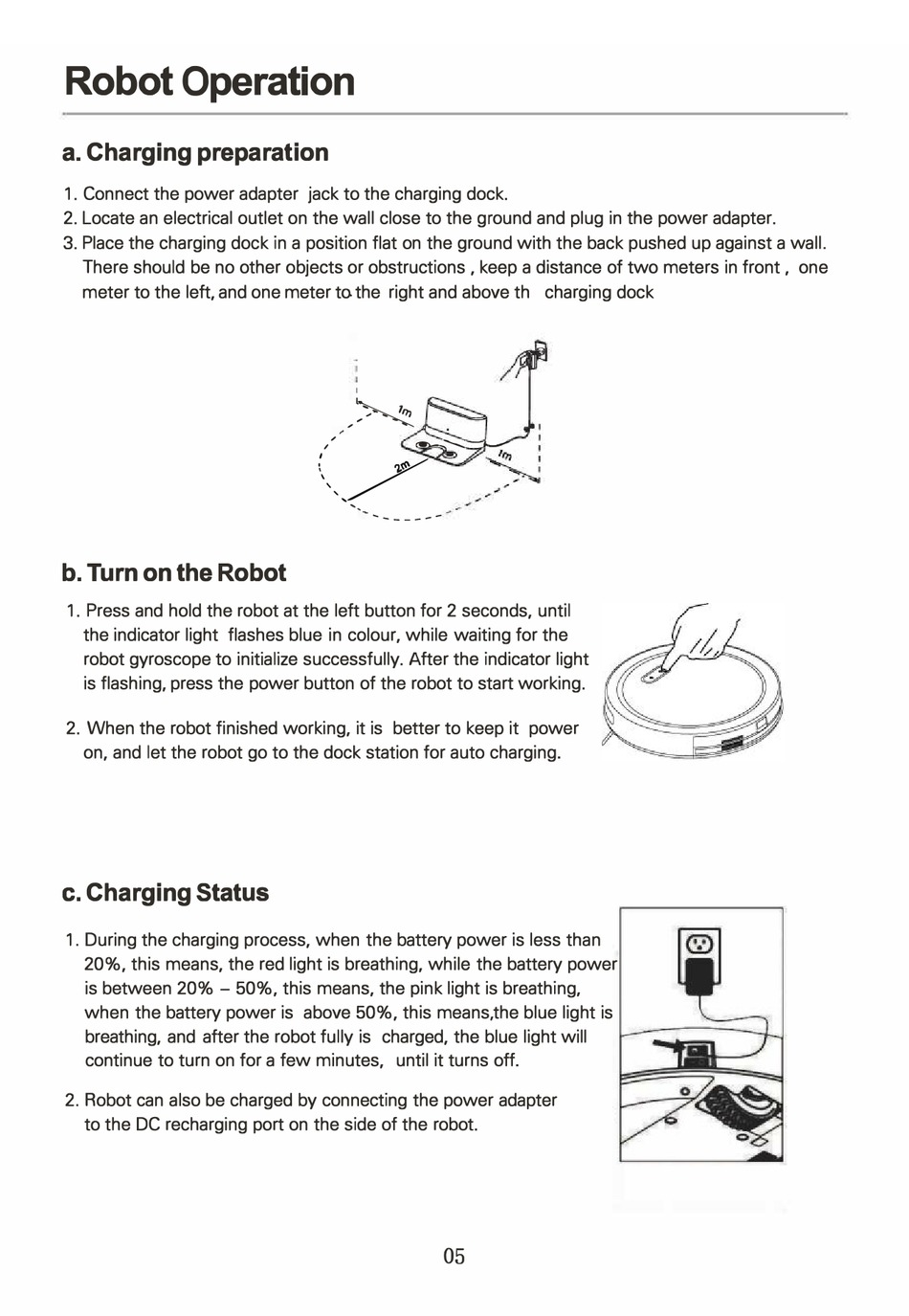

Robot Operation

a. Charging preparation
1. Connect the power adapter jack to the charging dock.
2. Locate an electrical outlet on the wall close to the ground and plug in the power adapter.
3. Place the charging dock in a position flat on the ground with the back pushed up against a wall.
There should be no other objects or obstructions , keep a distance of two meters in front , one
meter to the left, and one meter to the right and above th charging dock
b. Turn on the Robot
1. Press and hold the robot at the left button for 2 seconds, until
the indicator light flashes blue in colour, while waiting for the
robot gyroscope to initialize successfully. After the indicator light
is flashing, press the power button of the robot to start working.
2. When the robot finished working, it is better to keep it power
on, and let the robot go to the dock station for auto charging.
c. Charging Status
1. During the charging process, when the battery power is less than
20%, this means, the red light is breathing, while the battery power
is between 20% - 50%, this means, the pink light is breathing,
when the battery power is above 50%, this means.the blue light is
breathing, and after the robot fully is charged, the blue light will
continue to turn on for a few minutes, until it turns off.
2. Robot can also be charged by connecting the power adapter
to the DC recharging port on the side of the robot.
'
/�
