Summary of Contents for MyGenie XSonic

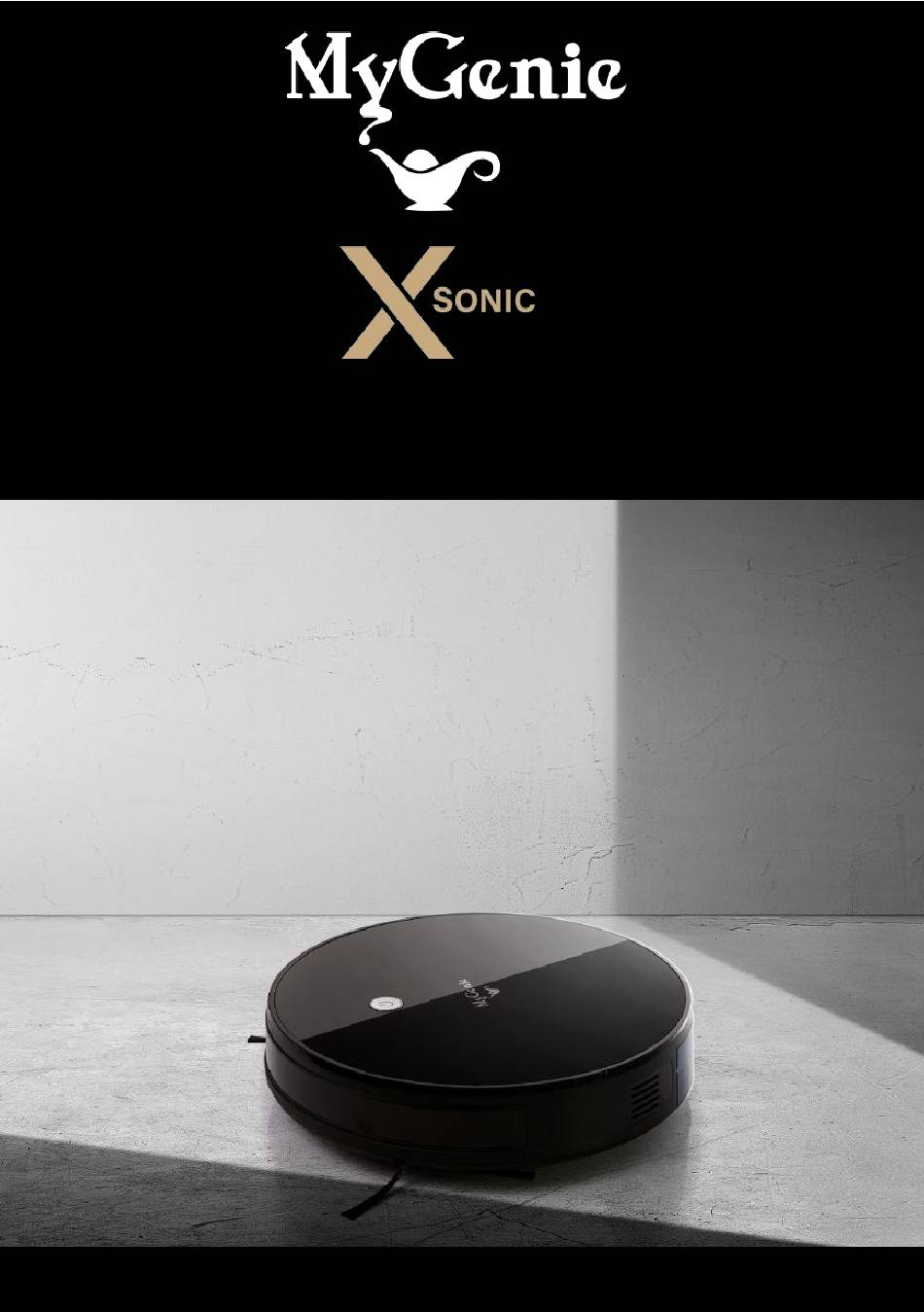

- Page 1 Instruction Manual Thank you for purchasing this product. This product has been made to high quality standards and is guaranteed for domestic use against manufacturing faults for a period of 12 months from date of purchase. For correct usage, read these instructions carefully.
-
Page 2: Table Of Contents
Table of Contents 1.Safety Regulations 2.Product Composition 2.1 Component Name 2.2 Technical Parameter 3.Product Composition 3.1 Considerations 3.2 Rapid Operations 3.3 Mode Selection 3.4 Use of Water Permeable Rag 3.5 Roller Brush Assembly 4.Maintenance 4.1 Dust Box and Filter 4.2 Water Tank Assembly 4.3 Rolling Brush and Side Brushes 4.4 Other Assembly 5.Light Effect and Alarm Tips... -
Page 3: Safety Regulations
1.Safety Regulations When using the product, please keep your vigilance and follow below information. Please read the manual carefully before using the product. Please keep instruction. 1 ) Products cannot be used by children under 8 years of age or people with mental disabilities. If you need to use it, please do so under the supervision of a guardian. - Page 4 1.Safety Regulations 17) Do not place items at the suction outlet. Do not use product when suction is blocked. Clean dust, cotton wool, hair at the suction port to ensure smooth air circulation at the suction port. 18) Use the power cord carefully to avoid damage. Do not use the power cord to drag or pull the product and the product charging stand.
-
Page 5: Product Composition
2.Product Composition 2.1 Assembly Name ► Master Key (Start or Pause) L ower Vision Sensor Universal Wheel ---- �- -- Charg ing Pole Piece - -- ---=�B�� ��ir:::::'1� ��:-- -- - Left Brush Right Brush Dust Box / Water Tank _..,.��... - Page 6 2.Product Composition ► Charging Stand Assembly � - Indicator Light - - Power Adapter � - - - Power Adapter Slots ► Remote Control - +-+----11----- Screen Forward --- +---1--:==:::::;- - � Setting time / Schedule - --- ---H-+--4,!;!V Left-----11--1-+;n Right Sto p/ Sta rt - -- ---ir- --r- - ----;r;...
- Page 7 2.Product Composition ► Dust Box Primary Filter-- - - � ��:"'51 - Efficient Bracket Lower Cover Filter Spon g e - - Dust Box Upper Cover ► Water Permeable Rag Assembly � - = = = =-- � W ater R a g -...
- Page 8 2.Product Composition 2.2 Technical Parameters Master Working Voltage: 1 0.89 V Power Rating: 20W Charging Stand Rated Input Voltage: 19 V Rated output current: 0.6A Battery and Specifications Lithium Battery 2600mAh Output parameter 100 -240V ~50/60HZ Adapter Input param eter 19V DC/0.6A...
-
Page 9: Product Composition
3.Product Composition 3.1 Considerations Please refer to the following guidelines to check the cleaning area before the turning on the unit for a more efficient clean. Please roll the carpet tassels or work on Power lines and other debris scattered on the •... -
Page 10: Rapid Operations
3.Product Composition 3.2 Rapid Operation Charging Preparation D Connect the adapter to the charging stand. Place the charging stand flat against the wall. Do not place objects in the left and right 1 M and the front 2M, and do not have objects with strong reflection surfaces such as mirrors. Place the charging stand Connect the power supply fJ Install the Side Brushes. - Page 11 3.Product Composition Start to charge. D Turn on the Master. Tum on the side power switch, "I" is the tum on, "O" is the tum off. After the master finishes working, it is recommended not to shut down; keep the master in a state of charge so that it can perform its next job better.
- Page 12 3.Product Composition Start Cleaning Start the Automatic Cleaning Mode with the master's @ key or remote control ®key nnnn l!lll!l j OU LJ LJ Before starting the mode, make sure that the outer ring of the @ key is red/blue and the master is in the state of being awakened.
-
Page 13: Mode Selection
3.Product Composition 3.3 Mode Selection In order to adapt to different ground conditions and achieve deeper clean, this product has a variety of cleaning modes, which can be selected by remote control as needed. The remote control can switch any mode directly. Before starting the mode, make sure that the outer ring of the @ key is red/blue and the master is in the state of being awake. - Page 14 3.Product Composition Turbo Mode Robot will increase suction. Suitable for a very dirty floor or a thick carpet. Qrurbo mode cannot be accessed while using the mop cleaning method. Time and Date Settings 1. Programming the Time and Date a . Settings of current weekday: In the standby mode, press the "...
-
Page 15: Use Of Water Permeable Rag
3.Product Composition 3.4 Use of Water Permeable Rag This product is equipped with a water tank assembly. After the cleaning work is completed, if there is a demand for mopping, the dust box can be replaced with a water tank assembly. For the cleaning method, please refer to the [Maintenance] section in this manual. -
Page 16: Roller Brush Assembly
3.Product Composition 3.5Roller Brush Assembly Assembly Choices Roller brush assembly : Scratch the floor, sweep effectively. set the roller brush and cover the board and then press Set roller brush assembly : to lock. >>... -
Page 17: Maintenance
4.Maintance 4.1 Dust Box and Filter When cleaning and maintaining the master and its accessories, turn off the master and unplug the charging stand. ■ Remove the dust box, open the dust box cover, and clean the garbage. STEP ■ Remove dust filter. -
Page 18: Water Tank Assembly
4.Maintance 4.2 Water Tank Assembly Cleaning of Water Rag ■ Remove: After the mopping is completed, remove the water tank assembly, and remove the water permeable rag. STEP ■ Maintenance: Rinse and dry the water rag STEP ■ Cleaning the Water Reservoir Remove: After mopping the floor, remove the water Maintenance: Dry the reservoir and allow it to dry. -
Page 19: Rolling Brush And Side Brushes
4.Maintance 4.3 Rolling Brush, Side Brushes ■ Cleaning Rolling Brush Remove the rolling brush cover plate, remove the rolling brush, cut off the hair round on the rolling brush, and facilitate cleaning. STEP ■ Cleaning Side Brushes Pull out the side brush and wipe it with a clean rag. STEP... -
Page 20: Other Assembly
4.Maintance 4.4 Other Assembly ■ ■ Clean the universal wheel to Clear down the sensor to ensure reduce hair entangled . the sensitivity of the sensor. ■ To clean the charging pole pieces, use a dry rag to clean the charging poles on the bottom of the master or the charging stand. -
Page 21: Light Effect And Alarm Tips
5.Lighting Effects And Alarm Tips 5.1 Lighting Effects Cleaner status AUTO Disolav Status Cleaner stop cleaning Blue lamp light on Start auto charQe Purple &blue lamp liQht on Start to Spiral clean Blue lamp light on Blue lamo liaht on Start to wall follow cleanina Start recharQinQ Blue lamp flash... -
Page 22: Alarm Tips
5 Lighting Effects And Alarm Tips 5.2Alarm Tips When the host fails, the red light of the outer ring of the host key flashes, and the buzzer sounds of different lengths will be emitted. Refer to the following table to check the cause of the fault: Cleaner status AUTO Dis la Status Solution... -
Page 23: Faq
6.FAQ If the following problems occur during the use of the product, you can solve it yourself by checking the queries. Probable Reasons Solution Cause of Falli.n, Make sure that the master is fully docked The master is not in full contact with the Master charging pole of the charging stand. - Page 24 Consumer Warranty MyGenie would like you to enjoy your new purchase. This warranty card is provided to ensure that you get satisfaction. Our goods come with guarantees that cannot be excluded under Australian Consumer Law. You are entitled to a replacement or refund for a major failure for any other reasonably foreseeable loss or damage.
