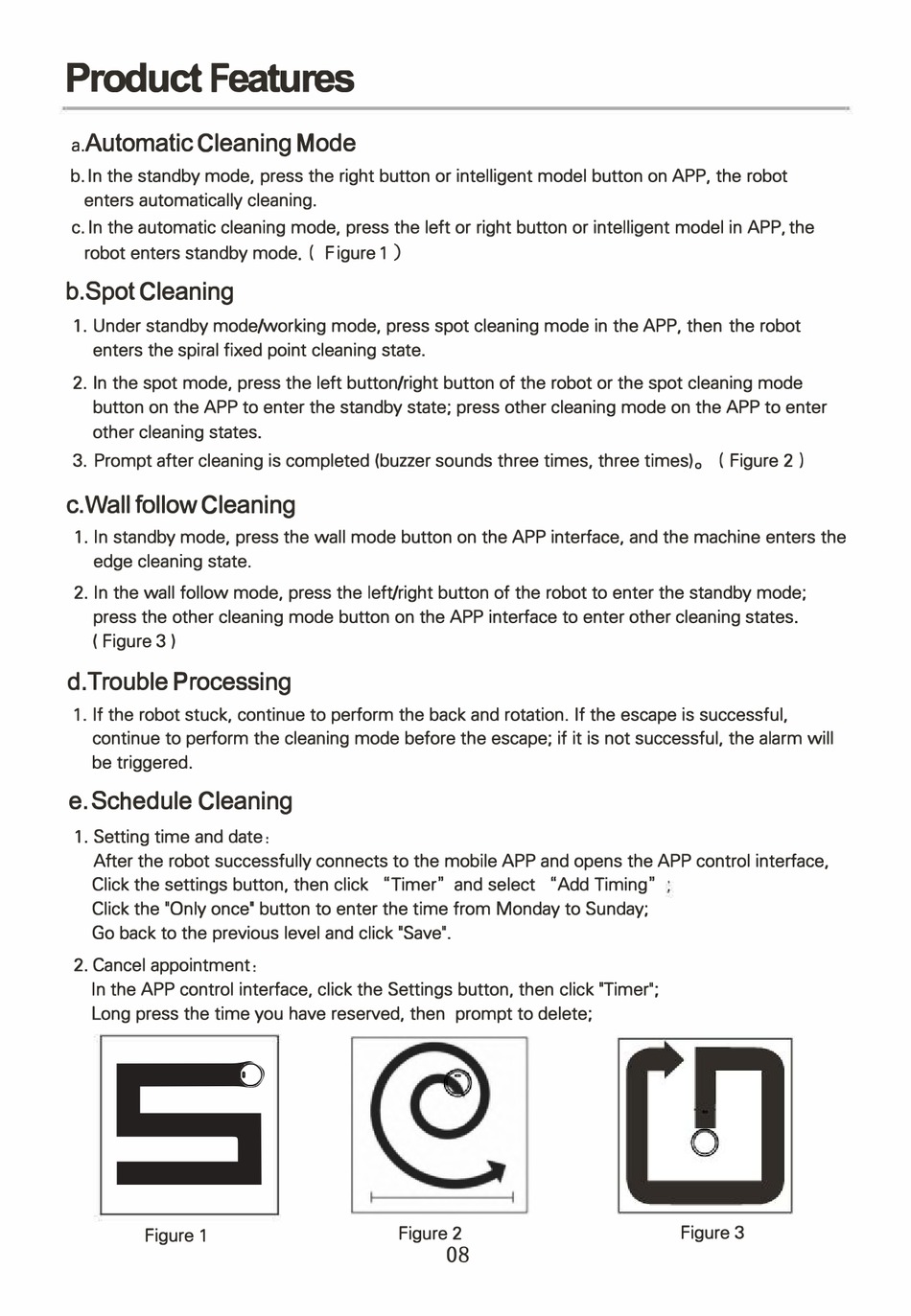

Product Features

a.Automatic Cleaning Mode
b. In the standby mode, press the right button or intelligent model button on APP, the robot
enters automatically cleaning.
c. In the automatic cleaning mode, press the left or right button or intelligent model in APP, the
robot enters standby mode. ( F igure 1 )
b.Spot Cleaning
Under standby mode/Working mode, press spot cleaning mode in the APP, then the robot
1.
enters the spiral fixed point cleaning state.
2. In the spot mode, press the left button/right button of the robot or the spot cleaning mode
button on the APP to enter the standby state; press other cleaning mode on the APP to enter
other cleaning states.
3. Prompt after cleaning is completed (buzzer sounds three times, three times)
c. Wall follow Cleaning
In standby mode, press the wall mode button on the APP interface, and the machine enters the
1.
edge cleaning state.
2. In the wall follow mode, press the left/right button of the robot to enter the standby mode;
press the other cleaning mode button on the APP interface to enter other cleaning states.
( Figure 3 )
d.Trouble Processing
1. If the robot stuck, continue to perform the back and rotation. If the escape is successful,
continue to perform the cleaning mode before the escape; if it is not successful, the alarm will
be triggered.
e. Schedule Cleaning
Setting time and date:
1.
After the robot successfully connects to the mobile APP and opens the APP control interface,
Click the settings button, then click "Timer" and select "Add Timing"
Click the "Only once' button to enter the time from Monday to Sunday;
Go back to the previous level and click "Save".
Cancel appointment:
2.
In the APP control interface, click the Settings button, then click "Timer";
Long press the time you have reserved, then prompt to delete;
5
Figure 1
Figure 2
08
( Figure 2 )
o
Figure 3
