Summary of Contents for Autojack EGIMIG-155

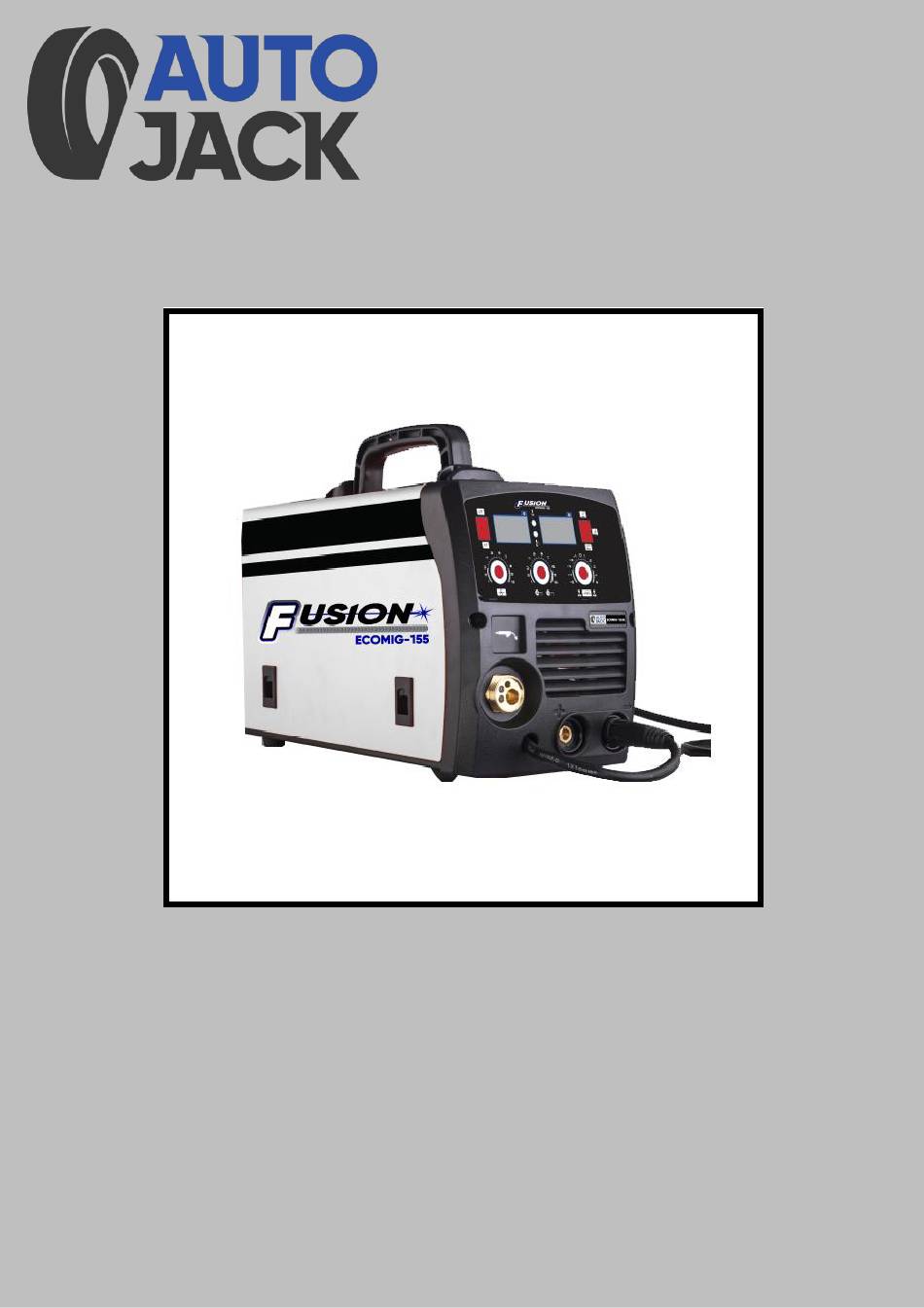

- Page 1 SAFETY AND OPERATING MANUAL ECO MIG Welder ECOMIG-155/205 ORIGINAL INSTRUCTIONS...
- Page 2 Welcome to Autojack! Dear Customer, Congratulations on your purchase. Before using this product for the first time, please be sure to read these instructions for use. They provide you with all the information necessary for using the product safely and to ensure its long service life.
-
Page 3: Table Of Contents
TABLE OF CONTENTS General Power Tool Safety Warnings Symbol Chart Technical Specification/Package Contents Operation Maintenance Troubleshooting Autojack Guarantee Declaration of Conformity Machine Schematic Wiring Diagram ECOMIG-155/205... -
Page 4: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS d) Do not abuse the cord. Never use the cord for WARNING, please read all safety carrying, pulling or unplugging the power tool. warnings and instructions. Keep cord away from heat, oil, sharp edges or Failure to follow the warnings and instructions moving parts. - Page 5 GENERAL POWER TOOL SAFETY WARNINGS e) Do not overreach. Keep proper footing and e) Maintain power tools. Check for balance at all times. This enables better misalignment or binding of moving control of the power tool in unexpected parts, breakage of parts and any other situations.
- Page 6 GENERAL POWER TOOL SAFETY WARNINGS e) Wear insulating gloves on both hands for 7 Additional Safety welding. These offer protection from electric Instructions for welders shocks (idling voltage in the welding circuit), harmful radiation (Heat and UV radiation) and Welders have many sources of danger. It from glowing metal and slag spatter.
- Page 7 GENERAL POWER TOOL SAFETY WARNINGS l) Special regulations apply in areas where 8. Additional Safety Instructions for there is a potential risk of fire and/or Constricted and wet areas explosion. m) Welds that are exposed to large stresses When working in constricted, wet or and must comply with safety requirements hot areas, use insulating supports and may only be completed by specially trained...
- Page 8 GENERAL POWER TOOL SAFETY WARNINGS 9. Additional Safety Instructions for safety 11. Using an Extension Cable clothing a) If an extension cable is required, use an a) While working, the welder must protect his approved triple core extension cable entire body from radiation and burns by wearing suitable for the power input of the tool.
-
Page 9: Symbol Chart
SYMBOL CHART ECOMIG-155/205... -
Page 10: Technical Specification/Package Contents
TECHNICAL SPECIFICATION SPECIFICATION ECOMIG-155 ECOMIG-205 Mains Voltage 230V 230V Rated Max Supply Current 24A Rated Input Capacitance 5.52 KVA 6.67 KVA No-load Voltage 62 V 62 V MIG Rated Working 21 V 23 V Voltage MMA Rated Working 24.8 V 26.4 V Voltage MIG Welding Current... -
Page 11: Operation
OPERATION To begin welding, you must first connect your welder up to a 230V supply using the plug provided and plug the torch in to the torch connection on front panel. The first image below shows where the input is for the mains supply. Next, you will need to install the welding wire if applicable, to do this, you must lift the side panel and locate the wire feed motor. -
Page 12: Maintenance
MAINTENANCE AND SERVICE The following points will aid with keeping your MIG welder in good condition to ensure peak performance: Make sure that torch consumables are checked and replaced regularly Keep the welder in a dry place when not in use ... -
Page 13: Troubleshooting
TROUBLESHOOTING Number Fault Failure cause Troubleshooting Poor ventilation of power supply leads Improve ventilation to overheating protection Excessive ambient Automatic recovery Yellow Light On temperature after temperature drop Exceeded rated duty Replace potentiometer cycle (knob) Voltage too Switch off, check mains low/high (+-15%) supply and restart Motor fan not... -
Page 14: Autojack Guarantee
1.2.3 If asked to do so by Autojack or its Authorised Dealer, you return the product at your own cost to Autojack’s or the supplying Authorised Dealer’s Premises,... - Page 15 A good purchase to Autojack. If you include a Authorised Dealer should be able to contact number with this it will speed resolve the majority of these issues your claim up.
- Page 16 This guarantee applies to all product 3.1 We only support products for purchased from an Authorised Dealer of Autojack within the United Kingdom. Terms domestic and private use. You agree of guarantee may vary in other countries. not to use the product for any...
-
Page 17: Declaration Of Conformity
DECLARATION OF CONFORMITY CE DECLARATION OF CONFORMITY Toolsave Unit C, Manders Ind Est., Old Heath Road, Wolverhampton, WV1 2RP. Declares that the MIG Welder (ECOMIG-155/205) is in compliance with the regulations included in the Directives:2006/42/EC EC DECLARATION OF CONFORMITY Certificate for EC-type examination delivered by AV Technology Ltd. -
Page 18: Machine Schematic
MACHINE SCHEMATIC 1. Pos/Neg Terminal 10. Door Lock 19. Rectifier PCB 2. Front Panel 11. Wire Feed Door 20. Shell 3. Front Plate 12. Cooling Fan 21. Handle 4. Digital Display 13. Fan Cover 22. Middle Plate 2 5. Middle Plate 14. -
Page 19: Wiring Diagram
Wiring Diagram ECOMIG-155/205...
