Summary of Contents for Autojack ECOCUT-40

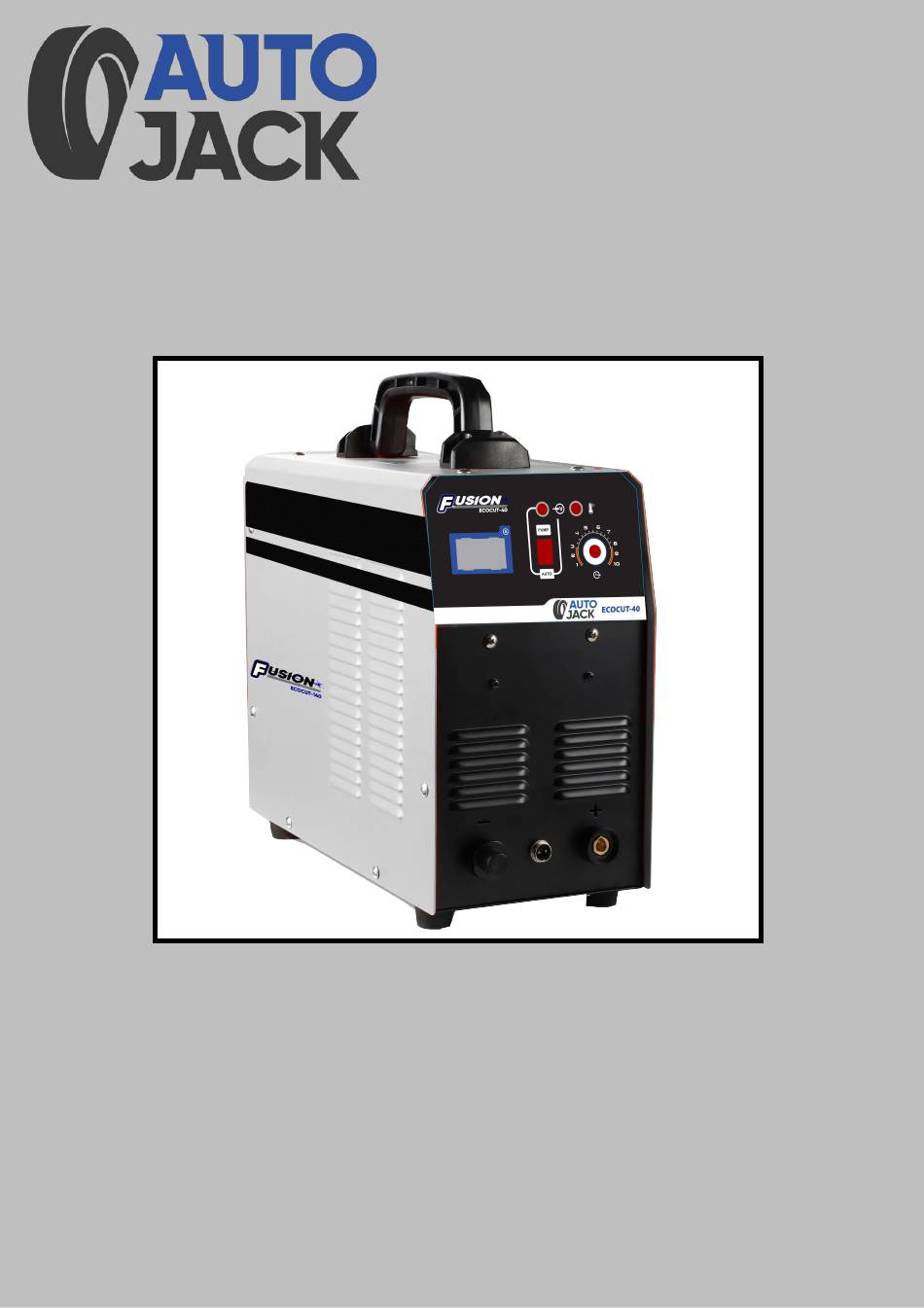

- Page 1 SAFETY AND OPERATING MANUAL ECOCUT-40 Plasma Cutter ORIGINAL INSTRUCTIONS...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Welcome to Autojack! Dear Customer, Congratulations on your purchase. Before using this product for the first time, please be sure to read these instructions for use. They provide you with all the information necessary for using the product safely and to ensure its long service life. -
Page 3: General Power Tool Safety Warnings
Do not expose power tools to rain or wet result in personal injury. conditions. Water entering a power tool will increase the risk of electric shock. ECOCUT-40... - Page 4 Power tools are dangerous in the hands of untrained users. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury or fire ECOCUT-40...
- Page 5 UV radiation) and from glowing metal and slag spatter. f) Wear firm, insulated footwear. Your shoes should also protect you in wet conditions. Open- toed footwear is not suitable since falling droplets of glowing metal will cause burns ECOCUT-40...
- Page 6 (for earthing contact sockets max. 16 A fuses or 16 A circuit breakers). The use of too high a fuse may result in the cable burning and fire damage to the building. ECOCUT-40...
- Page 7 Do not store or use the equipment in wet conditions or in the rain. Use the equipment only indoors. ECOCUT-40...
-
Page 8: Symbols And Cable Rating Chart
SYMBOLS AND POWER RATING CHART ECOCUT-40... -
Page 9: Technical Specification/Package Contents
TECHNICAL SPECIFICATION SPECIFICATION ECOCUT-40 Mains Voltage 230v / 50Hz Rated Max Supply Current 16A Duty Cycle No Load Voltage 300V Current Range 15-40A Input Current 28.8A Input Capacity 6.3KVA Max Cutting Thickness 15mm Air Pressure 0.15-0.25Mpa Rated Output Voltage Protection Class... -
Page 10: Operation
You should be roughly 2mm away from the workpiece to ensure minimal damage to the consumables. The image above shows how the electrode and nozzle should look before and after. ECOCUT-40... -
Page 11: Maintenance And Service
Cable is too thin Replace with a larger getting hot diameter cable The socket is loose Remove and retighten Not cutting Current too low Increase current through Cutting too fast Reduce speed workpiece Electrode or nozzle Change electrode or burnt out nozzle ECOCUT-40... - Page 12 1.2.3 If asked to do so by Autojack or its Authorised Dealer, you return the product at your own cost to Autojack’s or the supplying Authorised Dealer’s Premises,...
-
Page 13: Autojack Guarantee
A good purchase to Autojack. If you include a Authorised Dealer should be able to contact number with this it will speed resolve the majority of these issues your claim up. - Page 14 4. Notice This guarantee applies to all product purchased from an Authorised Dealer of Autojack within the United Kingdom. Terms of guarantee may vary in other countries. ECOCUT-40...
-
Page 15: Declaration Of Conformity
Toolsave Unit C, Manders Ind Est., Old Heath Road, Wolverhampton, WV1 2RP. Declares that the Plasma Cutter (ECOCUT-40) is in compliance with the regulations included in the Directives:2006/42/EC EC DECLARATION OF CONFORMITY Certificate for EC-type examination delivered by AV Technology Ltd. Unit 2 Easter Court,... -
Page 16: Machine Schematic
7. Knob 16. Fan Cover 25. EMC PCB 8. Socket Housing 17. Power Cord 9. Positive Socket 18. Power Switch 10. Test Switch 11. Current Display Plasma Torch 1. Casting Rod 2. Electrode 3. Splitter 4. Nozzle 5. Ceramic Shield ECOCUT-40... -
Page 17: Wiring Diagram
Wiring Diagram ECOCUT-40...
