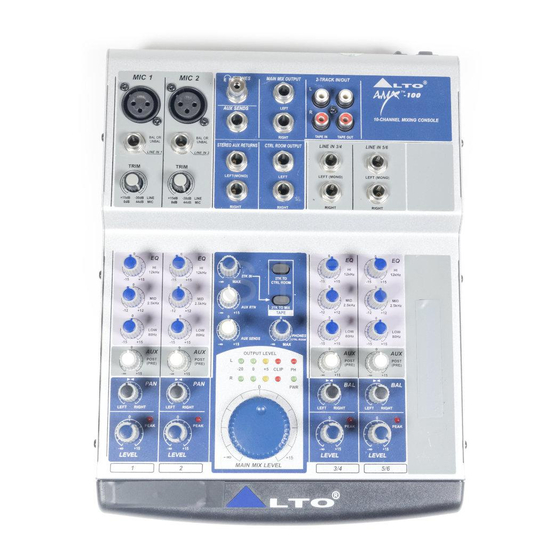

Alto AMX-100 MKII Service Manual

Hide thumbs Also See for AMX-100 MKII:

Advertisement

Quick Links

Download this manual
Service Manual
MODEL: AMX-100 MKII/AMX-100FX MKII
www.altoproaudio.com
Version: .1

Advertisement

loading
Need help?

Need help?

Do you have a question about the AMX-100 MKII and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alto AMX-100 MKII

Summary of Contents for Alto AMX-100 MKII

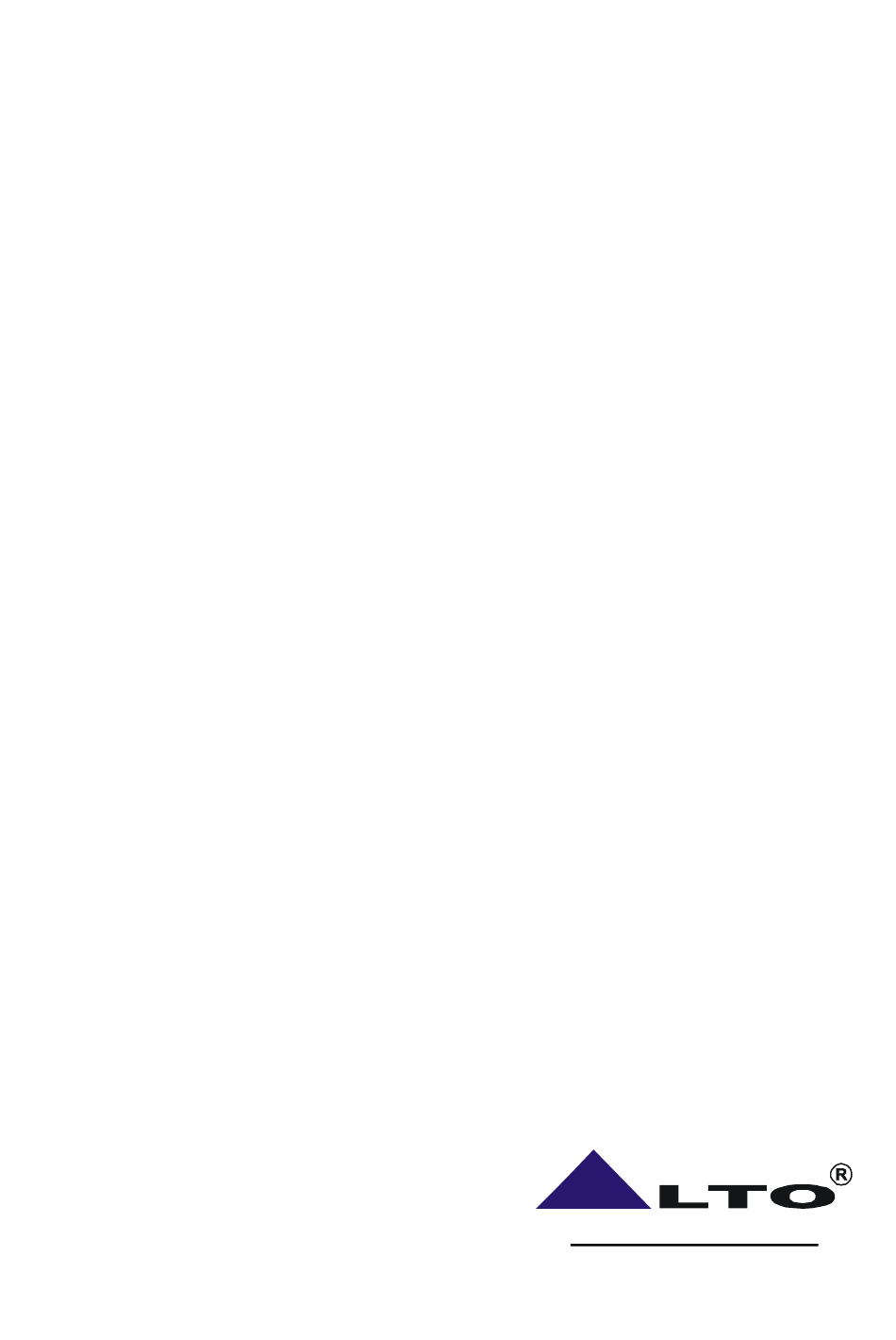

  • Page 1 Service Manual MODEL: AMX-100 MKII/AMX-100FX MKII www.altoproaudio.com Version: .1...

  • Page 2: Table Of Contents

    CONTENTS 1. Introduction........................1 2. Specification........................2 3. Block Diagram......................3 4. Schematic Diagram....................4 5. PCB Layout.......................9 6. Wiring Diagram......................13 7. Exploded views & Mechanical Parts List..............14 8. BOM List........................17...

  • Page 3: Introduction

    1. Introduction AMX-100MKII/100FXMKII compact mixer with digital ▲LTO multi-effect is just one of the many products that a talented, multinational ▲LTO Team of Audio Engineers and Musicians have developed with their great passion for music. AMX-100MKII/100FXMKII is a remarkable compact mixing desk that doesn't find many equals in the market today.

  • Page 4: Specification

    AUX Sends max out +22dBu USA/Canada 100 120V~, 60Hz Main voltage USA/ Europe 210- 240V~,50Hz Power supply (AC/AC U.K./Austrilia 240V~,50Hz Adaptor) 11 watts( for AMX-100 MKII ) Power Consumption 15 watts(forAMX-100FX MKII) Dimension(W*D*H) 270mm*310mm*34/45mm(7.79''*8.95''*1.01''/1.30'') Physical Net weight 3.0Kg(6.60lb) Shipping weight 3.6Kg(7.94lb)

  • Page 5: Block Diagram

    3. Block Diagram --- 3 ---...

  • Page 6: Schematic Diagram

    4. Schematic Diagram --- 4 ---...
  • Page 7 --- 5 ---...
  • Page 8 --- 6 ---...
  • Page 9 --- 7 ---...
  • Page 10 --- 8 ---...

  • Page 11: Pcb Layout

    5. PCB Layout PCB : 313123/2 Top Overlay --- 9 ---...
  • Page 12 AMX-100MKII/100 FX MKII BOTTOM LAYER --- 10 ---...
  • Page 13 AMX-100MKII/100FX MKII TOP LAYER --- 11 ---...
  • Page 14 --- 12 ---...

  • Page 15: Wiring Diagram

    6. Wiring Diagram AMX-100/AMX-1全機配線圖 AMX-100 MKII/100FX MKII --- 13 ---...

  • Page 16: Exploded Views & Mechanical Parts List

    7. Exploded Views & Mechanical Parts List MODEL No: AMX-100FX MKII --- 14 ---...
  • Page 17 MODEL No: AMX-100 MKII --- 15 ---...
  • Page 18 PC board P-FX-DSP-DIP 27 HK01409 PC board P-313123-DIP(AMX-140FX) 28 ME00015 3m/m 29 NI02082 knob φ10.5*18mm 30 MG00166 screw M3*10 ALTO AMX-100 MKII Part No Description Specification MA04530 panel AMX-100 ALTO MB03080 rear board AMX-120 HI00026 power switch RA12KKATOF 2P HI00171...

  • Page 19: Bom List

    8. BOM List AMX-100 MKII Part No Description Specification Insert location Remark MIXING CONSOLE AMX-100_ALTO_230V NI00826 knob φ12*18mm double color LEVEL NI00252 sleeve φ4*20mm NI00498 self-adhere foot cushion 12.7*7*6mm(SF-005) NI00218 cable tie ALT-102SB NF01655 instruction-RS-ACT AMX-100/100FX ALTO_V2.0 NI03063 handle AMX-100;100FX;120_V1.0...
  • Page 20 Part No Description Specification Insert location Remark 48 SD00077 integrated circuit-RS L7815CV(TO220)/(ST/MOROCCO) TR21 49 SD00079 integrated circuit L7915CV(TO220)/(ST) TR22 50 SB00043 transistor-RS-ACT TIP122(TO220)/(ST) TR23 51 SD00007 integrated circuit BA15218N(M5218L)(SIP8)/(ROHM) U22,U23 52 RC00727 potentiometer-RS Z10KΩXV09213YNPV30F914Z10K VR1,VR2 W50KΩ RV16A01-30-25F-W50K- 53 RC00369 potentiometer(A10K-41 stage) VR25 3F97 X3,X4,X5,X6,X7,X8,X9,X10,X11,X12,X1...
  • Page 21 Part No Description Specification Insert location Remark C6,C8,C9,C12,C13,C14,C27,C28,C29, C30,C31,C32,C33,C34,C35,C36,C38,C 22PF/50V C0G± 42,C43,C44,C45,C46,C106,C107,C108, 85 CI00051 SMD ceramic capacitor 0603 5%(C1608C0G1H220JT)/TDK C109,C110,C111,C112,C113,C116,C11 7,C118,C119,C120,C121,C122,C123,C 179,C180,C181,C183 47PF/50V C0G± 86 CI00055 SMD ceramic capacitor 0603 C4,C11 5%(C1608C0G1H470JT)/TDK C144,C145,C158,C159,C188,C189,C23 87 CI00059 SMD ceramic capacitor 0603 100PF/50V NPO ±5% 4,C235,C236,C237,C238,C239 88 CI00063 SMD ceramic capacitor 0603 470PF/50V NPO ±5﹪...
  • Page 22 Part No Description Specification Insert location Remark 122 RD00089 SMD fixed resistor 1/10W 2.7KΩ ±5% 0603 R178,R179 123 RD00287 SMD precise resistor 1/10W 6.34KΩ ±1% 0603 R253 R6,R7,R9,R13,R14,R25,R26,R31,R32, R35,R36,R39,R40,R41,R42,R43,R44,R 45,R47,R48,R49,R50,R51,R52,R53,R54 124 RD00214 SMD precise resistor 1/10W 10.0KΩ ±1% 0603 ,R55,R56,R57,R58,R59,R60,R61,R62,R 65,R66,R67,R70,R71,R72,R75,R76,R10 3,R261,R262 125 RD00469...
  • Page 23 AMX-100FX 21 NH00012 bond paper 0.04*1M 22 NI00015 membrane 0.04*1M 23 NF00061 assurance card-RS-C ALTO_V1.1 24 NE05004 label ALTO PF_V1.2 25 NH00334 cone paper 0.040*1m 26 NB02748 carton AMX-100;100FX;120_V1.0 27 NB02749 inner case-RS AMX-100/100FX ALTO_V1.0 28 NB02888 barrier AMX-100;120_V1.0...
  • Page 24 RLS4148 0.5A (LL-34) 78 SG00068 SMD integrated circuit 74HC14DT(SO14)/(PHI) 79 SG00410 SMD integrated circuit-RS-ACT IC41LV16256-35KG(SOJ40)/(ICSI) IC6 80 SG00166 SMD integrated circuit TY-2 ALTO(GMCODE:105022) 81 SG00147 SMD integrated circuit CHEF DSP(GMCODE:105022) 82 SG00037 SMD integrated circuit LD1117DT33C(TO252)/(ST) 83 HC00611 IC socket (SMD)
  • Page 25 Part No Description Specification Insert location Remark 100 SA00052 L.E.D φ3 round(green)long foot 26 LD8,LD9,LD10,LD11,LD12 LD1,LD2,LD3,LD4,LD7,LD15,LD16,LD 101 SA00053 L.E.D φ3 round(red)long foot 26mm 102 SA00054 L.E.D 3m/m round(yellow)long foot 26 LD13,LD14 LD1,LD2,LD3,LD4,LD7,LD8,LD9,LD10 103 NI01782 LED spacer support LEDS-11 11mm ,LD11,LD12,LD13,LD14,LD15,LD16,L 104 HI00161 relay RY-5W-K,5V...
  • Page 26 Part No Description Specification Insert location Remark R397,R398,R399,R400,R401,R402,R 146 RD00101 SMD fixed resistor 1/10W 10KΩ ±5% 0603 403,R404,R405,R406,R407,R408,R41 0,R411,R412,R413,R414 147 RD00111 SMD fixed resistor 1/10W 47KΩ ±5% 0603 R415 148 RD00124 SMD fixed resistor 1/10W 820KΩ ±5% 0603 R431 149 RD00125 SMD fixed resistor 1/10W 1.0MΩ...
  • Page 27 Part No Description Specification Insert location Remark C144,C145,C158,C159,C188,C189,C 187 CI00059 SMD ceramic capacitor 0603 100PF/50V NPO ±5% 234,C235,C236,C237,C238,C239 188 CI00063 SMD ceramic capacitor 0603 C1,C2,C3,C5,C7,C10 470PF/50V NPO ±5﹪ C185,C186,C138,C143,C146,C147,C 148,C149,C150,C151,C152,C153,C15 4,C157,C160,C161,C162,C165,C166, 189 CI00075 SMD ceramic capacitor 0603 0.1uF/50V Y5V +80,-20% C167,C168,C169,C170,C173,C174,C 175,C176,C177,C178,C182,C203,C20 4,C205,C206,C214,C291,C292,C299,...
  • Page 28 Part No Description Specification Insert location Remark R6,R7,R9,R13,R14,R25,R26,R31,R32 ,R35,R36,R39,R40,R41,R42,R43,R44, R45,R47,R48,R49,R50,R51,R52,R53, 224 RD00214 SMD precise resistor 1/10W 10.0KΩ ±1% 0603 R54,R55,R56,R57,R58,R59,R60,R61, R62,R65,R66,R67,R70,R71,R72,R75, R76,R103,R261,R262,R273,R274 225 RD00469 SMD precise resistor 1/10W 2.32KΩ ±1% 0603 R77,R78,R79,R80,R95,R96,R99,R100 226 RD00204 SMD precise resistor 1/10W 2.49KΩ ±1% 0603 R23,R24,R29,R30 R101,R102,R106,R107,R286,R287,R 227 RD00470...
