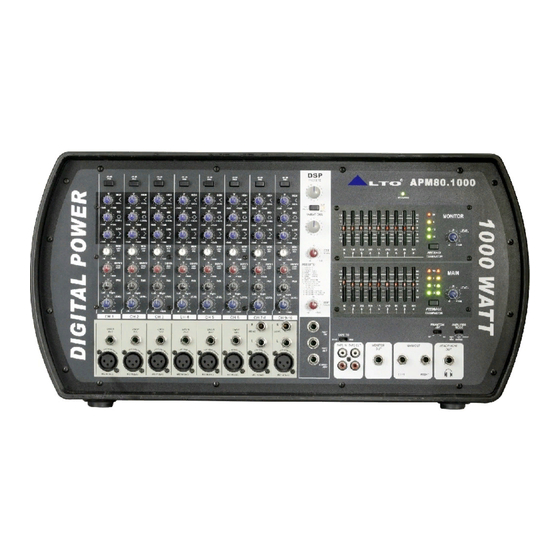

MODEL: APM80.1000/APM80.1500

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the APM80.1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alto APM80.1000

Summary of Contents for Alto APM80.1000

  • Page 1 MODEL: APM80.1000/APM80.1500...

  • Page 2: Table Of Contents

    CONTENT 1. INTRODUCTION……………………………………………………………………………..1 2. TECHNICAL SPECIFICATION……………………………………………………………..3 3. BLOCK DIAGRAM……………………………………………………………....4. SCHEMATIC DIAGRAM…………………………………………………………………….6 5. WIRING DIAGRAM…………………………………………………………………………13 6. PCB LAYOUT……………………………………………………………………………….14 7. TEST PROCEDURE…………………………………………………………....21 8. EXPLODED VIEW & MECHANICAL PARTS LIST…………………………………….28 9. BOM………………………………………………………………………………………….32...

  • Page 3: Introduction

    2 AUX sends for built-in or external effects, on-stage monitor mix, or headphone mixing 256 position multieffect 2-track recording IN/OUT (phono) Headphone output 2 500 watt EIAJ amplifiers (For APM80.1000) Output connector: 6.3 jack + 4 way-speakon - 1 -...
  • Page 4 APM80.1500 The APM80.1500 8-channel stereo powered mixer with DSP is designed for professional application. It provides the following features: Digital amplifier technology, offering high power and a very dynamic sound 9-band graphic EQ for MAIN / MONITOR Built-in feedback terminator 6 MIC/line input channels with gold plated XLRs and balanced LINE inputs 2 Stereo input channels with balanced TRS jacks Ultra-low noise discrete MIC preamps with +48V phantom power...

  • Page 5: Technical Specification

    2.TECHNICAL SPECIFICATION APM80.1000 Mono input channels Microphone input electronically balanced, discrete input configuration Frequency response 10Hz to 55kHz, + Distortion (THD & N) 0.006% at 4dBu, 1kHz Gain 50dB (MIC) SNR (Signal to Noise Ratio) >90dB Line input electronically balanced...
  • Page 6 APM80.1500 Mono input channels Microphone input electronically balanced, discrete input configuration Frequency response 10Hz to 55kHz, + Distortion (THD & N) 0.006% at 4dBu, 1kHz Gain 50dB (MIC) SNR (Signal to Noise Ratio) >90dB Line input electronically balanced Frequency response 10Hz to 55kHz, Distortion (THD &...

  • Page 7: Block Diagram

    3. BLOCK DIAGRAM APM80.1000/150 DIGITAL EFFECT MAIN R MAIN R MAIN L MAIN L DFX (DSP) DFX(DSP) MONITOR MONITOR 50Hz 50Hz 50Hz 100Hz 100Hz 100Hz 250Hz 250Hz 250Hz 500Hz 500Hz 500Hz 1KHz 1KHz 1KHz 2.5KHz 2.5KHz 2.5KHz 5KHz 5KHz 5KHz...

  • Page 8: Schematic Diagram

    4. SCHEMATIC DIAGRAM APM80.1000/1500 - 6 -...
  • Page 9 - 7 -...
  • Page 10 - 8 -...
  • Page 11 - 9 -...
  • Page 12 - 10 -...
  • Page 13 - 11 -...
  • Page 14 220R 1/ 2W 220R 1/ 2W - 12 -...

  • Page 15: Wiring Diagram

    5. WIRING DIAGRAM APM80.1000&APM80.1500 H K 07827 P- A PM 80_SPEA K ER - 13 -...

  • Page 16: Pcb Layout

    6. PCB LAYOUT - 14 -...
  • Page 17 - 15 -...
  • Page 18 - 16 -...
  • Page 19 - 17 -...
  • Page 20 - 18 -...
  • Page 21 - 19 -...
  • Page 22 - 20 -...

  • Page 23: Test Procedure

    2) 4 ohms high power loads 3) DVD player THE SETTING OF APM80.1000&APM80.1500: a) Set all the knobs to the center position; adjust the potentiometers to the 0 position. The PAD switch is springing, the DSP turns off and the phantom power turns on.
  • Page 24 OUT is equal to 0dBu and THD+N : <0.2%. Press the PAD switch for one time when testing; see whether the output range has 20dBu variation. 1. CH1~CH6 MIC Socket:-40dBu (±3dBu). 2. CH7-8, CH9-10 MIC Socket:-37dBu (±3dBu). 3. CH1~CH6 LINE Socket:-20dBu (±3dBu). Note: The AP output is balanced. 4.
  • Page 25 The error of the above test is +/-3dBu, among them the LEFT and RIGHT of CH7-8 and CH9-10 all need to be tested. 4. MAIN 9-BAND EQ TEST Input -40dBu BAL signal form the CH1, adjust the LEVEL and make the MAIN OUT is equal to 0dBu, the AP scan setting is as follows: 1.
  • Page 26 The error of the above test is+/-3dBu, the LEFT and RIGHT all need to be tested. 5: MONITOR 9-BAND EQ TEST: Keep the constant input condition, plug the AP input wire to the MONITOR OUT, then adjust the LEVEL and make The MONITOR OUT is equal to 0dBu. 1.
  • Page 27 1. AMPLIFIER MODE is the MAIN+MAIN status, the outputs of the amplifier are: APM80.1000: >60V. (Amplitude value) APM80.1500: >68V. (Amplitude value) 2. AMPLIFIER MODE is the MAIN+ MONITOR status, the outputs of the amplifier are: APM80.1000: >60V.
  • Page 28 The signal noise is requested to be lower than -40dBu. b). Alter AP input to the MAIN LEFT and RIGHT outputs of the MIXER, the curve is as follows: - 26 -...
  • Page 29 The signal noise is requested to be lower than -65dBu. 10. Listening Test a). Adjust AC voltage, make AC input is equal to 230V; the power supply switch indicates the 230V position. Connect to the high quality cabinets, connect the signal of the DVD player to the input of each channel, adjust the LEVEL MAIN and MONITOR LEVEL to the appropriate volume, operate the switch and knob of each channel respectively (from minimum to maximum).During the operation, there should be not occurred big sonic...

  • Page 30: Exploded View&Mechanical Parts List

    8. EXPLODED VIEW&MECHANICAL PARTS LIST - 28 -...
  • Page 31 - 29 -...
  • Page 32 3 7*3.5 072Cblue 13 NI01147 knob cover 3 7*3.5 white 14 TC00384 transformer XPI57F3608002C3-120V/230V 15 MI03954 ZD-fixed bracket APM80.1000 70*12*15 V1.0 16 MA06499 ZC-panel APM80.1000 ALTO V1.0 17 MB05216 ZC-rear panel APM80.1000 ALTO V1.0 18 NC00131 T-wooden washer 1* 3 11.3* 3 15.3 red 19 HE00125 fan DC24V/0.14A 80*80*15 175mm JST2P...
  • Page 33 29 MA06465 D-panel APM80.1000 1.5t*536.7*257.4_V1.0 30 MI03954 ZD-fixef bracket APM80.1000 122*72*12_V1.0 31 MA06499 ZC-panel APM80.1000 ALTO_V1.0 32 MB05216 ZC-rear paenl APM80.1000 ALTO_V1.0 33 TC00384 transformer XPI57F3608002C3-120/230V 34 NB05186 outter box APM80.1000/1500ALTO_V1.0 35 NE17033 ZC--label APM80.1000 bar code _V1.0 - 31 -...

  • Page 34: Bom

    19 NH00115 paper 0.045*1M 20 NI00015 membrane 0.04*1M 21 NB02912 carton PBM8.250/PBM8.500 ALTO V1.1 22 NB05186 inner case RS APM80.1000/1500/QUAD ALTO V1.1 23 NB04045 cushion PBM8.500MK V1.0 24 HI00120 slide switch L21 22A 25 NI03205 protective cover 0.5*44*15 V1.0 26 MG00518 screw M3*7*0.5PH...
  • Page 35 1*86.5*53 L 8 V1.3 95 NC00010 insulation board 0.65M*60M*1t 96 HC00876 terminal block RS 7ESDP 02P 97 HK07839 PC board P APM80.1000 OUTPUT CN 98 HC00174 connector(male) 4P 3.96mm 180° 99 HC00076 connector(male) 2P 2.5mm 180° CON7,CON8 100 AC00179 tin without lead RS M705E Sn 3Ag 0.5Cu...
  • Page 36 Part No. Description Specification Remark 109 NI00278 sleeve 15*1000mm 110 MG00161 screw M3*6 111 HC00359 connector 2.54 180° 4P(gold plated) 6/11.6mm CN17,CN18 112 HC00389 connector(male) 16P 2.54mm180° CN13 113 HC00082 connector(male) 8P 2.5mm 180° CN16 114 HC00276 connector(male) 3P 2.54mm 180° CN4,CN10 115 HC00034 short circuit connector...
  • Page 37 Part No. Description Specification Remark 159 CG00078 X2 capacitor RS MKT 1.0uF/275V ±5%(BFC233620105) 160 CF00224 metal film capacitor RS MKP 0.1uF/630V±5%(BFC238320104) C4,C5 161 CF00222 metal film capacitor RS MKT 1.0uF/250V ±5%(BFC237341105) C67,C68 162 SB00221 transistor RS CT BD237(SOT32)/(ST) 163 SB00222 transistor RS CT HGTG12N60A4D(TO247)/(FAIRCHLD) Q1,Q2...
  • Page 38 Part No. Description Specification Remark 202 AE00449 solder material without lead 9308/Sn Ag Cu SMD integrated circuit RS 203 SG00466 HCPL 0611#060(SO8)/(AGILENT) U3,U4,U5,U6 1/2W 5.1V(MMSZ5231B)(SOD 204 SE00089 SMD zener diode RS D14,D15,D16,D17 123)/(PANJIT) 205 SF00101 voltage stabilized transistor L4941BDT TR PB FREE(DPAK)/(ST) SMD integrated circuit RS 206 SG00495 IR2156SPBF(SO14)/(IR)
  • Page 39 Part No. Description Specification Remark R1,R5,R14,R24,R29,R30,R32,R39,R47,R48,R49,R50, R51,R52, R53,R54,R55,R56,R57,R69,R114,R129,R130,R132,R139,R147, R148, 248 RD00214 SMD precise resistor 1/10W 10.0K ±1% 0603 R149,R150,R151,R152,R153, R169, R154,R155,R156,R157,R201,R202,R219,R301,R302, R319,R1001,R1003 249 RD00218 SMD precise resistor 1/10W 15.0K ±1% 0603 R9,R12,R86,R109,R112,R186 250 RD00224 SMD precise resistor 1/10W 100K ±1% 0603 R35,R58,R59,R135,R158,R159,R208,R308 251 RD00506 SMD precise resistor 1/10W 3.30K ±1% 0603...
  • Page 40 Part No. Description Specification Remark 282 SG00496 SMD integrated circuit RS LF412CDR(SO8)/(TI) U4/B,U104/B 283 CO00137 SMD inductance RS 1.0mH ±5%(NL453232T 102J)/(TDK) L1,L101 284 SG00502 SMD integrated circuit RS NE5532DR(SO8)/(TI) U1/B,U2/B,U101/B,U102/B 285 SG00504 SMD integrated circuit RS C ATmega8 16AU(TQFP32)/(ATMEL) U8/B 286 SG00509 SMD integrated circuit RS HEF4069UBT(SO14)/(PHI)
  • Page 41 Part No. Description Specification Remark R4,R5,R6,R7,R8,R9,R11,R1 2,R13,R16,R18,R20,R21,R2R23,R24,R27,R28,R30,R31,R32,R33,R34, 332 RD00032 SMD fixed resistor 1/8W 10K ±5% 0805 R35,R39,R41,R42,R43,R44,R46,R5 2,R6 2,R7 3,R8 3,R1 10,R1 11, R2 10,R2 11,R3 10,R3 11,R4 10, R4 11,R5 10,R5 11,R6 10,R6 11 333 RD00038 SMD fixed resistor 1/8W 22K ±5% 0805 R1 6,R1 7,R2 6,R2 7,R3 6,R3 7,R4 6,R4 7,R5 6,R5 7,R6 6,R6 7,R2 13 334 RD00040...
  • Page 42 Part No. Description Specification Remark 374 RA00139 fixed resistor 1/2W 3.9K M type R111 375 HI00317 rotary switch RE2001 40E2 155F 4B SW1,SW2 376 HI00238 push button switch RS 2 6P PS 92 26A(NON LOCK) 377 HI00236 push button switch RS 2 6P PS 92 26A(SELF LOCK) S2,S3,S1 1,S2 1,S3 1,S4 1, S5 1,S6 1,S7 1,S8 1 378 SD00032...
  • Page 43 Part No. Description Specification Remark RF4 1,RF4 3,RF4 4,RF9 1,RF9 3,RF9 4,RF13 1,RF13 3,RF13 4, 409 RD00040 SMD fixed resistor 1/8W 27K ±5% 0805 RF13 8,RF18 1,RF18 3,RF18 4,RF18 8,RF13 10,RF13 11, RF18 10,RF18 11 410 RD00021 SMD fixed resistor 1/8W 1.8K ±5% 0805 RF4 2,RF13 2,RF13 9 411 RD00044...
  • Page 44 100 *4 ±5% 8P 0603 AR1,AR2 1/16W 497 SE00011 SMD rectifier diode RLS4148 0.5A (LL 34) 498 SG00068 SMD integrated circuit 74HC14DT(SO14)/(PHI) 499 SG00410 SMD integrated circuit IC41LV16256 35KG(SOJ40)/(ICSI) 500 SG00166 SMD integrated circuit TY 2 ALTO(GMCODE:105022) - 42 -...
  • Page 45 Part No. Description Specification Remark 501 SG00147 SMD integrated circuit CHEF DSP(GMCODE:105022) 502 SG00037 SMD integrated circuit LD1117DT33C(TO252)/(ST) 503 HC00611 IC socket (SMD) PLCC32 (AMP S/N:822516-7) 504 SG00016 SMD integrated circuit UDA1345TS(SSOP28)/(PHI) 505 AE00449 solder material without lead 9308/Sn Ag Cu SMD ceramic capacitor-RS 506 CI00264 15PF/50V NPO ±5...
