Assembly Instructions

1. Make sure your QuickStart + W5200 boards have been safely powered down and carefully
separated. Set the QuickStart board aside.
2. Carefully insert the Ag9050 Power over Ethernet module from the top down so that the module's
large transformer is facing outward. The module is pin-keyed, so you cannot insert the module
backwards.

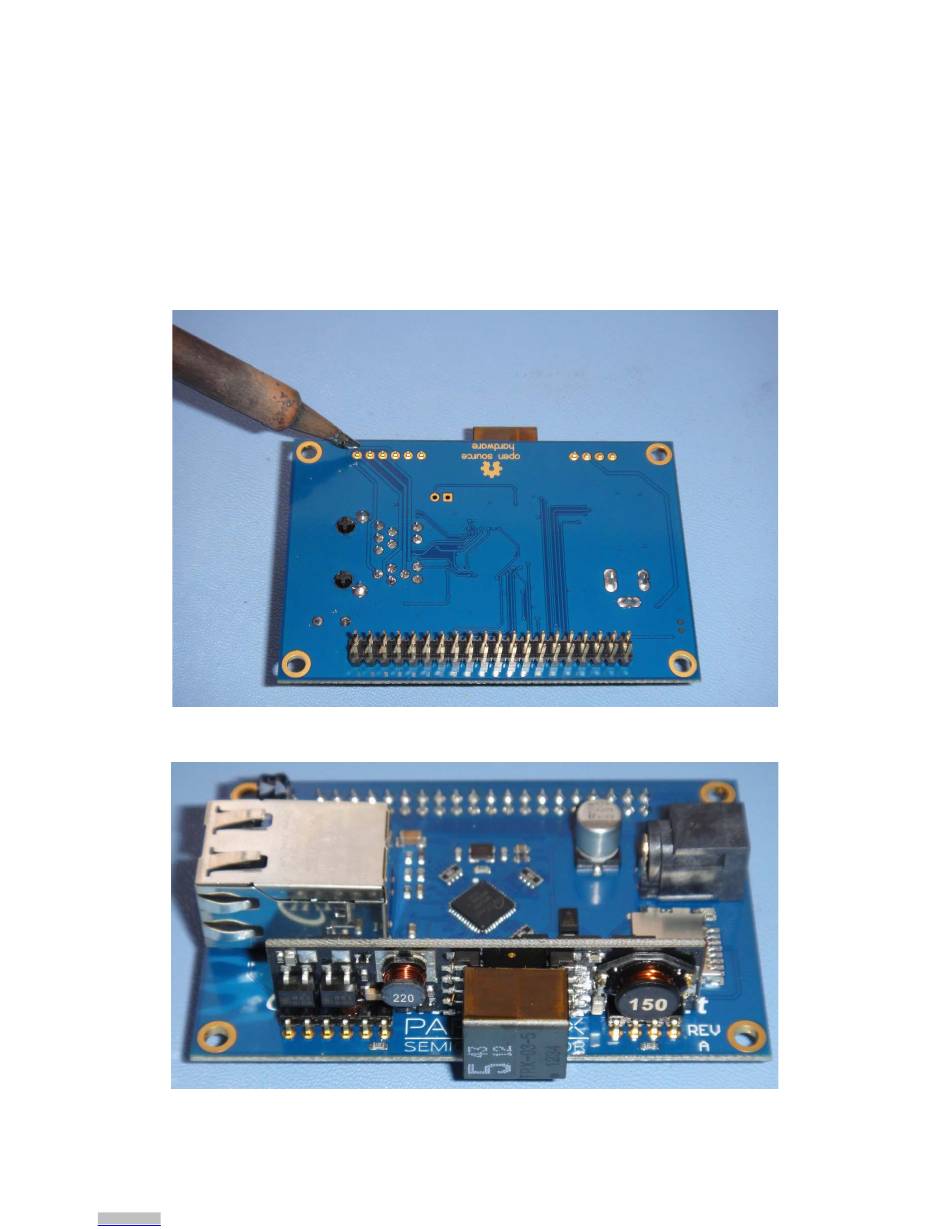

3. Use your soldering iron to solder the Ag9050 module into place from the underside of the W5200
module. Apply solder to all of the module's pins.
bridges.
4. Check that your board setup looks like this when you're done soldering.
Copyright © Parallax Inc.
Arrow.com. Arrow.com.
Downloaded from Downloaded from
Ag9050 PoE Module installed into the W5200's PoE header.
Ag9050 Power over Ethernet Module (#40012)
Make sure there are no accidental solder
v1.0 8/6/2013 Page 2 of 3
