OMEGA 3
User Manual

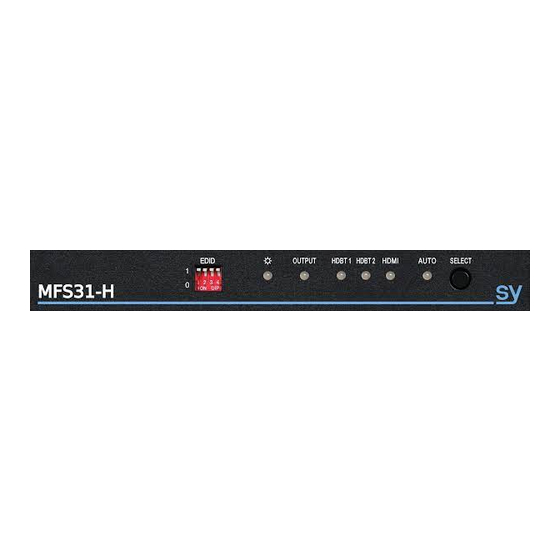

MFS31-H
Multi-format Switcher
with dual HDBaseT and a HDMI 2.0 inputs
2x HDBaseT and 1x HDMI inputs, with HDMI output
Supporting:
HDMI 2.0, Down-Scale, EDID & HDCP control, Test-Pattern,
Audio de-embed, CEC & Temperature control, Diagnostics, iPoC
SY Electronics Ltd., 7 Worrall Street, Salford, Greater Manchester, M5 4TH, UK
Tel: +44 (0)161 868 3450 – Web: sy.uk
Advertisement
Table of Contents
Related Manuals for SY OMEGA 3
Summary of Contents for SY OMEGA 3
- Page 1 2x HDBaseT and 1x HDMI inputs, with HDMI output Supporting: HDMI 2.0, Down-Scale, EDID & HDCP control, Test-Pattern, Audio de-embed, CEC & Temperature control, Diagnostics, iPoC SY Electronics Ltd., 7 Worrall Street, Salford, Greater Manchester, M5 4TH, UK Tel: +44 (0)161 868 3450 – Web: sy.uk...
-
Page 2: Table Of Contents
Video Keep-Alive Test Pattern Setting Auto or Manual Switching Mode Input Selection Diagnostic Commands CEC Commands Set Safety Temperature RJ-45 WIRING SPECIFICATIONS General Video and Audio Power Supply Environmental and Physical Package Contents Safety Instructions After Sales Service sy.uk V2.02... - Page 3 Thank you for purchasing the MFS31-H (Omega 3) Multi-format Switcher. This product is designed with professional AV installers in mind. The many extensive features assist with system integration, validation and maintenance. Please carefully read this manual prior to installation and keep for future reference. You can download further supporting documentations from our web site (sy.co.uk)
-
Page 4: Features
HDMI LED If no signal, the LED will flash once every second AUTO Lit when auto source selection is activated Brief press: Select the input sources SELECT Long press (~ 3 seconds): Toggle between AUTO / Manual modes sy.uk V2.02... -
Page 5: Rear
MFS31-H 48V port. NOTE: There is no need to power either of the HDBaseT transmitters alone, as MFS31-H support iPoC function and can supply power to the remote transmitters (SY-HDBT-70-SP-T). RS232 Commands The ASCII commands given in this section use the following RS232-CTL port settings:... -
Page 6: Help Command
There are 2 options to handle the condition when there is no signal from the selected input: Output current Test Pattern – Maintain output Video stream (Video Keep-Alive) No timing output (default) – No output video; hence video drop-out The following command selects the VKA modes: sy.uk V2.02... -
Page 7: Test Pattern
The MFS31-H inputs can be selected with one of the following three options: HDMI-INPUT HDBT1-INPUT HDBT2-INPUT Command Details w is input, select one of following options: SET OMEGA MANUAL-SWITCH-MODE w HDMI, HDBT1, HDBT2 GET OMEGA MANUAL-SWITCH-MODE Get the current Manual switch mode V2.02 sy.uk... -
Page 8: Diagnostic Commands
Pulse HPD: This command forces the HDP line low for 200mS, which has a similar effect as HDMI cable disconnection/reconnection. Voltage Value: Power supply voltage level measurement is reported. Temperature Read: Internal temperature closest to the main heat source can be read. This temperature will be higher than the device surface temperature. sy.uk V2.02... -
Page 9: Cec Commands
Get current OMEGA SAFE-TEMP-ONOFF state Set shut down temperature x Set warning temperature y SET OMEGA SAFE-TEMP-VALUE x y z Set re-power temperature z Default: x=75, y=70, z=65 (℃) x>y>z>55 GET OMEGA SAFE-TEMP-VALUE Get the current OMEGA safety temperature values V2.02 sy.uk... -
Page 10: Rj-45 Wiring
Output HDCP: Fully controlled – Pass, 1.4, 2.2, Cascade mode RS232 (Control Commands – Tx, Rx) 57600 baud, 8 data bits, 1 stop bit, no parity RS232 (Pass-Through – Tx, Rx) Any baud rate to maximum of 115200. sy.uk V2.02... -
Page 11: Video And Audio
Dimensions (L x W x H) 163 x 90 x 20 mm (excluding connectors) Mass (Main Unit) 0.5kg Package Contents Item MFS31-H unit 3 pin female captive screw connector 48V/0.5A Power Adapter With interchangeable fittings for UK, EU and US V2.02 sy.uk... -
Page 12: Safety Instructions
This product has a two years standard warranty, beginning from the date of purchase as stated on the sales invoice. For full details please refer to our Terms and Conditions. SY Product warranty is automatically void under any of the following conditions: ...
