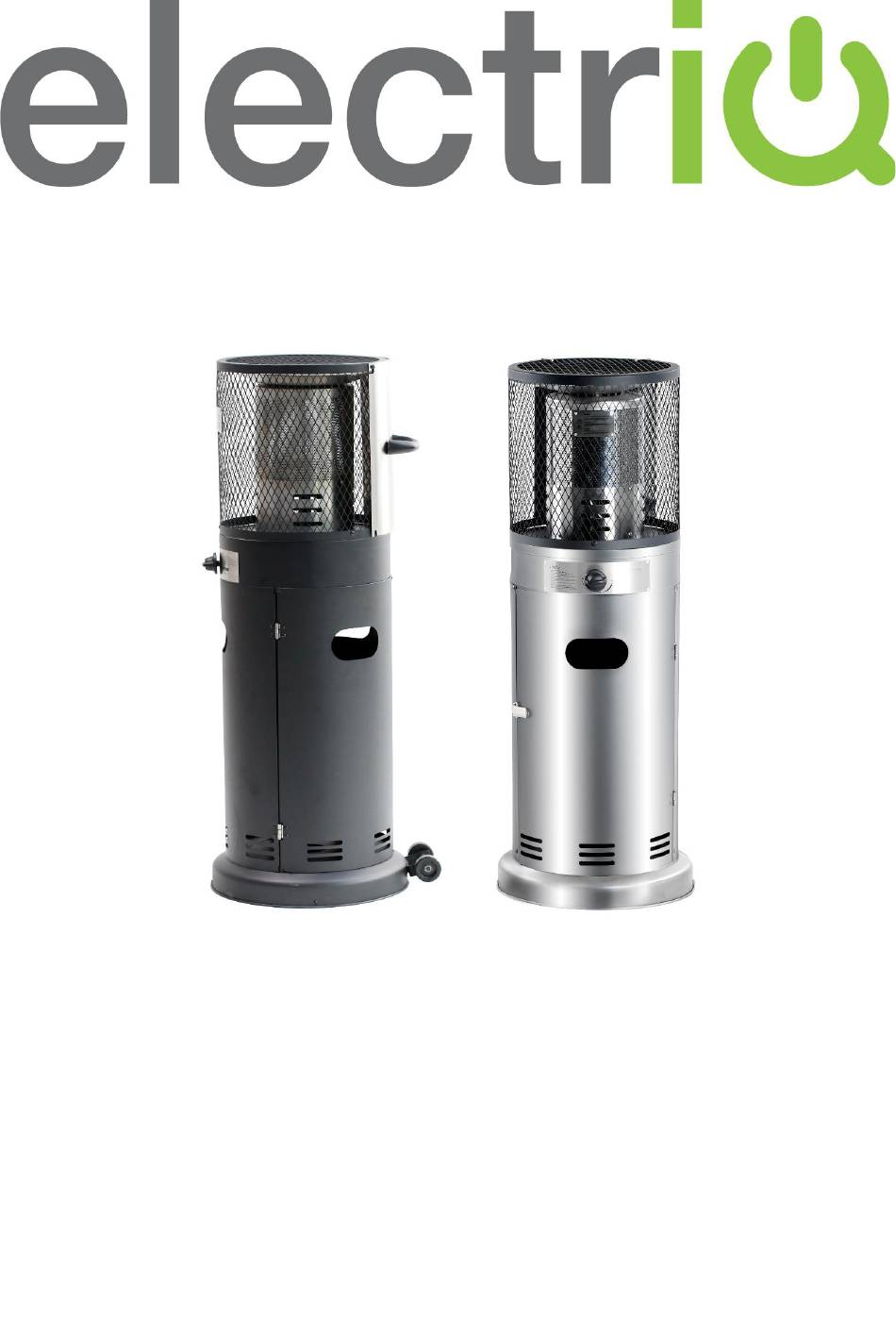

- Page 1 USER MANUAL GAS PATIO HEATER eiQTTGSS STAINLESS STEEL eiQTTGBL BLACK WARNING: FOR OUTDOOR USE ONLY OR IN WELL VENTILATED AREAS PLEASE KEEP THE MANUAL FOR FUTURE REFERENCE...
-
Page 2: Table Of Contents
CONTENTS SAFETY PARTS LIST ASSEMBLY OPERATION LEAK TESTING GAS INFORMATION MAINTENANCE STORAGE TROUBLESHOOTING TECHNICAL SPECIFICATIONS SUPPORT... -
Page 3: Safety
IMPORTANT SAFETY INFORMATION Please read this user manual before using this heater and keep it safe for future reference. Read the following instructions carefully and be sure your patio heater is properly ⚫ installed, assembled and cared for. Retain the instructions for future reference. Failure to follow these instructions may result in serious bodily injury and/or ⚫... - Page 4 For use outdoors or in well ventilated areas. • A well-ventilated area must have a minimum of 25% of the surface area open. • The surface area is the sum of the walls surface. • The use of this appliance in enclosed areas dangerous PROHIBITED.
-
Page 5: Parts List
PRODUCT OVERVIEW AND PART LIST... - Page 6 PART PICTURE NAME Right Side Burning System Panel Assy Wheels Assembly Base Handle Heat cover Control Dial Door PART PART NAME M4 x 10 M5 x 12 Left Side Panel M6 x 10 M6 x 20 Note: Some of the fittings may be provided pre-attached to the unit.
-
Page 7: Assembly
ASSEMBLY Required Tools: Philips Screwdriver / Adjustable Spanners / Wrenches Leak Detection Solution: One-part detergent and three parts water Before assembly, ensure all packing material and any transit protection is removed. Step 1 Parts required: Base Wheels Assembly 2 x DD M6x20 Nuts and Bolts Using the M6x20 nuts and bolts, attach the Wheels Assembly to the Base Step 2... - Page 8 Step 3 Parts required: Door 4 x AA M4x10 Screw 4 x EE M4 Nut Using the M4 Screws and Nuts attach the Dooe by its hinges Step 4 Parts required: Burning System Assembly Control Dial 4 x BB M5x12 Screws Fit the Control Dial into the front of the unit.
- Page 9 Step 5 Parts required: Heat cover Handle 2 x CC M6x10 Screws Attach the Handle to the heat cover using the M6x10 screws Step 6 Clip the heat cover onto the Burning System Assembly. Use the handle to slide the heat cover around the mesh to block heat from that partciuclar section.
- Page 10 Step 7 When not in use, the heat cover can be clipped lower down the body of the patio heater. Step 8 Parts required: Screw the regulator onto the gas hose...
- Page 11 Step 9 Connect the regulator to the gas cylinder (not supplied).
- Page 12 Step 10 Place the gas cylinder inside the Patio Burner. It is now ready to use.
-
Page 13: Operation
OPERATING INSTRUCTIONS BEFORE FIRST USE AND AFTER EVERY GAS CYLINDER CHANGE, GAS DELIVERY SYSTEM MUST BE PURGED OF AIR BEFORE IGNITING! TO DO THIS, TURN THE CONTROL DIAL ANTI-CLOCKWISE TO THE PILOT SETTING. PRESS THE DIAL IN AND HOLD FOR 1 MINUTE BEFORE ATTEMPTING IGNITION. BATTERY REPLACMENT Remove the control dial. -
Page 14: Leak Testing
LEAK TESTING NEVER USE A NAKED FLAME TO CHECK FOR LEAKS. NEVER LEAK TEST WHILE SMOKING. The gas connections on this appliance are leak tested at the factory prior to shipment. This appliance needs to be periodically checked for leaks and an immediate check is required if the smell of gas is detected. -
Page 15: Maintenance
MAINTENANCE To enjoy years of outstanding performance from your heater, make sure you perform the following maintenance activities on a regular basis: • Keep exterior surfaces clean. • Use warm soapy water for cleaning. Never use flammable or corrosive cleaning agents. •... -
Page 16: Troubleshooting
TROUBLESHOOTING PROBLEM CONDITION Cylinder valve is closed Open valve Blockage in orifice or pilot tube Clean or replace orifice or pilot tube Open gas line and bleed it (pressing Burner won’t light Air in the gas line control dial in) for not more than 1- 2 minutes or until you smell gas Low gas pressure Gas cylinder low or empty... -
Page 17: Technical Specifications
TECHNICAL SPECIFICATIONS Model: eiQTTGSS eiQTTGBL Nominal Heat input =6.0kW Consumption: 436.3g/h(G30)/428.5g/h(G31) 0063-20 electriQ BG-CY-DK- BE-CH-CY- EE-FI-FR- CZ-ES-FR- HR-HU-IS- AT-CH-DE- Country Code GB-GR- IE- IT-LT-LU- IT-LT-LU-LV- MT-NL-NO- PT-SK-SI RO-SE-SI- SK-TR Gas Category 3+(28-30/37) 3B/P(30) 3B/P(50) 3B/P(37) Butane/ Butane/ Butane/ Butane/ Type of Gas...
