Device Views Add-on Modules

4.14.1 Add-on Module USB 2.0 embedded L-/R474-BXE

Source side (CPU module)

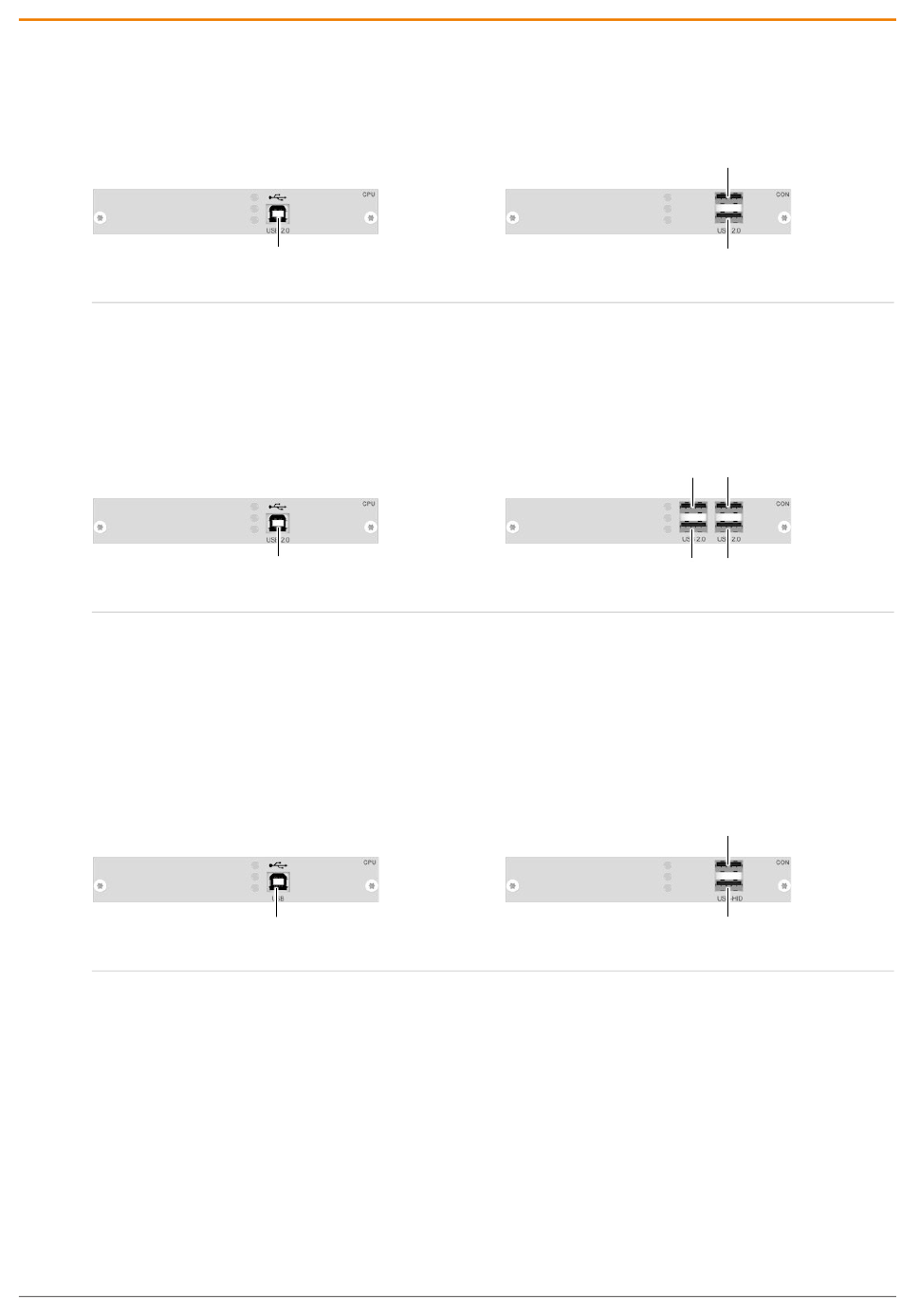

Fig. 29 Interface side L-/R474-BXE
1 USB Type B, USB 2.0 (up to 36 Mbit/s)

4.14.2 Add-on Module USB 2.0 embedded L-/R474-BXE2

Source side (CPU module)
Fig. 30 Interface side L-/R474-BXE2
1 USB Type B, USB 2.0 (up to 50/100 Mbit/s)

4.14.3 Add-on Module USB-HID L-/R474-BXH

Source side (CPU module)
Fig. 31 Interface side L-/R474-BXH
1 USB Type B, USB-HID
1
1
1
Sink side (CON module)
1 USB Type A, USB 2.0 (up to 36 Mbit/s)
2 USB Type A, USB 2.0 (up to 36 Mbit/s)
Sink side (CON module)
1 USB Type A, USB 2.0 (up to 50/100 Mbit/s)
2 USB Type A, USB 2.0 (up to 50/100 Mbit/s)
3 USB Type A, USB 2.0 (up to 50/100 Mbit/s)
4 USB Type A, USB 2.0 (up to 50/100 Mbit/s)
Sink side (CON module)
1 USB Type A, USB-HID device 1
2 USB Type A, USB-HID device 2
Description
2
1
3 4
1 2
2
1
