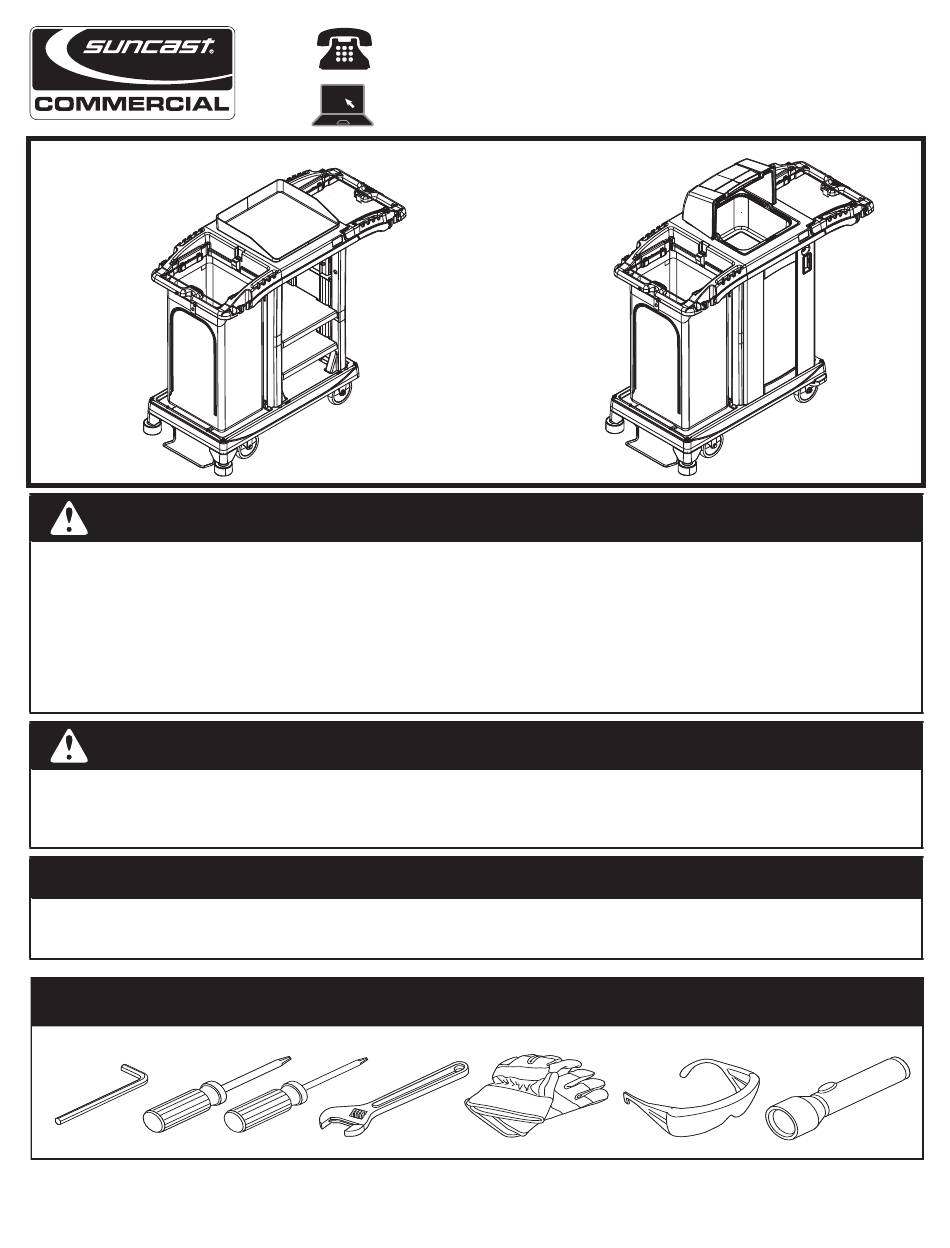

Compact HKC Standard Cart:
HKCCT100
BEFORE YOU BEGIN
• Read instructions thoroughly prior to assembly.
This kit contains parts that can be damaged if assembled incorrectly or in the wrong sequence.
• Please follow instructions.
Suncast is not responsible for replacing parts lost or damaged due to incorrect assembly.
• Check for all parts before you begin assembly.
Using the provided parts check list, verify that you have all the parts required to construct
your cart.
CAUTION
• This product is not a toy and is not intended for use by children.
• Exercise caution when moving fully loaded product.
• Do not sit or stand on top of product.
CARE INSTRUCTIONS
• We recommend cleaning your product with soap and water. DO NOT use bleach, ammonia, or other
caustic cleaners, and DO NOT use stiff bristle brushes. Rinse and dry well before using.
Tools Needed
*
*Included in parts bag
© 2019 Suncast Corporation, Batavia, IL
To learn about other Suncast products please call
1-855-477-1260 or 1-630-879-2050.
Product Feedback? Email us at: feedback@suncastcommercial.com
Compact HKC Premium Cart:
HKCCH200
0361547
Advertisement
Related Manuals for Suncast Compact HKC Standard
Summary of Contents for Suncast Compact HKC Standard
- Page 1 This kit contains parts that can be damaged if assembled incorrectly or in the wrong sequence. • Please follow instructions. Suncast is not responsible for replacing parts lost or damaged due to incorrect assembly. • Check for all parts before you begin assembly.
- Page 2 Parts–Compact HKC Standard 0440842 10252710 Folding Handle Bag Wire 10252610 0B0053110 Three Sided Tray Back Panel 10253410 Handle/Top Frame 10252110 Side Wall 0510836 Laundry Bag 10252210 Shelf 10252510 Base 10252310 Roller Brackets 0510919 Vaccum Wire 0463698 Roller Assembly 10253210 0440961...
- Page 3 Parts–Compact HKC Premium 0464023 0440842 10252710 Bin Cover and Bag Wire Folding Handle Large Bin 0B0053110 Back Panel 10253410 Handle/Top Frame 10252110 Side Wall 0510836 Laundry Bag 10252210 Shelf 10252510 Base 10252310 Roller Brackets 0510919 Vaccum Wire 0B0053010 0463698 Door Roller Assembly 10253210 0440961...
- Page 4 Assembly Install cart sides (G) into slots on base (L). Turn cart assembly upside down, and secure sides to base (L) with eight screws (AA).
- Page 5 Assembly With folding handle (X) in up position, install slots of folding handle onto pegs on top panel (F). Push down on end of folding handle to lock into place. On HKCCT100, place 3-sided tray (E) onto top On HKCCH200, install Bin Cover with Large Bin (B) to frame (F).
- Page 6 Assembly Stand cart upright and place top panel (N) onto side panels (G). DO NOT use screws to attach at this point. Dowel Pin Dowel Pin At a slight angle, insert lower dowel pins of back panel Slightly lift up top panel (N) and insert dowel pins on top (A) into holes in base (L).
- Page 7 Assembly Dowel Pin Dowel Pin Dowel Pin Dowel Pin On HKCCH200 Model only, slightly lift up top panel (F) On HKCCH200 Model only, at a slight angle, insert and insert dowel pin on top of locking door panel (M) lower dowel pin of locking door panel (M) into hole on into holes on underside of top panel.
- Page 8 Assembly Install roller brackets (K) to front corners of base (L). Secure with two screws (AA) for each roller bracket. Install a long bolt (CC) through and washer (FF) through each roller (T). Secure each bolt with a capped nut (EE). Tighten bolt with an Allen wrench (nut will fit into a slot at top of base (L).Tighten until nut is pulled all the way into the hexagonal hole.
- Page 9 Assembly Attach swivel casters (O) to location shown in illustration above. Slide a wall guide (R) onto both fixed casters (P) and attach as shown. Secure each caster with four screws (AA).
- Page 10 Assembly At the desired height, insert shelf into cart at an angle, Once in position, lay flat on the shelf supports. Secure with screw (BB) on each front side of shelf. Install laundry bag (I) loops into slots on top frame (F) Lift plastic bag wires (D) into upper position and remove and snap closed to secure.
- Page 11 Assembly Fold plastic bag wires (D) down into position on top frame (F). Install vacuum wire (U) into base (L). Secure with nuts (DD) .
