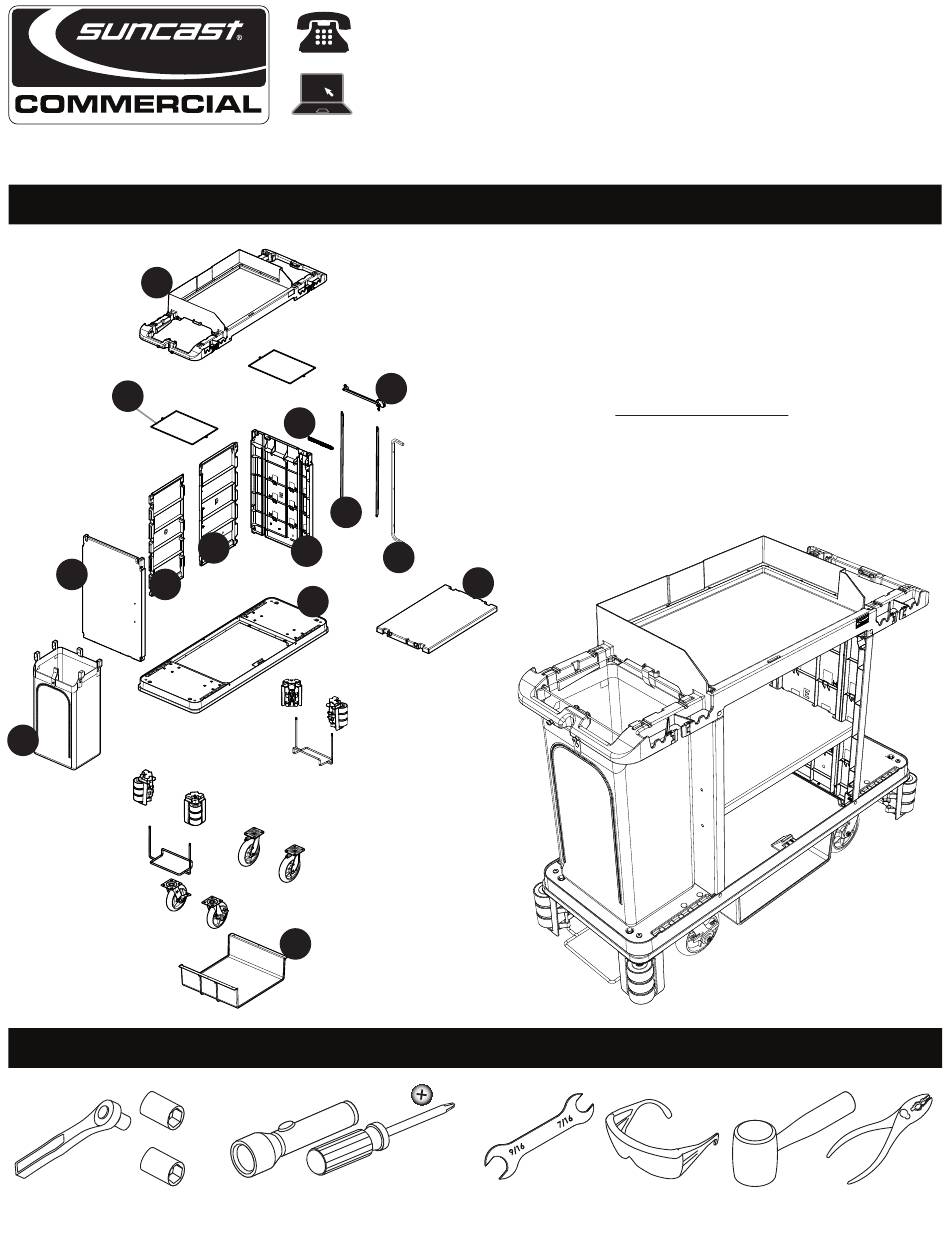

ITEM NUMBER: HKC2002 (Black) and HKC2052 (Platinum)
PARTS
F
R
x2
B
C
H
TOOLS NEEDED
7/16"
9/16"
© 2020 Suncast Corporation, Batavia, IL
To learn about other Suncast products, please call
1-855-477-1260 or 1-630-879-2050.
Product Feedback? Go To: Suncastcommercial.com/feedback
OR email us at: feedback@suncastcommercial.com
M
x2
K
L
x2
D
E
A
G
(SLO)
SOME PARTS SHOWN ON PARTS
PAGE ARE PRE-ASSEMBLED TO
THE BOTTOM PANEL
x2
OO
I
*
See pages
5,6,9, &16
Tip #2&3
IMPORTANT
0361504A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HKC2002 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Suncast HKC2002

Summary of Contents for Suncast HKC2002

  • Page 1 To learn about other Suncast products, please call 1-855-477-1260 or 1-630-879-2050. Product Feedback? Go To: Suncastcommercial.com/feedback OR email us at: feedback@suncastcommercial.com ITEM NUMBER: HKC2002 (Black) and HKC2052 (Platinum) PARTS (SLO) IMPORTANT SOME PARTS SHOWN ON PARTS PAGE ARE PRE-ASSEMBLED TO...

  • Page 2: Before You Begin

    This kit contains parts that can be damaged if assembled incorrectly or in the wrong sequence. • Please follow instructions. Suncast is not responsible for replacing parts lost or damaged due to incorrect assembly. • Assistance is required during parts of the assembly.
  • Page 3 Hardware continued... 0480466 0480467 0631459 1/4"-20 nut 0631536 ¼" x ½" 0631178 screw 3/8" washer 0631456 ¼" x 1 ½" Bolt 0631457 ¼" x 2" Bolt 0631535 0631506 1/4 x ¾" 0631462 screw ¼" x 1" Bolt Hardware shown at actual size *(Unless otherwise noted). Extra hardware provided. Not all are used.

  • Page 4: Troubleshooting

    Troubleshooting Problem Possible Cause Possible Solution Casters are not locking or unlocking. Placement of Casters. Loosen the bolts on the casters and slide the casters towards the center of the cart. Moving the casters toward the center of the cart will increase the engagement of the (LSLO) and caster connection.
  • Page 5 Assembly Insert back left panel (C) into left side panel (B) until secure. Insert back right panel (D) into right side panel (E) until secure. Insert Left back panel tabs (B/C) into slots on right back panel (D/E) on an angle and push together.
  • Page 6 Assembly Lower assembled panel down onto top of cart (A). Place in center rectangular area. Attach sides to cart in four corners and center using five screws (CC /DD / & EE) and five nuts (MM). Note: Use supplied wrench *...
  • Page 7 Assembly Rib Channels Important: Make sure top end of rod faces up. Make sure these legs fall within rib channels Insert two holes on Swivel Lockout Mechanism (M) onto two pegs on side panel (E). Slide linkage arm (L) onto pin using the side with the larger hole also stamped “top”.

  • Page 8: Right Side Panel

    Assembly Bottom Right Side Panel Attach lower Swivel Lockout Bar (Q) (Refer to step 3 for reference) to linkage arm (L) using pin (II). Repeat other side. NOTE: You may have to hold upper Swivel Lockout Bar in place with one hand while attaching pin.
  • Page 9 Assembly 8 12 Insert shelf (I) into cart at an angle in one of three positions. Tabs Push down till sides of shelf engage with tabs on sides of cart. Attach shelf to sides using two screws (RR). Repeat other side.
  • Page 10 Assembly 8 14 Insert tube (OO) into pocket in (B) and attach using three screws (HH) and three caps (NN). Repeat on right side. Use a mallet to attach caps (NN). Attach (OO) to bottom using two screws (HH) and two caps (NN). Repeat on right side. Note: Do Not attach top of tube (OO) to lid until after step (21).
  • Page 11 Assembly Lever Swivel Lockout Mechanism Lower top (F) to top of cart. Make sure the upper Swivel Lockout Bar (M) stays in position. The red lever should remain vertical so it fits properly through the hole on the lid (F). Lid (F) should cover part of upper Swivel Lockout Bar (M) on the inside.

  • Page 12: Left Side

    Assembly 8 17 To attach lid (F) insert bolt (BB) through hole on side of cart and attach from underneath lid using nut (JJ). Repeat other side. Note: Close up views have had shelf taken out for clarity. Note: Use supplied wrench * Left Side To attach lid (F) insert screw (EE / DD) through lid and attach nut (MM) from underneath lid.
  • Page 13 Assembly Attach tube (OO) to top using two screws (HH) and two caps (NN). Use a mallet to attach caps (NN). Repeat other side.
  • Page 14 Assembly Lower garbage bag (H) through frame of cart. Unsnap and feed through the six slots on frame. Re-snap the bag once strap is through each slot. Note: Bag can be switched to other side if necessary.
  • Page 15 Assembly Assembly Lower garbage bag rim (R) and insert into two center slots provided. Guide rim into position. Repeat with right rim. Note: Rims can be put on both sides.
  • Page 16 Assembly Attach rubber strap (K) over two knobs on side of cart to secure vacuum cleaner. Vacuum cleaner not included.
