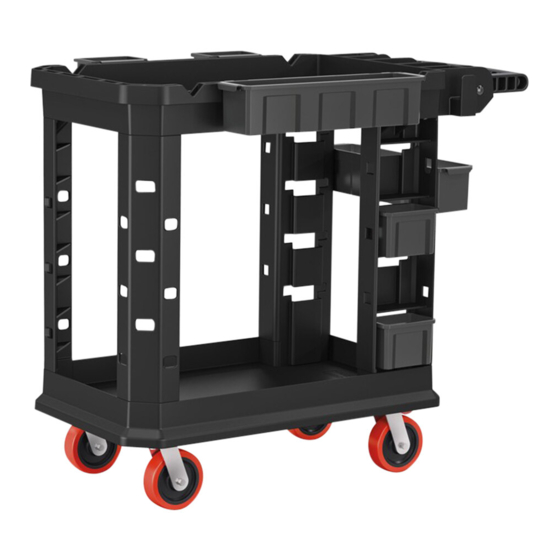

ITEM NUMBER:
PUCHD1937 / PUCHD2645 / PUCHD2654

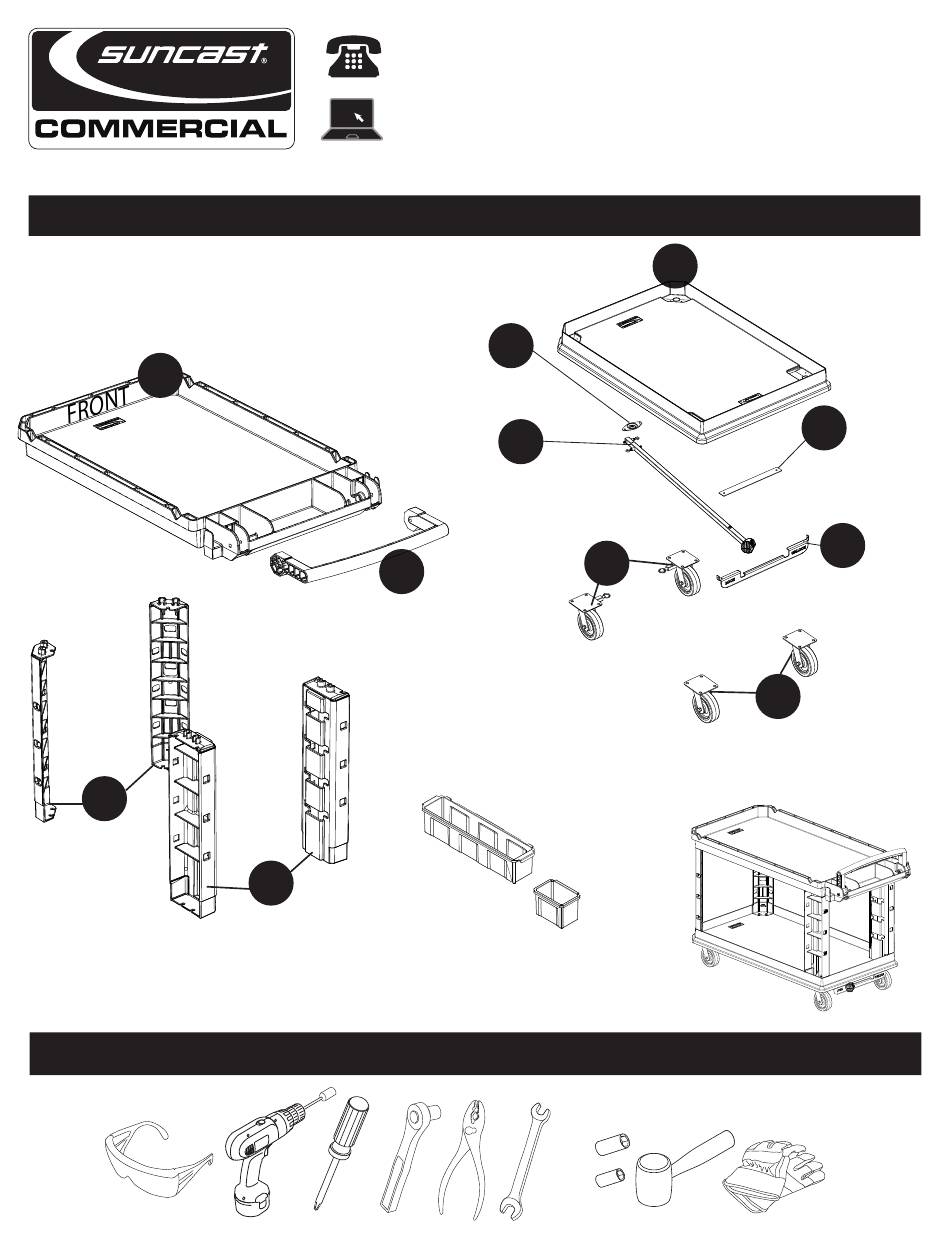

PARTS
PUCHD1937/2645/2654
A
Upper platform
1937 0510863
2645 0510843
2654 0510861
C
Front Legs
x2
1937/2645/2654
0510846
1937/2645/2654 0510845
TOOLS NEEDED
© 2017 Suncast Corporation, Batavia, IL
To learn about other Suncast products, please call
1-800-846-2345 or 1-630-879-2050.
Product Feedback? Go To: Suncastcommercial.com/feedback
OR email us at: feedback@suncastcommercial.com
1937/2645/2654 0510851
B
Handle
1937 0510865
2645/2654 0510847
D
Small Bin 0102464
Back Legs
x2
HEAVY DUTY
H
Pivot Plate
J
Actuator Assembly
1937 0671154
2645 0671153
2654 0671152
F
Front
Swivel
Casters
(SLO)
1937/2645/2654 0510871
Large Bin 0102465
x2
x4
1/2"
or
11/32"
E
Bottom Platform
1937 0510864
2645 0510844
2654 0510862
I
Slide Plate
1937 0510877
2645/2654 0510852
Lever Retainer
1937 0631617
2645/2654 0631369
G
Casters
(No SLO)
1937/2645/2654 0510872
K
Back
Swivel
0361436A
Advertisement
Table of Contents
Related Manuals for Suncast PUCHD1937
Summary of Contents for Suncast PUCHD1937
- Page 1 To learn about other Suncast products, please call 1-800-846-2345 or 1-630-879-2050. Product Feedback? Go To: Suncastcommercial.com/feedback OR email us at: feedback@suncastcommercial.com ITEM NUMBER: PUCHD1937 / PUCHD2645 / PUCHD2654 HEAVY DUTY PARTS PUCHD1937/2645/2654 Bottom Platform 1937 0510864 2645 0510844 Pivot Plate...
- Page 2 • This contains parts that can be damaged if assembled incorrectly or in the wrong sequence. Repair or replace broken parts immediately. • PUCHD1937/2645 Heavy Duty Max load is 500 lbs. PUCHD2654 Heavy Duty Max load is 750 lbs. CARE AND CLEANING •...
- Page 3 ASSEMBLY Lower each support (C/D) to bottom base (E). Peg on each leg Attach C/D to bottom base (E) using eight washers (O) and must be inserted and pushed in hole on base. Smooth side of eight screws (N). bottom base (E) must be up. Lower top (A) onto vertical supports C/D.
- Page 4 ASSEMBLY CONTINUED Attach each caster (F/G) to bottom (E) using sixteen screws Attach Pivot plate (H) to front of cart using two screws (R). (M).Note: Casters with ring should be placed on the front. Front has beveled corners. Make sure ring is in horizontal position when insalling casters.
- Page 5 ASSEMBLY CONTINUED Slide washer (V) under (J) and attach to bar using nylon Thread lanyard (Q) onto key ring. Repeat other side. If lanyard washer (U) and bolt (T). falls off hook then thread onto ring then attach to hook. Note: Ring should already be attached to caster.
- Page 6 ACCESSORIES Insert rim of small bin on inside of leg (D) or on outside rim of cart as shown on top image. Bin can fit in five positions. Insert rim of large bins inbetween legs (D) or rim of large bin can hang off either side of upper platform (A).
