Summary of Contents for Faber Relaxed Premium M

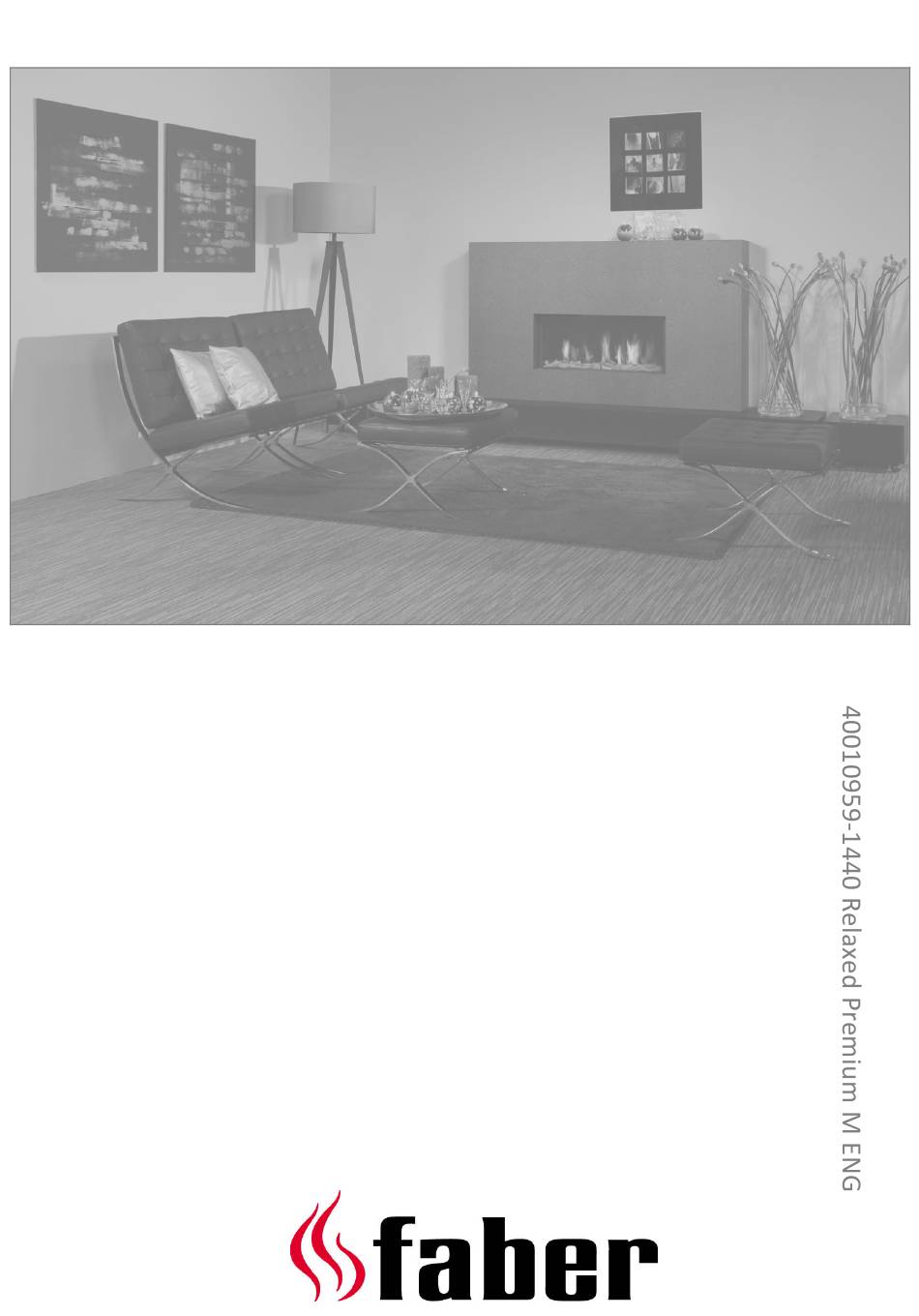

- Page 1 Relaxed Premium M ...
- Page 2 Installation Instructions 3 alternative finishes. 1.1a 1.1b 1.1c 1 < < < <...
- Page 3 Installation Instructions 2 < < < <...
- Page 4 Installation Instructions B 3 < < < <...
- Page 5 Installation Instructions 4 < < < <...
- Page 6 Installation Instructions 5 < < < <...
-
Page 7: Safety Instructions
Installation Instructions Dear user including the glass, can be very hot (over 100°C); exceptions to this are the bottom of the fire and the control elements. Congratulations on purchasing your Faber product! Do not place any combustible materials A quality product, which provide you with the within 0.5 m of the radiation area of the warmth and atmosphere for many years. Please fire. read the user manual before using the fire. Should, Light the fire for the first time and run for despite the careful final checks, a malfunction several hours on the highest setting, so occur, please contact your Faber dealer. that the paint can cure. Provide adequate ventilation, so that any fumes can Please note: disperse ; we recommend vacating the The data of your fire is available in the room during this process user manual. Please note Through the natural air circulation of the Introduction fire moisture and uncured volatile components from paint, building Only have the appliance installed by a qualified materials and carpeted floors, etc. are installer according to the gas safety regulations. attracted. These parts can settle as soot Read this installation manual properly. on cold surfaces. Therefore do not light ... -
Page 8: Preparation And Installation Instructions
Installation Instructions Preparation and installation construction with proper insulation and protection. And ensure respective instructions distance. Ensure for great discharge lengths that Gas connection the concentric discharge material is supported every meter, so that the weight The gas connection must comply with the of the material is not supported by the applicable local standards. fire. We advise using a Ø 15mm gas connection directly It is not permitted to start directly on the from the gas meter to the appliance, with a shut‐ device with concentric cut down pipe off valve in the proximity of the appliance, which material. must always be freely accessible. The air supply could then possibly be Position the gas connection so that it is easily closed. accessible at all times for service, and that the burner unit can be disassembled. Terminals Electrical connection The combined supply and discharge can be done both via wall or through the roof or through an The power supply must comply with the applicable existing chimney. local standards. Please note: A 6 Volt adapter is used. Verify if the position of the terminal meets the ... - Page 9 Installation Instructions Pay special attention to the following points: Build the system from the fire. If this is 1. Check during work if the glass can be not possible you can make use of an inserted and removed. extendable adapter section. 2. Check during work if the mouldings B For truing up the exhaust system use the (Fig. 1.2) or Q (Fig. 1.5) match. ½ meter pipe, which can be shortened and ensure that the inner pipe is always 2cm 4.6.4 Method 1 (Fig. 1.1a) longer than the outer pipe. Parts, which are shortened, must be Build the false chimney breast against the fixing secured with a self‐tapping screw points A (Fig. 1.2). The installation must always for Wall and roof terminals can also be cut. installing and removing the glass! Do not insulate but ventilate built‐in flue material. (approx. 100cm2). Take into account the thickness of the finish! Constructing the false chimney Spacer C is in line with the top of the glass slot H (line F) (Fig. 1.3). If possible, carry out a performance test at the fire before finally finishing the installation. Do not use spacer C as a supporting structure. ...
-
Page 10: Checking The Installation
Installation Instructions Checking for gas leaks Placing the decoration material Check with a gas leak finder or spray all It is not permitted to use other or to add more connections and pipes for gas leakage. material in the combustion chamber. Keep the pilot light always free of decoration Checking the burner pressure and material! primary pressure Do not place all decoration material at one time on the burner; the fabric parts can block it. Check that the burner pressure and primary Log set pressure match the information listed in the manual, Chapter 14 Technical specifications. Place some of the chips on the burner and Measuring the primary pressure: on the bottom. Close the shutoff valve. Place the logs as specified. (see Fig. (4.1 of Turn measuring nipple B (see Fig. 3.2) included log set card) some turns open and connect a measuring Divide the rest of the chips on the burner hose to the gas regulator. and on the bottom. Prevent a thick layer Take this measurement at highest setting on the burner; this adversely affects the of the fire and when the fire is set to pilot fire image. light. ... -
Page 11: Conversion To Other Gas Type
Instructions for client This can only be done by replacing the burner. To do so, please contact your dealer. Recommend that the unit should be Specify with your order always the type and serial checked annually by a qualified specialist number of the device. to ensure the safe use and to guarantee a Flue calculation long service life. Give advice and instructions on care and cleaning of the glass. Highlight the danger A simple way to calculate whether the exhaust of burnt‐in fingerprints. configuration is possible in combination with your Instruct the customer on the operation of fire, use the free “Faber Flue App” and download the unit and the remote control, including from: replacing the batteries and setting the receiver. Handover to customer: Installation instructions INTERNET: User manual BlackBerry, Android, PC (with Google Chrome ITC operating instructions browser) Log set instruction card Suction Cups APP store: Magnetic snapper iPhone, iPad and Mac. Annual maintenance Google Play: ... - Page 12 Installation Instructions Total Vertical Height (TVH) Bends 45° or 30 °vertical to horizontal TVH is the difference in height measured from the plane top of the unit to the outlet; it can be measured or These are 30° or 45° bends with a vertical offset of determined from the building plan. For clarification less than 45° (Fig.12.1 B and D). see the TVH indication in the drawings. (Fig. 12.1, 12.2 and 12.3: TVH) Pipes under a tilt angle: These are pipes which are vertically ascending at Total Horizontal Length (THL) an angle of 30° or 45°. (Fig. 12.1 C). Fill in only in THL is the Total Horizontal Length and consists of combination with at least 2 x 30 or 45° bends in elbows and pipes which are entirely in the the vertical part. horizontal plane. Elbows I, K and Q and the elements H, J, L, M, P and R (Fig. 12.1 and 12.2). Table: See the table at the right vertical (TVH) and Horizontal length horizontal length (THL). The horizontal length consists of the elements H, J, L, M, P and R (Fig. 12.1 end 12.2). For “x” and if the values are outside the table, then the combination is not allowed. Only then adjust Elbows 90° in the horizontal plane the TVH or THL. Horizontal bends are bends which are entirely in ...
- Page 13 Installation Instructions 11.1 Table for pipe diameter 150/100mm Start Length (STL) Vertical (TVH) and Horizontal (THL) STL THL STL 0.1 0.2 0.5 1 1 1 1 TVH 0 1 2 3 4 5 6 7 8 9 10 THL x x x x x ...
- Page 14 Installation Instructions 12 Example Fig. 12.1 Fig. 12.2 Fig 12.3 13 < < < <...
- Page 15 Installation Instructions 13 Calculation Sheet 14 < < < <...
- Page 16 Installation Instructions 15 < < < <...
- Page 17 Installation Instructions Technical data II 2L3B/P II 2EK3B/P II 2E3B/P II 2L3B/P II 2L3B/P Gas cat. II 2EK3B/P II 2EK3B/P II 2E3B/P II 2E3B/P Appliance type C11/C31/C91 C11/C31/C91 C11/C31/C91 C11/C31/C91 C11/C31/C91 Reference gas G25 G25.3 G30 Load Hi 7.9 7.4 Efficiency class 2 2 NOX 5 5 Inlet pressure mbar 25 30 Gas flow rate at M3/h ...
-
Page 18: Terminal Position
Installation Instructions 15 Terminal position Please note: These rules apply only for the proper functioning of the unit, for ventilation and environmental protection you need to comply with the applicable rules as defined in the building regulations. Short roof terminal Only for existing Chimney connection Extension pipe over roof... -
Page 19: Dimensional Drawings
Installation Instructions 16 Dimensional drawings 16.1 Relaxed Premium M 834 Ext. Build in opening 18 < < < <... - Page 20 Installation Instructions 16.2 Ventilation grid and control door 19 < < < <...
- Page 21 Installation Instructions 20 < < < <...
- Page 22 Installation Instructions 21 < < < <...
- Page 23 Installation Instructions 22 < < < <...
- Page 24 Dealer info: ...
