Global Payments Desk/5000 Quick Start Manual

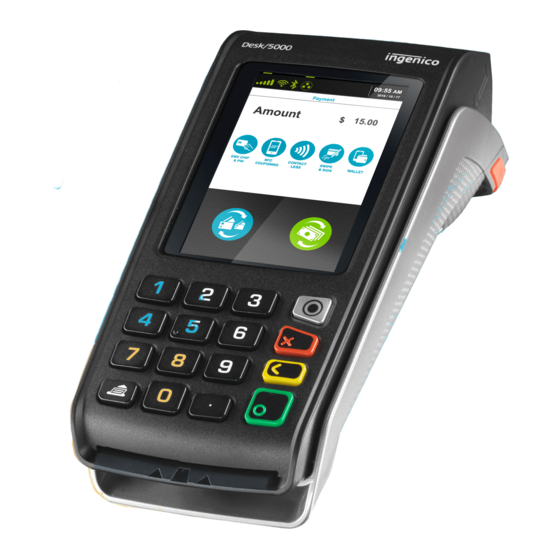

Global Payments Countertop – Desk/5000
with Desk/1500 External PIN Pad (EPP)
Quick Start Guide

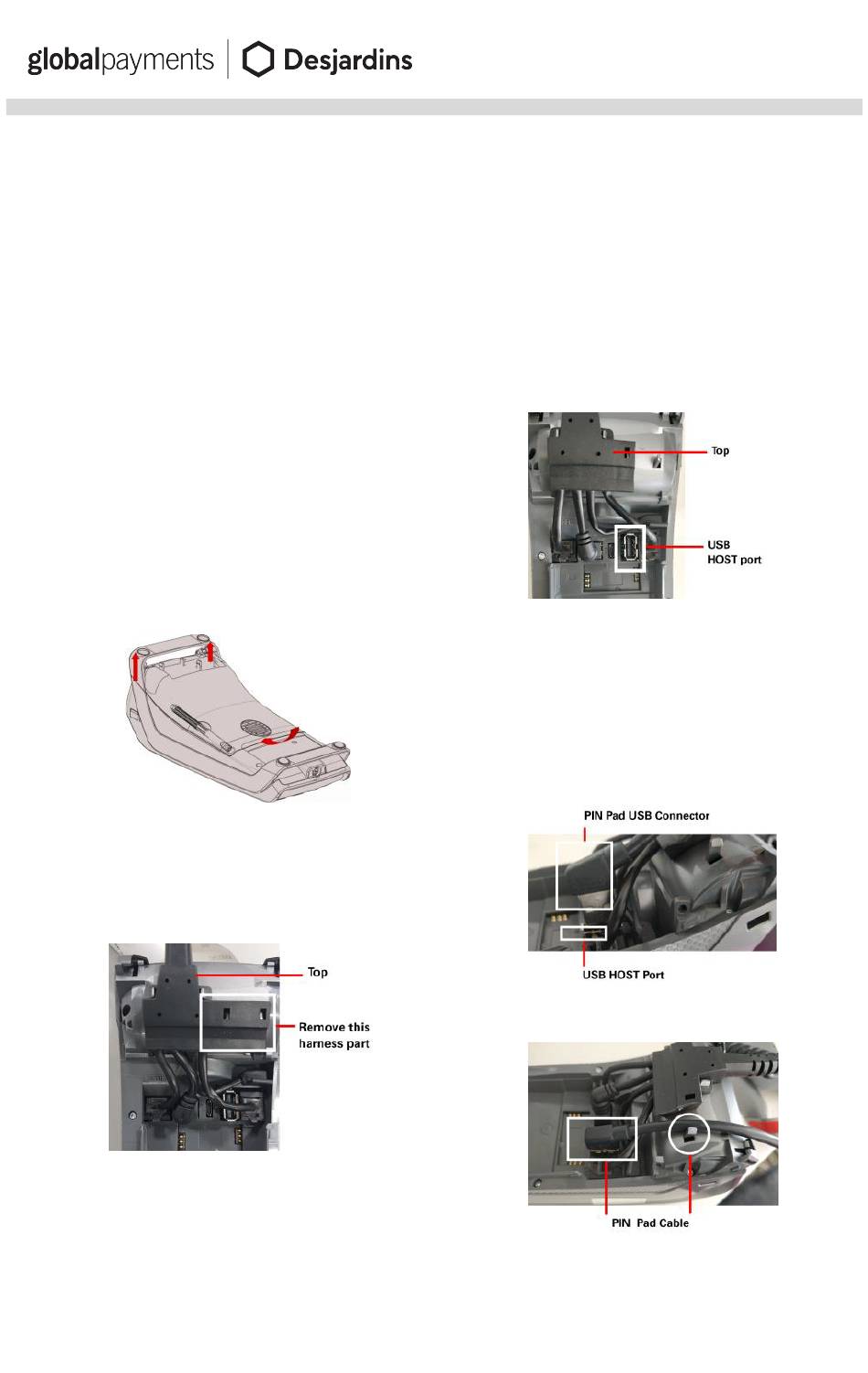

Installation Steps
Step 1 1. Ensure the power supply is
removed before proceeding to
step 2.
Step 2 2. Place the terminal face down.
Unclip the trapdoor by pushing
on the clip with your finger, as
shown in the figure below. Lift
the trapdoor rearward to
remove it, as shown by the
arrows in the diagram below.
Step 3 Remove the harness part of the
terminal cable by cutting it off.
3.
Step 4 4. Identify the USB Host port on
the terminal.
Step 5 Plug the PIN Pad USB
connector into the USB Host
port of the terminal. NOTE:
Ensure the PIN Pad cable is
placed as outlined in Figure B.
Figure A:
Figure B:
