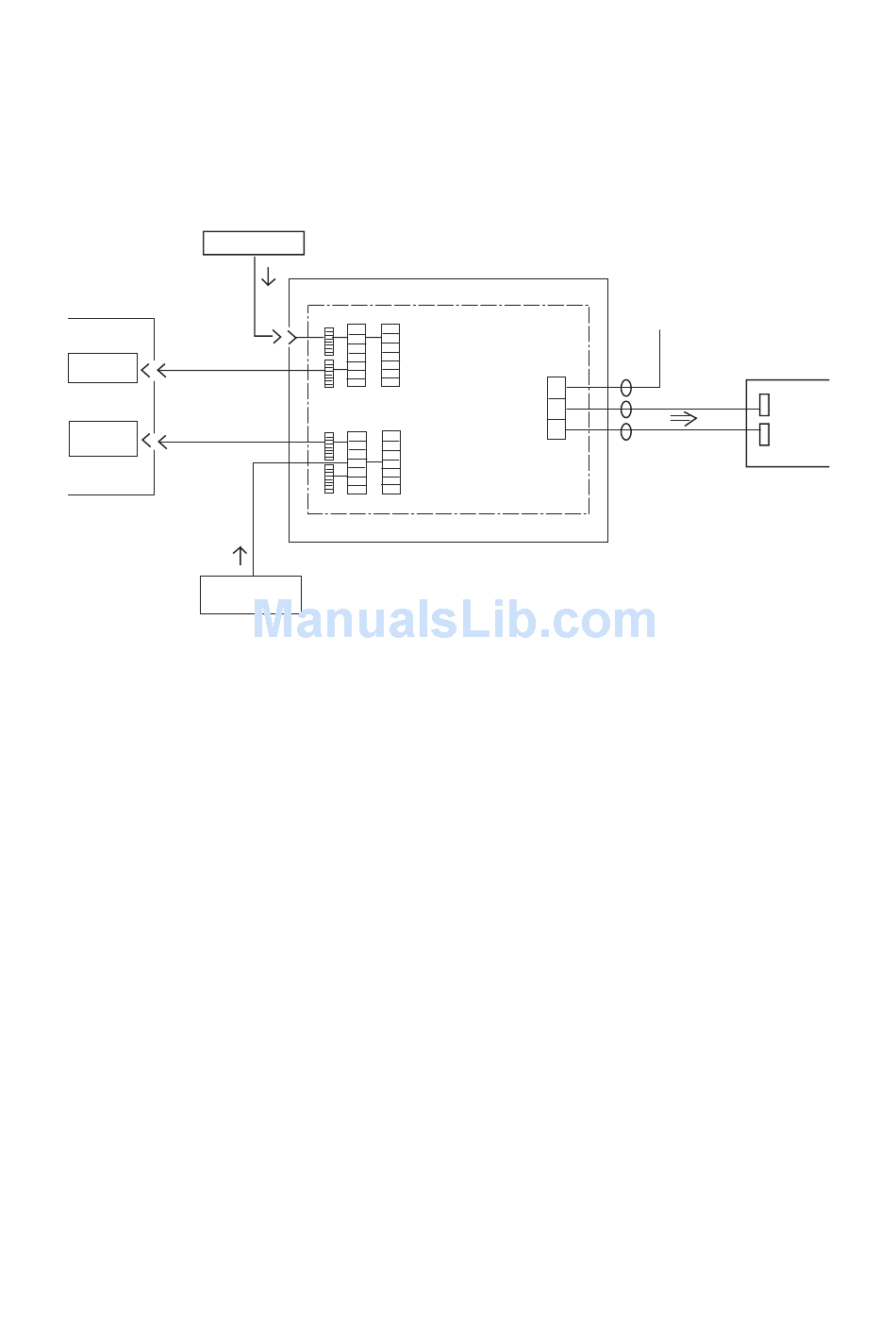

Example of connection
When a wing handset is used, the connection is made as shown in the figure below.
HANDSET
FM-8700
FM10PS-6H
HANDSET
CC490, 1m
WING
HANDSET
CC491, 1m
HANDSET
Connection of handset and wing handset
Audio level is adjusted by DIP switches in the interface unit after installation.
CN2
CN3
CN1
*
CN4
CN5
CN6
CN7
*
*
CN8
TTYC-4S
WING
X2
IF-5200
*
*
OUT1**
*
OUT2**
CN9
**: Mixed signal may be output with out1 and out2.
*: Secure each cables inside the cable entries with
cable ties.
6
24 VDC
TTYCS-1
VR-5000
VHF1
TTYCS-1
VHF2
TTYCS-1
