Item # 1004324873
Model # SK19238Dr1
USE AND CARE GUIDE

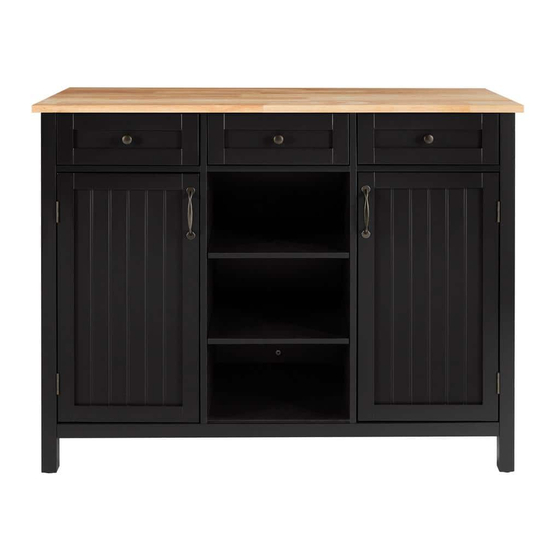

KITCHEN ISLAND
Questions, problems, missing parts?
Before returning to the store, call Customer Service.
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-877-527-0313
HOMEDEPOT.COM
THANK YOU
We appreciate the trust and confidence you have placed in StyleWell through the purchase of this kitchen island. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank
you for choosing StyleWell!
Advertisement
Table of Contents
Related Manuals for StyleWell SK19238Dr1
Summary of Contents for StyleWell SK19238Dr1
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in StyleWell through the purchase of this kitchen island. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank...
-
Page 2: Table Of Contents
Table of Contents Tools Required .................4 Table of Contents ............2 Safety Information ............2 Hardware Included ..............4 Warranty ................. 3 Pre-assembly (continued) ..........5 1 Year Warranty ...............3 Package Contents ..............5 ... -
Page 3: Warranty
Warranty 1 YEAR WARRANTY WHAT IS COVERED We guarantee this product to be free of manufacturing defects to the original purchaser for one year. WHAT IS NOT COVERED This warranty does not cover commercial use, acts of nature, and abusive use. HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance. -
Page 4: Pre-Assembly
Pre-assembly PLANNING ASSEMBLY Keep children and pets away from build area. Make sure your area is large enough to unpack, sort and assemble the unit. TOOLS REQUIRED Large head Small head Phillips Phillips screwdriver screwdriver HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity... -
Page 5: Pre-Assembly (Continued)
Pre-assembly (continued) PACKAGE CONTENTS Part THD Table Header, 10 pt. Quantity Top panel Left side panel Right side panel Left partition Right partition Crossbar Center adjustable shelf Side adjustable shelf Bottom panel Left door Right door Left side support Right side support Top back panel Bottom back panel Drawer front panel... -
Page 6: Assembly
Assembly Attaching the magnet □ Attach magnet (GG) to partitions (E) and (D) with screw (FF) as shown. - Page 7 Assembly (continued) Attaching the bar to right partition □ □ a) Install dowel (AA) and bolt (BB) into partition (E). c) Join bar (F) to the partition (E). □ □ b) Insert lock (CC) into bar (F). d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes. HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
- Page 8 Assembly (continued) Attaching the left partition □ □ a) Install dowel (AA) and bolt (BB) into partition (D). c) Join bar (F) to the partition (D). □ □ b) Insert lock (CC) into bar (F). d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes.
- Page 9 Assembly (continued) Attaching the back panel to the bottom panel □ □ a) Install dowel (AA) and bolt (BB) into panel (I). c) Join panel (O) to the panel (I) with dowel (AA). □ d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes. □...
- Page 10 Assembly (continued) Attaching the partition to the bottom panel □ □ a) Install dowel (AA) and bolt (BB) into panel (I). c) Join panel (I) to the assembled body with dowel (AA). □ □ b) Insert lock (CC) into partitions (D) and (E). d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes.
- Page 11 Assembly (continued) Attaching the bar to left partition □ □ a) Install dowel (AA) and bolt (BB) into partition (D). c) Join bar (F) to the assembled body with dowel (AA). □ □ b) Insert lock (CC) into bar (F). d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes.
- Page 12 Assembly (continued) Attaching the bar to right partition □ □ a) Install dowel (AA) and bolt (BB) into partition (E). c) Join bar (F) to the assembled body with dowel (AA). □ □ b) Insert lock (CC) into bar (F). d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes.
- Page 13 Assembly (continued) Attaching the left side panel □ □ a) Install dowel (AA) and bolt (BB) into panel (B). c) Join panel (B) to the assembled body with dowel (AA). □ □ d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes. □...
- Page 14 Assembly (continued) Attaching the right side panel □ □ a) Install dowel (AA) and bolt (BB) into panel (C). c) Join panel (C) to the assembled body with dowel (AA). □ d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes. □...
- Page 15 Assembly (continued) Attaching the support □ Tighten support (L) and (M) with screw (MM). HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
- Page 16 Assembly (continued) Attaching the top panel □ □ a) Install bolt (BB) into panel (A). c) Join panel (A) to the assembled body with dowel (AA). □ b) Insert lock (CC) and dowel (AA) into panel (B), (C) and (N), and partitions (D) and (E). □...
- Page 17 Assembly (continued) Assembling the adjustable shelf □ Insert shelf supports (HH) in desired positions and place shelves (H) and (G) on the supports. HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
- Page 18 Assembly (continued) Attaching the door □ a) Attach left door (J) and right door (K) to the assembled body with screw (II) as shown. □ b) Attach handle (JJ) to door (J) and door (K) with the bolt (KK). NOTE: A helper who can hold the door in position makes the door installation easier.
- Page 19 Assembly (continued) Assembling the drawer □ a) Tighten panels (Q) and (R) to the panel (P) □ c) Tighten panel (S) to the assembled body with screw (EE). with screw (EE). □ □ b) Slide panel (T) into the grooves on d) Tighten knob (LL) to panel (P) with bolt (NN).
- Page 20 Assembly (continued) Finalizing the assembly □ Insert the six drawers into the assembled body as shown. NOTE: Make sure the slide piece is at the front end of the glide when installing the drawer into the body. SAFETY RELEASE TAB NOTE: When removing the drawer, tip-up the safety release tab to remove the drawer from the body.
- Page 21 Questions, problems, missing parts? Before returning to the store, call Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-877-527-0313 HOMEDEPOT.COM Retain this manual for future use.
