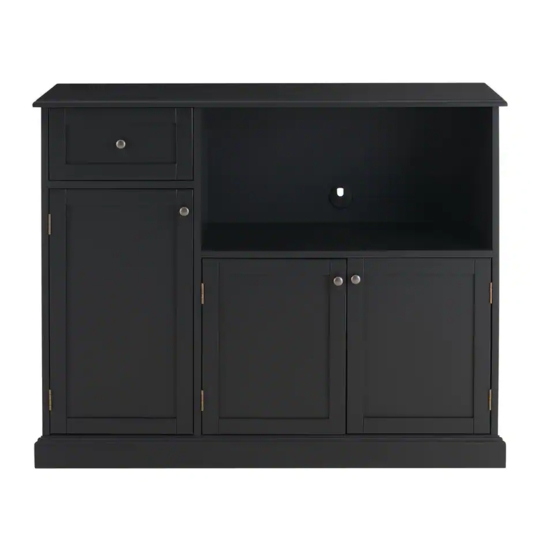

We appreciate the trust and confidence you have placed in StyleWell through the purchase of this kitchen cabinet. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank
USE AND CARE GUIDE
KITCHEN CABINET
Questions, problems, missing parts?
Before returning to the store, call Customer Service.
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
HOMEDEPOT.COM
you for choosing StyleWell!
1-877-527-0313
THANK YOU
Item # 1004237624
Model #
SK19312Br1-B
Item # 1004237630
SK19312Br1-V
Model #
Advertisement
Table of Contents
Related Manuals for StyleWell SK19312Br1-B
Summary of Contents for StyleWell SK19312Br1-B
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in StyleWell through the purchase of this kitchen cabinet. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank...
-
Page 2: Table Of Contents
Table of Contents Tools Required .................4 Table of Contents ............2 Safety Information ............2 Hardware Included ..............4 Warranty ................. 3 Pre-assembly (continued) ..........5 1 Year Warranty ...............3 Package Contents ..............5 ... -
Page 3: Warranty
Warranty 1 YEAR WARRANTY WHAT IS COVERED We guarantee this product to be free of manufacturing defects to the original purchaser for one year. WHAT IS NOT COVERED This warranty does not cover commercial use, acts of nature, and abusive use. HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance. -
Page 4: Pre-Assembly
Pre-assembly PLANNING ASSEMBLY Keep children and pets away from build area. Make sure your area is large enough to unpack, sort and assemble the unit. TOOLS REQUIRED Large head Small head Phillips Phillips screwdriver screwdriver HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity... -
Page 5: Pre-Assembly (Continued)
Pre-assembly (continued) PACKAGE CONTENTS Part Description Quantity Top panel Left side panel Right side panel Partition fixed panel Crossbar Left adjustable shelf Bottom panel Large Door Left door Right door Right adjustable shelf Back panel Drawer front panel Drawer left side panel Drawer right side panel Drawer back panel Drawer bottom panel... -
Page 6: Assembly
Assembly Attaching the crossbar to the left side panel □ □ a) Install dowel (AA) and bolt (BB) into panel (B). c) Join bar (F) to panel (B) with dowel (AA). □ b) Attach magnet (KK) to bar (F) with screw (FF). □... - Page 7 Assembly (continued) Attaching the partition □ □ a) Install dowel (AA) and bolt (BB) into partition (D). c) Join partition (D) to the assembled body with dowel (AA). □ □ b) Insert lock (CC) into bar (F). d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes. HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
- Page 8 Assembly (continued) Attaching the fixed panel □ □ a) Install dowel (AA) and bolt (BB) into partition (D). c) Join panel (E) to the assembled body with dowel (AA). □ d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes. □...
- Page 9 Assembly (continued) Attaching the right side panel □ □ a) Install dowel (AA) and bolt (BB) into panel (C). c) Join panel (C) to the assembled body with dowel (AA). □ □ b) Insert lock (CC) into panel (E). d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes. HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
- Page 10 Assembly (continued) Attaching the bottom panel □ □ a) Install dowel (AA) and bolt (BB) into panel (H). c) Join panel (H) to the assembled body with dowel (AA). □ □ b) Insert lock (CC) into panels (B) and (C), and partition (D). d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes.
- Page 11 Assembly (continued) Attaching the top panel □ □ a) Install dowel (AA) and bolt (BB) into panel (A). c) Join panel (A) to the assembled body with dowel (AA). □ □ b) Insert lock (CC) into panels (B) and (C), and partition (D). d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes.
- Page 12 Assembly (continued) Attaching the back panel □ a) Install wire plug (GG) into panel (M) as shown. □ b) Tighten panel (M) to the assembled body with screws (FF) as shown.
- Page 13 Assembly (continued) Assembling the adjustable shelf □ Insert shelf supports (HH) in desired positions and place shelves (G) and (L) on the supports. HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
- Page 14 Assembly (continued) Attaching the door □ a) Attach doors (I), (J) and (K) to the assembled body with screw (LL) as shown. □ b) Tighten knob (JJ) to doors (I), (J) and (K) with long bolt (II). NOTE: A helper who can hold the door in position makes the door installation easier.
- Page 15 Assembly (continued) Assembling the drawer □ □ a) Tighten panels (O) and (P) to the panel (N) with screw (EE). c) Tighten panel (Q) to the assembled body with screw (EE). □ b) Slide panel (R) into the grooves on panels (O) and (P). □...
- Page 16 Assembly (continued) Inserting the drawer □ Insert the drawer into the assembled body as shown. NOTE: Make sure the slide piece is at the front end of the glide when installing the drawer into the body. SAFETY RELEASE TAB NOTE: When removing the drawer, tip-up the safety release tab to remove the drawer from the body.
- Page 17 Assembly (continued) Finalizing the assembly □ Install the anti-tipping hardware as shown. HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
- Page 18 Questions, problems, missing parts? Before returning to the store, call Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-877-527-0313 HOMEDEPOT.COM Retain this manual for future use.
