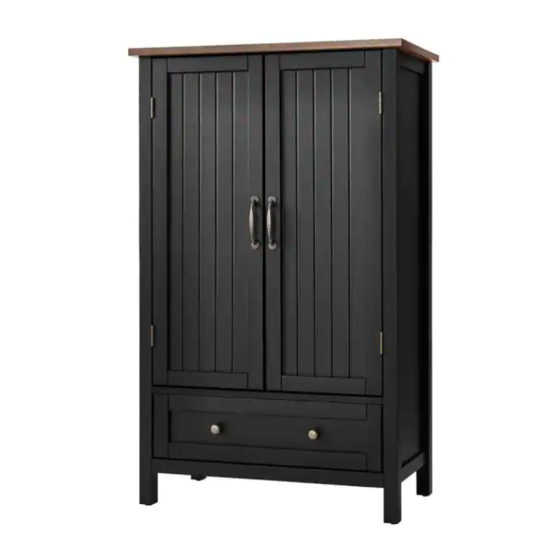

We appreciate the trust and confidence you have placed in StyleWell through the purchase of this kitchen pantry storage cabinet. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
USE AND CARE GUIDE
KITCHEN PANTRY STORAGE CABINET
Questions, problems, missing parts?
Before returning to the store, call Customer Service.
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
HOMEDEPOT.COM
improvement needs. Thank you for choosing StyleWell!
1-877-527-0313
THANK YOU
Item # 1004400447
Model # SK19238Ar1-B
Item # 1004400449
Model # SK19238Ar1-V
Advertisement
Table of Contents
Related Manuals for StyleWell SK19238Ar1-B 1004400447
Summary of Contents for StyleWell SK19238Ar1-B 1004400447
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in StyleWell through the purchase of this kitchen pantry storage cabinet. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
-
Page 2: Table Of Contents
Table of Contents Tools Required .................4 Table of Contents ............2 Safety Information ............2 Hardware Included ..............4 Warranty ................. 3 Pre-assembly (continued) ..........5 1 Year Warranty ...............3 Package Contents ..............5 ... -
Page 3: Warranty
Warranty 1 YEAR WARRANTY WHAT IS COVERED We guarantee this product to be free of manufacturing defects to the original purchaser for one year. WHAT IS NOT COVERED This warranty does not cover commercial use, acts of nature, and abusive use. HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance. -
Page 4: Pre-Assembly
Pre-assembly PLANNING ASSEMBLY Keep children and pets away from build area. Make sure your area is large enough to unpack, sort and assemble the unit. TOOLS REQUIRED Large head Small head Phillips Phillips screwdriver screwdriver HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity... -
Page 5: Pre-Assembly (Continued)
Pre-assembly (continued) PACKAGE CONTENTS Part Description Quantity Top panel Left side panel Right side panel Adjustable shelf Fixed panel Bottom panel Back panel Left door Right door Drawer front panel Drawer left side panel Drawer right side panel Drawer back panel Drawer bottom panel Support bar HOMEDEPOT.COM... -
Page 6: Assembly
Assembly Attaching the fixed panel and bottom panel to left side panel □ □ a) Install dowel (AA) and bolt (BB) into panel (B). c) Join panels (E) and (F) to panel (B) with dowel (AA). □ b) Insert lock (CC) into panels (E) and (F). □... - Page 7 Assembly (continued) Attaching the right side panel □ □ a) Install dowel (AA) and bolt (BB) into panel (C). c) Join panel (C) to the assembled body with dowel (AA). □ □ b) Insert lock (CC) into panels (E) and (F). d) Tighten bolt (BB) with lock (CC) in the pre-drilled holes.
- Page 8 Assembly (continued) Attaching the top panel □ □ a) Install dowel (AA) into panel (A). c) Attach panel (A) with washers (KK) and (GG), and bolt (JJ). Turn and tighten bolt (JJ) with wrench (II). Attach magnet (PP) to panel (A) with screw (FF). □...
- Page 9 Assembly (continued) Attaching the back panel □ a) Install wire plug (OO) into panel (G) as shown. □ b) Tighten panel (G) to the assembled body with screws (FF) as shown. HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
- Page 10 Assembly (continued) Attaching the adjustable shelf □ Insert shelf supports (HH) in desired positions and place shelf (D) on the supports.
- Page 11 Assembly (continued) Attaching the door □ a) Attach doors (H) and (I) to the assembled body with screw (QQ) as shown. NOTE: Metal plate needs to be to the top. □ b) Attach handle (NN) to doors (H) and (I) with the handle bolt (LL). NOTE: A helper who can hold the door in position makes the door installation easier.
- Page 12 Assembly (continued) Assembling the drawer □ □ d) Slide panel (N) into the grooves on panels (K) and (L). a) Install dowel (AA) and bolt (BB) into panel (J). Tighten bolt (BB) with lock (CC) in the pre-drilled hole. □ □...
- Page 13 Assembly (continued) Inserting the drawer □ Insert the drawer into the assembled body as shown. NOTE: Make sure the slide piece is at the front end of the glide when installing the drawer into the body. NOTE: When removing the drawer, tip-up the safety release tab to remove the drawer from the body.
- Page 14 Assembly (continued) Finalizing the assembly □ Install the anti-tipping hardware as shown.
- Page 15 Questions, problems, missing parts? Before returning to the store, call Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-877-527-0313 HOMEDEPOT.COM Retain this manual for future use.
