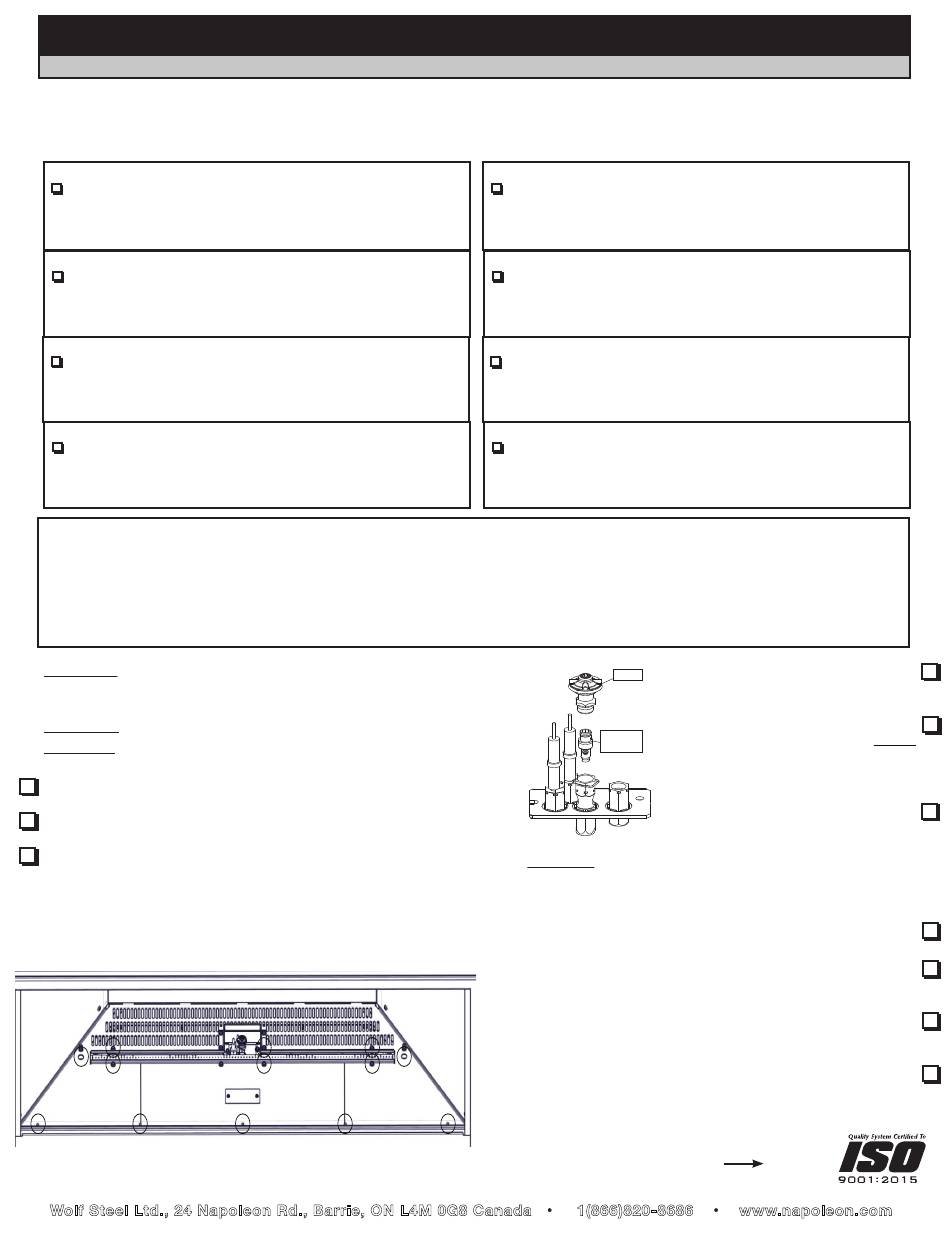

Napoleon (C)BL36-1 Quick Start Manual

INSTALLER: THESE INSTRUCTIONS ARE TO REMAIN WITH THE HOME OWNER.
CHECK THE BOXES TO INDICATE THAT THE CORRESPONDING STEPS HAVE BEEN COMPLETED.
ALTERNATE ELECTRONIC IGNITION FUEL CONVERSION FOR MODEL
Kit W175-0765A, Natural Gas to Propane Includes;
1 REGULATOR
1 #56 BURNER ORIFICE
1 #35 PILOT ORIFICE (P)
1 CONVERSION DATA LABEL
Kit W175-, Natural Gas to Propane Includes;
1 REGULATOR
1 #55 BURNER ORIFICE
1 #35 PILOT ORIFICE (P)
1 CONVERSION DATA LABEL
Kit W175-0767A, Natural Gas to Propane Includes;
1 REGULATOR
1 #53 BURNER ORIFICE
1 #35 PILOT ORIFICE (P)
1 CONVERSION DATA LABEL
Kit W175-, Natural Gas to Propane Includes;
1 REGULATOR
1 #53 BURNER ORIFICE
1 #35 PILOT ORIFICE (P)
1 CONVERSION DATA LABEL
This conversion kit shall be installed by a qualified service agency in accordance with the manufacturer's
instructions and all applicable codes and requirements of the authority having jurisdiction. If the information in
these instructions is not followed exactly, a fire, explosion or production of carbon monoxide may result causing
property damage, personal injury or loss of life. The qualified service agency is responsible for the proper
installation of this kit. The installation is not proper and complete until the operation of the converted appliance
is checked as specified in the owner instructions supplied with the kit.
WARNING: Failure to position the parts in accordance with these
diagrams or failure to use only parts specifically approved with
this appliance may result in property damage or personal injury.
WARNING: If conversion kit is dropped, it must be replaced.
CAUTION: Before proceeding with conversion the gas supply
must be shut off prior to disconnecting the electrical power.
1. See the instruction manual to remove the front facing, glass viewing
door, and log set.
2. Remove the 13 securing screws (Fig. 1) and remove the burner
assembly by sliding it to the right and lifting out.
3. Using a deep socket wrench, remove the main burner orifice. A back-
up wrench must be used on the manifold (located below the housing)
to ensure the aluminum tubing does not twist or kink. Replace with
the supplied burner orifice using pipe thread compound.
Fig. 1
LOG SUPPORT SCREWS
Wolf Steel Ltd., 24 Napoleon Rd., Barrie, ON L4M 0G8 Canada
(C)BL36 / 42 / 46 / 56
These kits are for use at altitudes of 0 to 4500 feet.
(C)BL36-1
(C)BL42
(C)BL46
(C)BL56
(C)BL36-1
Kit W175-0766A, Propane to Natural Gas Includes;
1 REGULATOR
1 #48 BURNER ORIFICE
1 #62 PILOT ORIFICE (NG)
1 CONVERSION DATA LABEL
(C)BL42
Kit W175-, Propane to Natural Gas Includes;
1 REGULATOR
1 #45 BURNER ORIFICE
1 #62 PILOT ORIFICE (NG)
1 CONVERSION DATA LABEL
(C)BL46
Kit W175-0768A, Propane to Natural Gas Includes;
1 REGULATOR
1 #43 BURNER ORIFICE
1 #62 PILOT ORIFICE (NG)
1 CONVERSION DATA LABEL
(C)BL56
Kit W175-, Propane to Natural Gas Includes;
1 REGULATOR
1 #41 BURNER ORIFICE
1 #62 PILOT ORIFICE (NG)
1 CONVERSION DATA LABEL
HOOD
PILOT
ORIFICE
DANGER: Ensure regulator is seated correctly so full
gasket contact is made and seals. Test for leaks. Leaks CAPUCHON DE
LA VEILLEUSE
between the regulator and main valve body will cause
main gas to flow immediately, before proving the pilot.
7. The conversion data label must be filled out and attached adjacent
INJECTEUR DE
to the valve.
VEILLEUSE
8. Tu r n o n t h e g a s s u p p l y a n d c h e c k f o r g a s l e a k s
b y b r u s h i n g o n a s o a p a n d w a t e r s o l u t i o n .
DO NOT USE OPEN FLAME.
9. Replace the log set, then light the pilot and main burner to ensure
that the gas lines have been purged. Purge all gas lines with the
glass door open.
10. Replace the glass viewing door and front facing. Assure that a
continuous flow is at the burner before replacing the door
and turning on the electrical supply to the appliance.
Continued on reverse
1(866)820-8686
4. Loosen and remove the pilot tube
fitting from the pilot housing. Replace
the injector and re-assemble.
5. Re-install the burner, ensuring the
venturi tube fits over the orifice. NOTE:
Check and adjust the primary air to
match the Venturi Adjustment table
on the next page. Replace the screws.
6. To convert the main valve to the
desired fuel, follow the instructions that are
supplied with the regulator assembly kit.
W415-3087 / C / 12.13.21
www.napoleon.com
