O W N E R ' S M A N U A L

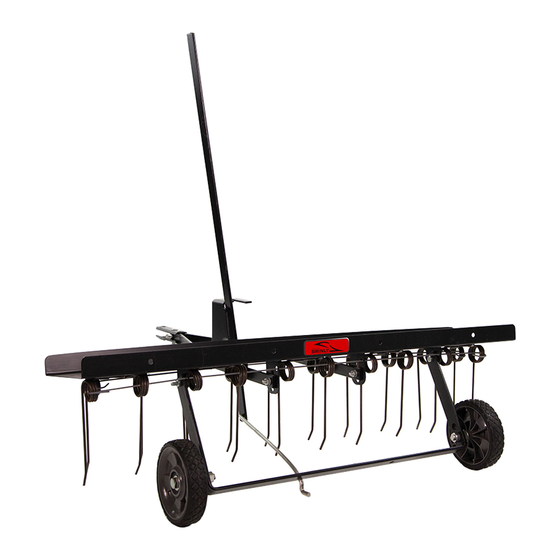

D E T H A T C H E R
MODEL:
DT-400 BH
Assembly
Installation
Operation
Repair Parts
For the latest product updates and setup tips:
Visit us on the web!
www.brinly.com
All manuals and user guides at all-guides.com
Important: This manual contains information for the safety of
persons and property. Read it carefully before assembly and
operation of the equipment!
L-1383-02
Advertisement
Related Manuals for Brinly DT-400 BH
Summary of Contents for Brinly DT-400 BH
- Page 1 All manuals and user guides at all-guides.com O W N E R ' S M A N U A L D E T H A T C H E R MODEL: DT-400 BH Assembly Installation Operation Repair Parts For the latest product updates and setup tips: Important: This manual contains information for the safety of persons and property.
- Page 2 All manuals and user guides at all-guides.com the vehicle while in operation. CONGRATULATIONS on your new Brinly-Hardy Dethatcher! Your dethatcher has been designed, engineered and Keep the vehicle and attachment in good operating manufactured to give you the best possible dependablility and condition and keep safety devices in place.
- Page 3 All manuals and user guides at all-guides.com Tools Required for Assembly: * 1/2" wrench (2) * Medium Size Adjustable Wrenches or20 * Adjustable Wrench and set of open wrenches L-1383-02...
- Page 4 All manuals and user guides at all-guides.com Parts Reference 21 22 L-1383-02...
- Page 5 INSTALLA TION QUESTIONS? MISSING PARTS? REPLACEMENT PARTS? ST T S S T TO O P To Order Parts Call: Please call our Customer Service 877-728-8224 Department Toll-Free at 877.728.8224 w w ww.customerservice Visit us on the web: www.brinly.com @brinly.com L-1383-02...
- Page 6 All manuals and user guides at all-guides.com Figure 1. 5/16" Hex Nut 5/16" Lock Washer Qty. 10 Qty. 10 Dimples up Special Washe Qty t . 1 Qty t . 1 5/16" x 1" Carriage Bolt Qty. 10 Figure 2. FRONT Safety Wire bent end...
- Page 7 All manuals and user guides at all-guides.com Figure 3. 5/16" x 1" Carriage Bolt Qty. 4 5/16" Flat Washer Qty. 4 NOTE: Hand tighten drawbar fasteners until final adjustments are complete. (see fig. 9) 5/16" Lock Washer Qty. 4 5/16" Hex Nut Qty.
- Page 8 All manuals and user guides at all-guides.com Figure 5. 5/16" x 2" Carriage Bolt 5/16" Hex Nut 5/16" Lock Washer Qty. 2 Qty. 2 Qty. 2 Hairpin Cotter, 1/8" Drawbar Pin Qty. 1 Qty. 1 Figure 6. 5/16" Hex Nut 5/16"...
- Page 9 All manuals and user guides at all-guides.com Figure 7. 5/16" Hex Nut 5/16" Lock Washer Qty. 4 Qty. 4 5/16" x 1" Carriage Bolt Qty. 4 Figure 8. 1/2" Flat Washer 1/2" Hex Nut 1/2" x 3", Hex Bolt Qty. 4 Qty.
- Page 10 All manuals and user guides at all-guides.com Figure 9. MOUNTING AND ADJUSTMENT Level Adjustment Select a smooth flat surface such as a driveway, sidewalk, garage floor etc. Height Adjustment Attach the Dethatcher to your rider tractor using Drawbar Pin (2) and Hairpin Cotter (3) Place tines on 1/2”...
- Page 11 Any parts found to be defective within the warranty period will be replaced, with proof of date of purchase, at Brinly-Hardy Company's expense. Our obligation under this warranty is expressly limited to replacement or repair, at our option of parts, which are defective in material or workmanship within thirty (30) days of receipt of the parts.
