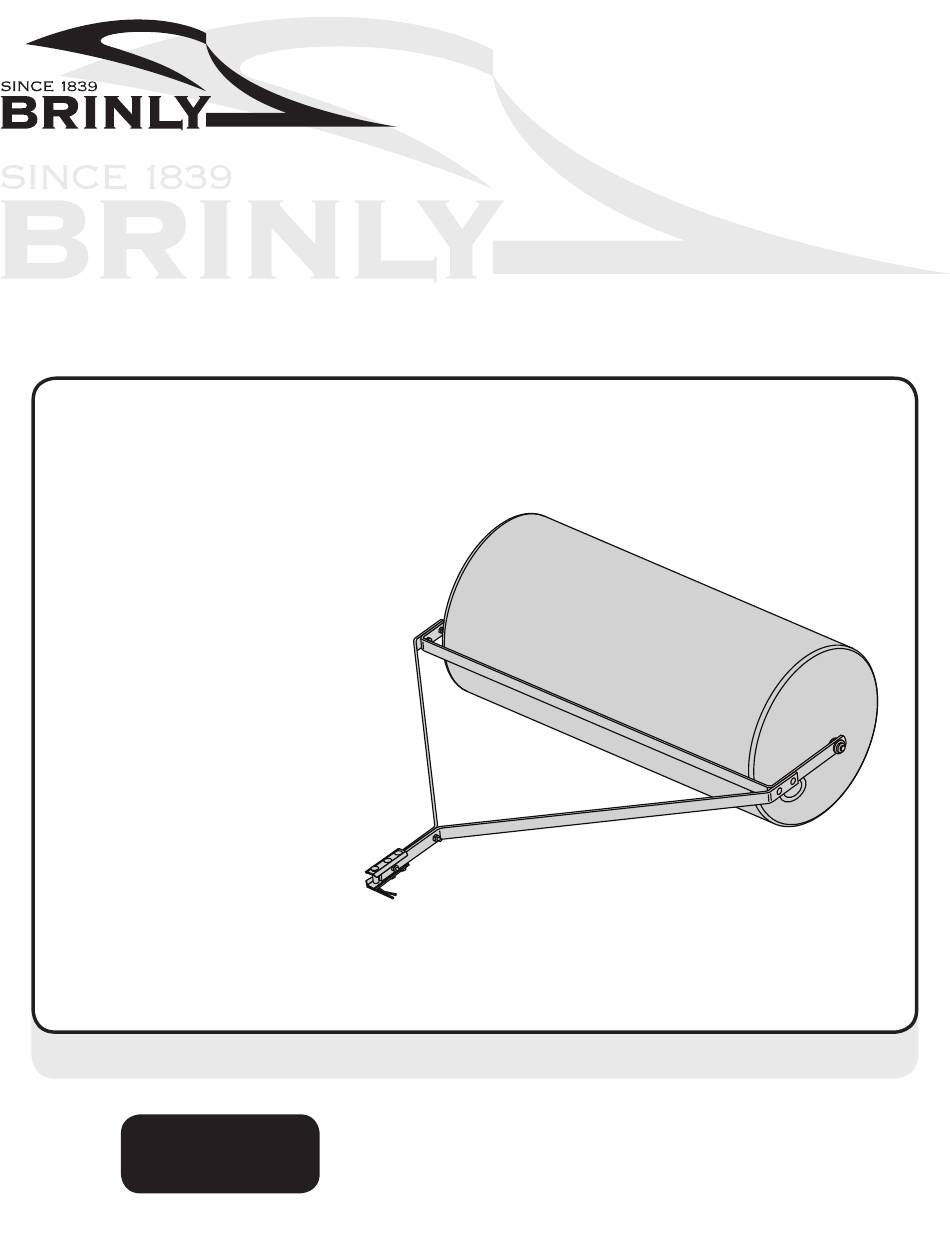

OWNER'S MANUAL
L A W N R O L L E R
ROLLER MODELS:
P R C - 2 4 1 B H
P R C - 2 4 1 B H - A
P R T - 3 6 1 B H
P R T - 3 6 1 B H - A
P R T - 3 6 1 S B H
P R T - 3 6 1 S B H - A
P R T - 4 8 1 S B H
P R T - 4 8 1 S B H C - A
• Safety
• Assembly
• Operation
• Repair Parts
• Maintenance
Visit us on the web!
www.brinly.com
English Manual
Call Customer Service, Toll-Free: 877-728-8224
Important: This manual contains information for the safety
For use with Riders, Lawn or Garden Tractors and ATV's

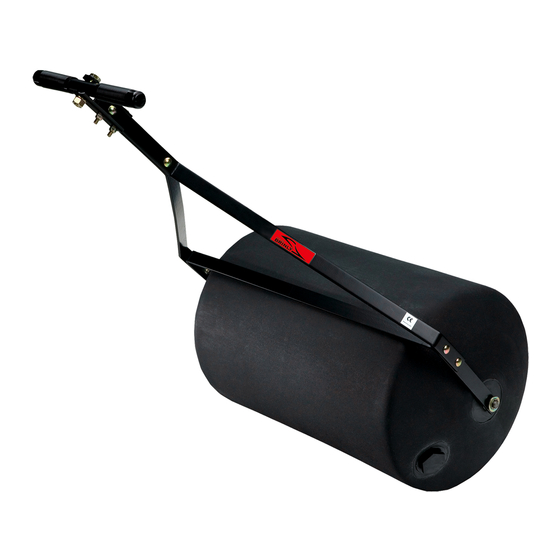

*PRC-241 BH Push version not shown.
of persons and property. Read it carefully before
assembly and operation of the equipment!
1
English, Spanish &
French Manual
L-1681BH-M

Advertisement

loading

Summary of Contents for Brinly PRC-241BH

  • Page 1 *PRC-241 BH Push version not shown. Call Customer Service, Toll-Free: 877-728-8224 Important: This manual contains information for the safety Visit us on the web! of persons and property. Read it carefully before www.brinly.com assembly and operation of the equipment! English Manual L-1681BH-M...
  • Page 2: Table Of Contents

    INTRODUCTION AND SAFETY CONGRATULATIONS on your new Brinly-Hardy Lawn Roller! This accessory has been designed, engineered and manufactured to give you the best possible dependability and performance. Should you experience any problem you cannot easily remedy, please do not hesitate to contact our knowledgeable customer service department toll-free at 1-877-728-8224.
  • Page 3: Hardware Identifier

    HARDWARE IDENTIFIER DO NOT RETURN PRODUCT IF YOU ARE MISSING PARTS. Illustrations on this page Please Call: 1 (877) 728-8224 are to scale for faster identification of hardware during assembly. Carriage Bolt Washer: Flat 5/8” (x4) ..5/16 x 1”...
  • Page 4 PARTS Handle for the PRC-241BH and PRC-241BH-A only Ref. # Description Qty. PRC-241BH PRC-241BH-A PRT-361BH PRT-361BH-A Frame Extension Bar B-3554-10 B-3554-10 B-6289-10 B-6289-10 Roller Drum Assembly B-5121 B-5121 B-6271 B-6271 Scraper Bar B-6291-10 B-6291-10 B-6272-10 B-6272-10 5/16” x 1”, Carriage Bolt...
  • Page 5 PARTS A Tethered Plug comes with models: PRC-241BH-A, Handle for PRC-241 BH only PRT-361BH-A, PRT-361SBH-A and PRT-481SBHC-A Ref. # Description Qty. PRT-361SBH PRT-361SBH-A PRT-481SBH PRT-481SBHC-A Frame Extension Bar B-5357-10 B-5357-10 B-6290-10 B-6290-10 Roller Drum Assembly B-5353-B B-5353-B B-5789-B B-5789-B Scraper Bar...
  • Page 6: Assembly

    ASSEMBLY Assembly Tip You can check out our step-by-step Lawn Roller assembly video by visiting our Brinly YouTube page, Brinly.com, or by scanning this QR code with your smartphone. WE RECOMMEND THE FOLLOWING STEPS FOR THE CARE OF YOUR ROLLER TO PREVENT...
  • Page 7 ASSEMBLY Assembly Step 1 Attaching the Scraper Bar Hardware Panel A Add a 5/8” flat washer (7) to the Roller Drum (2) as illustrated. Slide a square bearing (10) into the large square hole at the end of the Scraper Bar (3) and add to the Roller Drum.
  • Page 8 ASSEMBLY NOTE: Do not tighten the lock nuts added on this step completely (until Assembly Step 4-A is complete). Assembly Step 3 Connecting the Frame Extension Bars Hardware Panel C Center the Spacer (12) between the second hole of the Extension Bars (1) and run a 5/16”...
  • Page 9 ASSEMBLY PRT-361 BH, PRT-361S BH & PRT-481S BH: Attaching the Clevis If you are assembling PRC-241BH or PRC-241BH-A: Assembly Step 5 Skip Step 5 and continue Hardware Panel D to Assembly Step 6 Add the hitch pin (13) through remaining openings of the Clevis (20) and secure with a Hitch Pin Cotter (14).
  • Page 10 ASSEMBLY Assembly Step 7 Adding the Roller Plug When installing the plug (9) please note the plug has an o-ring, ensure o-ring properly seats against the roller. A portion of the plug will extend from the roller, however, it will not interfere with the scraper bar (3).
  • Page 11 Quality Results ..3 mph Drawbar and Bed. 1. Park towing vehicle safely using the parking brake (See towing vehicle PRC-241BH (-A) operator’s manual). 2. Align Cart Clevis (20) with towing Working Width ..24”...
  • Page 12: Operation

    CAUTION! Do not overload your Tractor / Rider. keep your Lawn Roller Roller fully loaded with water weighs: clean and dry. PRC-241BH & PRC-241BH-A = 270 lbs • Occasionally check all moving parts for free movement and, if necessary, lubricate with oil.
  • Page 13 Additional info and videos are available on our website ( www.brinly.com ) OR scan one of the following QR codes: PRC-241BH PRT-361BH and PRC-241BH-A and PRT-361BH-A NOTE: Additional accesories are also available in our Parts Store online: shop.brinly.com...
  • Page 14: Warranty

    MANUFACTURER’S LIMITED WARRANTY ROLLERS The limited warranty set forth below is given by Brinly-Hardy Company with respect to new merchandise purchased and used in the United States (its possessions and territories) and Canada. Brinly-Hardy Company warrants the products listed below against to use this product.
