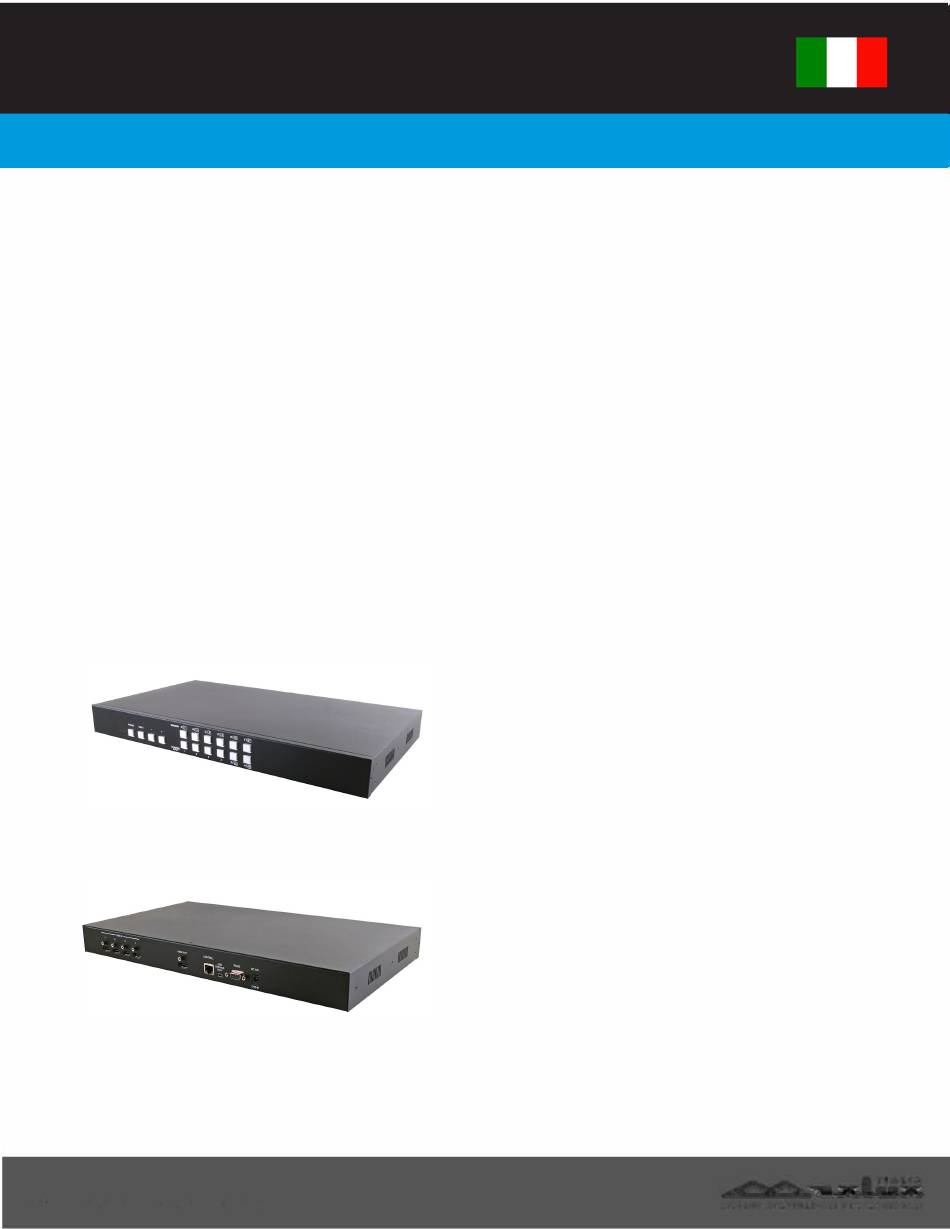

MaxLux MX0044 Manual

4x1 hdmi seamless switcher pip scaler

MX0044

4x1 HDMI Seamless Switcher PIP Scaler

INTRODUCTION

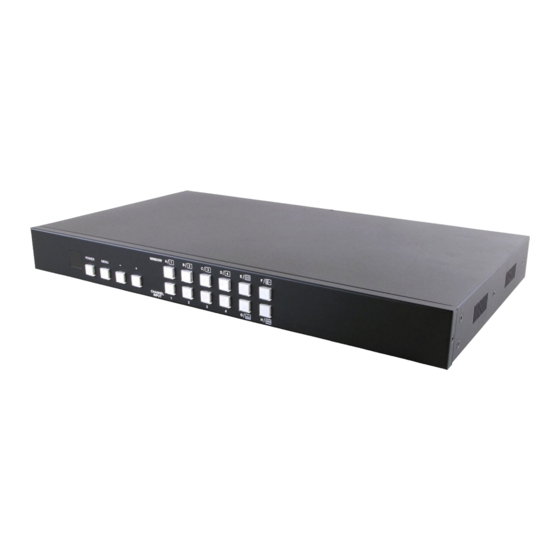

MX0044 is a high performance, seamless 4x1 switcher and scaler that can be easily configured and controlled for quad

or PIP video processing of your multiple HDMI sources.

It allows the signal from 4 HDMI sources to be freely selected and arranged on one output.

Supports full range of video resolutions up to WUXGA or 1080p and audio up to 8-channel LPCM with 192 kHz sampling

rate.

The management of the device can be done through IR, remote control, Telnet, RS-232 or front panel buttons.

• Seamless switching between channels and windows

• Zoom and Shrink 4CH input image and or to overlay them

• Supports PIP, POP and multi-windows display

• Supports OSD, RS-232, Telnet, Remote and on-panel controls

• Fade-In-Out, Chromakey, Mirror and Rotation (90˚ left & right and

180˚ up & down) functions

• 8 Screen setting hot keys and extra 4 customized favorite screen

setting

• Support individual channel size and position adjustment

maxluxitalia.com |+390200615928

ITALIA

�-

�""!l;L.X.

U.X.

SISTEMI MULTIMEDIALI PROFESSIONALI

Table of Contents

Do you have a question about the MX0044 and is the answer not in the manual?

Page 1 4x1 HDMI Seamless Switcher PIP Scaler INTRODUCTION MX0044 is a high performance, seamless 4x1 switcher and scaler that can be easily configured and controlled for quad or PIP video processing of your multiple HDMI sources. It allows the signal from 4 HDMI sources to be freely selected and arranged on one output.
Page 2 MX0044 OPERATION CONTROLS AND FUNCTION Front Panel WINDOW POWER CHANNE INPU 1 2 3 4 1 2 3 IR Window Accept IR signal from the device’s remote control included in the package. POWER Press this button to power ON the device or set it to standby mode.
Page 3 MX0044 Rear Panel HDMI IN HDMI OUT CONTROL RS232 DC 12V SERVICE ONLY HDMI IN Connect with source equipments such as DVD/Blu-ray players and or PC/NB devices. HDMI OUT Connect with HD TV/monitor for output image display at 1080p. CONTROL Connect to an active network for Telnet control.
Page 4 SPECIFICATIONS Video Bandwidth 225MHz/6.75Gbps Input Ports 4x HDMI Output Port 1 x HDMI Supports Input PC:VGA~WUXGA, HD: 480i~1080p Resolution Supports Output 1080p@60 Resolution HDMI Input Cable Up to 15M/1080p@12 bits Distance HDMI Output Cable Up to 15M/1080p@8 bits Distance Supports Sampling Rate 32~192kHz ESD Protection Human body model:...
