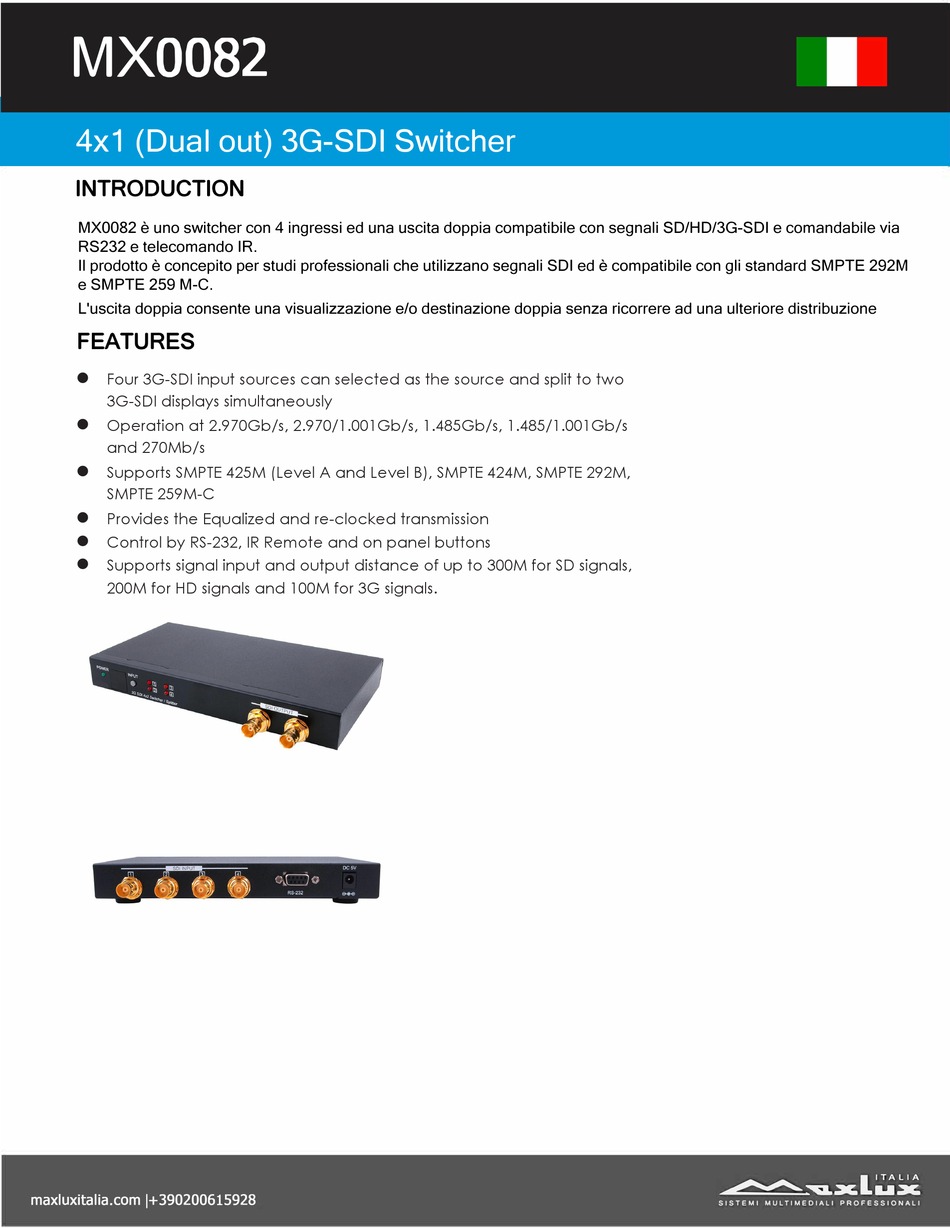

MX0082
4x1 (Dual out) 3G-SDI Switcher
INTRODUCTION
MX0082 è uno switcher con 4 ingressi ed una uscita doppia compatibile con segnali SD/HD/3G-SDI e comandabile via
RS232 e telecomando IR.
Il prodotto è concepito per studi professionali che utilizzano segnali SDI ed è compatibile con gli standard SMPTE 292M
e SMPTE 259 M-C.
L'uscita doppia consente una visualizzazione e/o destinazione doppia senza ricorrere ad una ulteriore distribuzione
FEATURES
Four 3G-SDI input sources can selected as the source and split to two
3G-SDI displays simultaneously
Operation at 2.970Gb/s, 2.970/1.001Gb/s, 1.485Gb/s, 1.485/1.001Gb/s
and 270Mb/s
Supports SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292M,
SMPTE 259M-C
Provides the Equalized and re-clocked transmission
Control by RS-232, IR Remote and on panel buttons
Supports signal input and output distance of up to 300M for SD signals,
200M for HD signals and 100M for 3G signals.
maxluxitalia.com |+390200615928
ITALIA
�-
L
�""!l;L.X.
U.X.
SISTEMI MULTIMEDIALI PROFESSIONALI
Advertisement
Table of Contents
Related Manuals for MaxLux MX0082
Summary of Contents for MaxLux MX0082
- Page 1 4x1 (Dual out) 3G-SDI Switcher INTRODUCTION MX0082 è uno switcher con 4 ingressi ed una uscita doppia compatibile con segnali SD/HD/3G-SDI e comandabile via RS232 e telecomando IR. Il prodotto è concepito per studi professionali che utilizzano segnali SDI ed è compatibile con gli standard SMPTE 292M e SMPTE 259 M-C.
- Page 2 MX0082 Operation Controls and Functio Front Panel SDI OUTPUT POWER INPUT 3G SDI 4x2 Switcher / Splitter ① ② ③ ④ ① Power LED: This green LED will illuminate when the device is connected with power supply. ② IR receiver: This IR window receives IR signal from the remote control included in the package.
- Page 3 MX0082 Connection and Installation Camcorder SDI Monitor SDI Monitor MX0041 HDMI TV/Monitor ITALIA �. � "Q..X. U iX maxluxitalia.com |+390200615928 SISTEMI MULTIMEDIALI PROFESSIONALI...
- Page 4 Specifications SMPTE Standard 425M Level A & B, 424M, 292M, 259M-C SDI Transmit ion Rates 2.970 Gbit/s and 2.970/1.001 Gbit/s Input/Output Ports 4/2 BNC (SD-SDI/HD-SDI/3G-SDI) Support Timing SD-SDI: 480i / 576i HD-SDI: 720p@50/60, 1080i@50/60, 1080p@24/25 3G-SDI: 1080p@50/60 Power Supply 5V DC/ 2.6A (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model: ±...
