MX0096

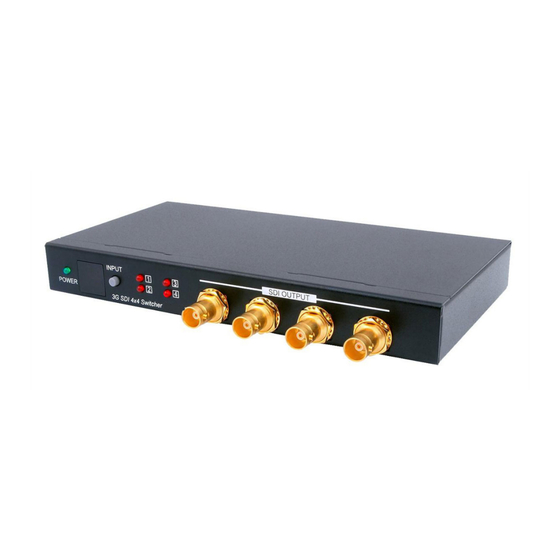

3G-SDI 4x1 Switcher
INTRODUCTION
MX0096 è uno switcher con 4 ingressi ed una uscita quadrupla compatibile con segnali SD/HD/3G-SDI e comandabile
via RS232 e telecomando IR.
L'uscita quadrupla consente una visualizzazione e/o destinazione multipla senza ricorrere ad una ulteriore distribuzione.
FEATURES
Four 3G-SDI input sources can selected as the source and split to four
3G-SDI displays simultaneously
Operation at 2.970Gb/s, 2.970/1.001Gb/s, 1.485Gb/s, 1.485/1.001Gb/s
and 270Mb/s
Supports SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292M,
SMPTE 259M-C
Provides the Equalized and re-clocked transmission
Control by RS-232, IR Remote and on panel buttons
Supports signal input and output distance of up to 300M for SD signals,
200M for HD signals and 100M for 3G signals.
