Page 1

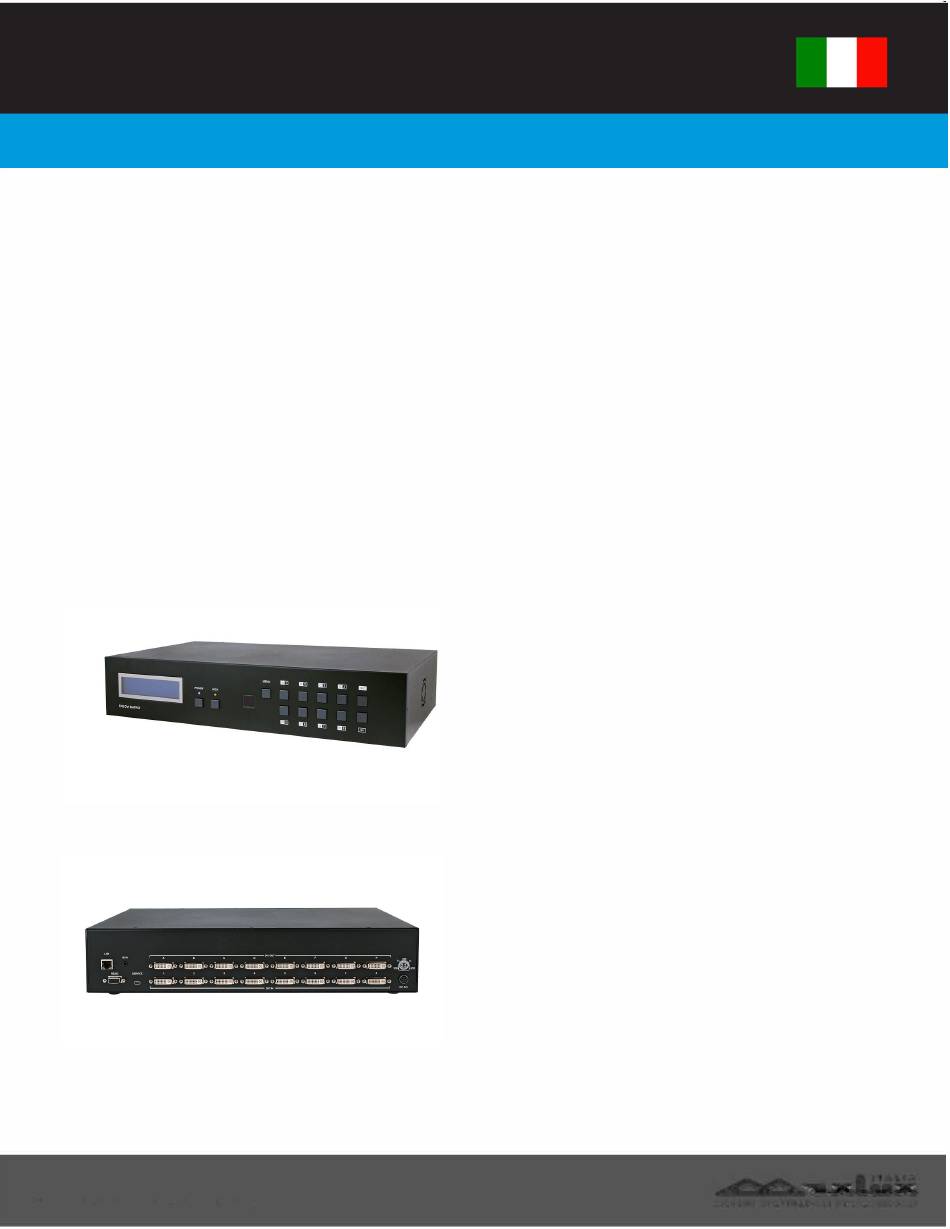

MX0101 8x8 DVI Matrix INTRODUCTION La matrice MX0101 8x8 DVI-D è un dispositivo che permette a ciascun segnale DVI-D presente su uno degli otto ingressi di essere commutato e visualizzato su una delle otto destinazioni DVI-D. La matrice supporta risoluzioni PC ed HDTV fino a WUXGA e 1080p con banda di 2,25 Gbps, profondità colore 12 bit e 3D. Il comando della matrice è...
Page 2

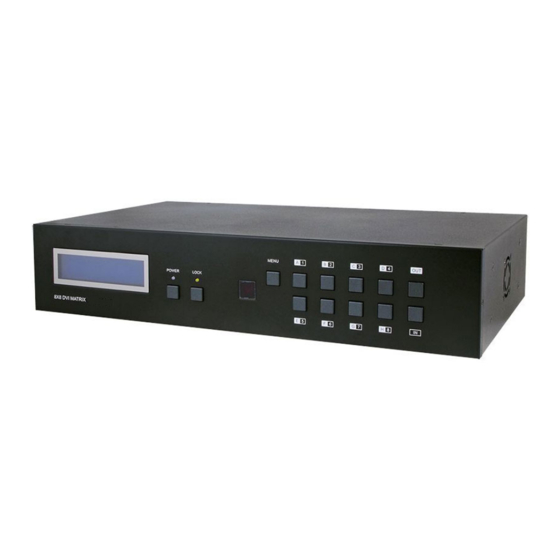

MX0101 OPERATION CONTROLS AND FUNCTIONS Front Panel MENU POWER LOCK 8X8 DVI MATRIX CMSI-8D8DSA LCM: Displays the setting information of each input and output setting. POWER: Press this button to power the device on/off. The LED will illuminate green when the power is on, red when it is in 'Standby' mode.
Page 3
MX0101 Rear Panel 3 3 3 3 DVI OUT 1 1 1 1 DC 24V DVI IN CONTROL: This port is the link for Telnet and Web GUI controls, connect to an active Ethernet link with an RJ45 terminated cable (for further details, please refer to section 6.7 &...
Page 4
SPECIFICATIONS Video Bandwidth 225MHz/6.75 Gbps Input Ports 8×DVI, 8×3.5mm Mini-jack, 1×IR, 1×RS- 232, 1×mini USB Type B (For firmware update only), 1×RJ-45 (CONTROL) Output Ports 8×DVI , 8×3.5mm Mini-jack ESD Protection Human-body Model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Power Supply 24 V/6.25 A DC (US/EU standards, CE/ FCC/UL certified)
