Technical Documentation

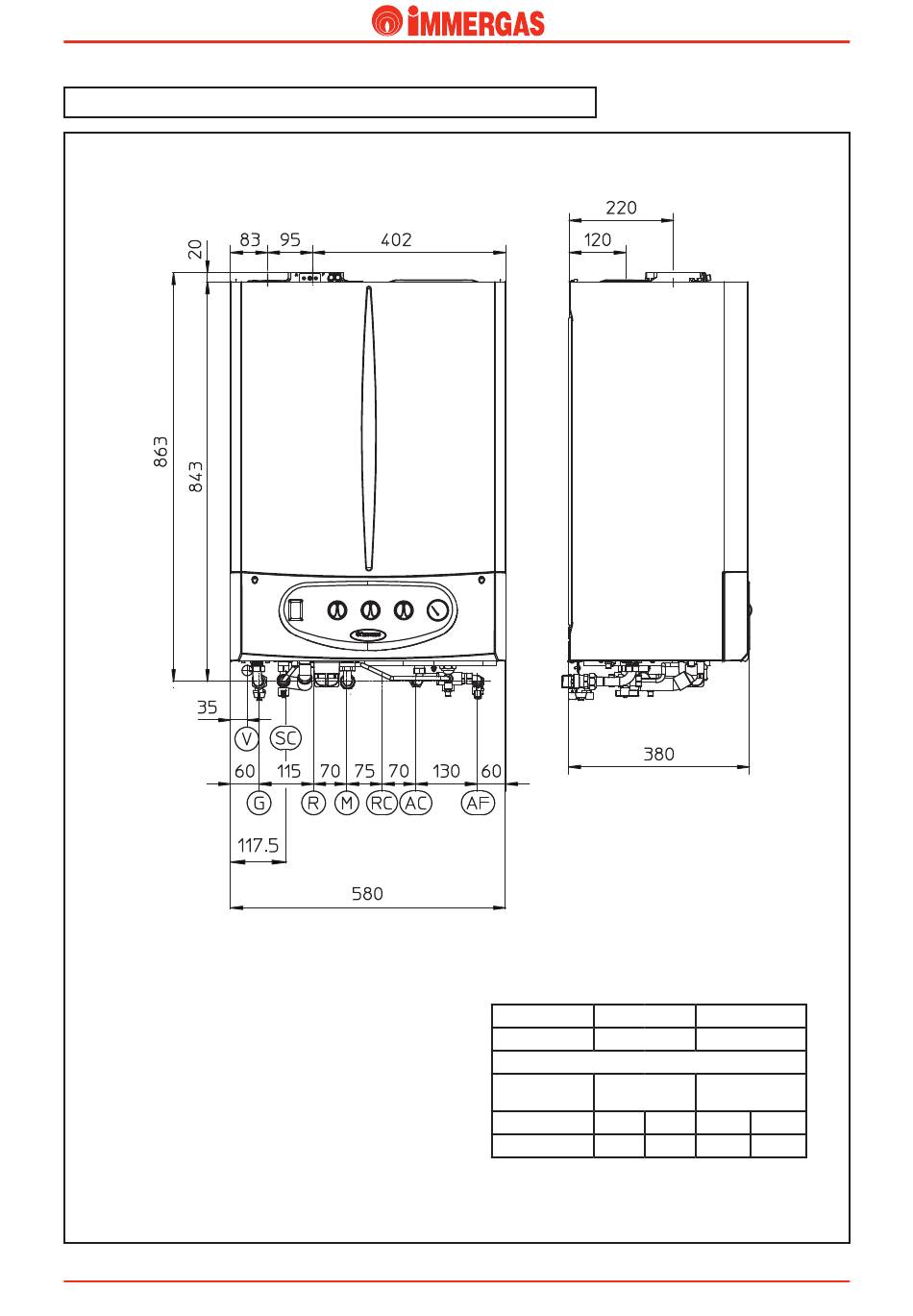

Main dimensions ad VICTRIX Zeus 1 I connections
Key:
V - Electrical connection
G - Gas supply
SC - Condensate drain (minimum internal diameter
Ø 13 mm)
R - System return
M - System flow
RC - Domestic hot water pump (optional)
AC - Domestic hot water outlet
AF - Domestic hot water inlet
N.B.: Connection group (Optional)
STVZ1I ed 10/09
Technical Documentation
Height (mm)
Width (mm)
890
CONNECTIONS
DOMESTIC
GAS
HOT WATER
G
AC
1/2"
1/2"
2
Depth (mm)
580
380
SYSTEM
AF
R
M
1/2"
3/4"
3/4"
VICTRIX Zeus 1 I
