Important notice beforehand:

Please don't forget to buy a new JBL PROFLORA CO

To guarantee you the highest reliability when using the included JBL PROFLORA CO₂ CONTROL, this control unit comes without a pH sensor� When

purchasing the unit make sure to also purchase a new pH SENSOR SET� Your specialist pet shop will have one in stock for you�

Dear customer,

Choosing to buy this highly modern JBL PROFLORA CO₂ CONTROL was an excellent decision� The latest measurement and control technology mea-

sures the pH value and temperature and regulates the pH value and supply of CO₂ reliably and fully automatically� This ensures luxuriant plant growth

and healthy fish� JBL PROFLORA CO₂ CONTROL has a coloured touch display for easy operation as well as a whole range of useful features never

before incorporated in equipment of this class� A simple multi-lingual menu guides you safely through all the menu points� The device is designed

for the control of the external solenoid valve JBL PROFLORA CO₂ VALVE� The complete equipment runs on low voltage (12V), providing the highest

possible safety�

Safety instructions

1� Operation only with solenoid valves JBL PROFLORA CO

2� Follow the safety instructions for handling CO

� These can be found on the CO₂ pressurised gas cylinders�

3� Children must be supervised to ensure that they do not play with the appliance and its power supply unit�

4� The appliance must not be used for any purpose other than that described in these instructions for use�

5� Do not operate or store the unit in places where there is a risk of frost�

6� Appliance may only be used indoors�

7� Appliance may only be used in a dry environment�

Disposal: Do not dispose of this device and the power unit in the normal household waste� Please follow your local disposal regulations for electrical

equipment�

Parts and description

Top-hat rail

Screws with dowels (2 x each)

Power supply unit 12 V DC

JBL PROFLORA CO₂ CONTROL measuring and display unit

Coloured touch display

Input socket for power supply 12 V DC

Connection for temperature sensor

BNC connection for pH sensor

12 V DC output socket for connecting cable for solenoid valve

10 Temperature sensor

10a Suction holder for temperature sensor (2 x)

11 Connecting cable for solenoid valve

12 Holder for calibration cuvettes

13 JBL PROFLORA pH SENSOR SET (please purchase separately!)

pH SENSOR SET!

VALVE or CO

sets containing such a valve�

Installation

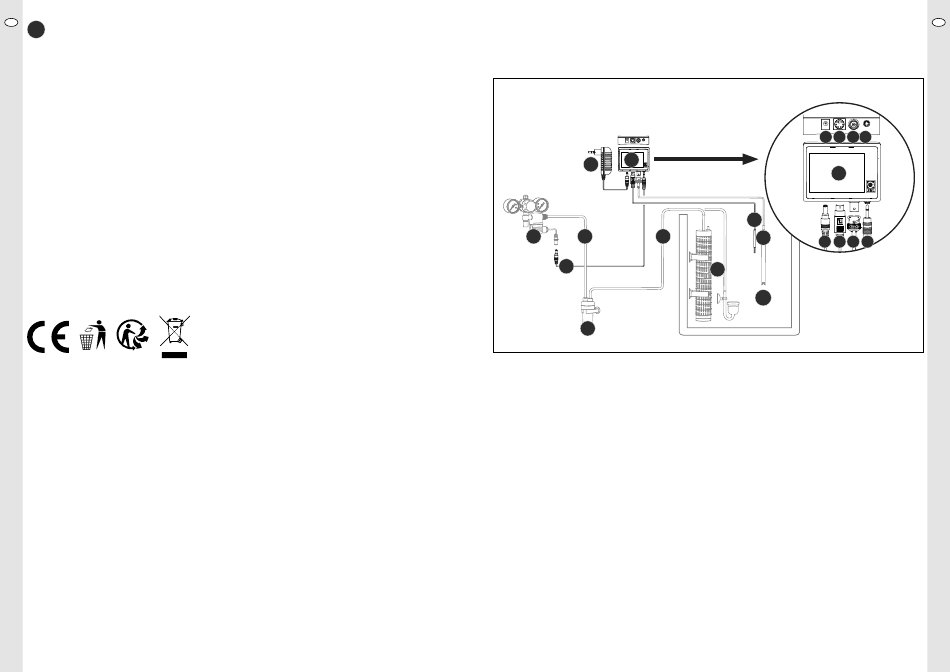

The illustration shows a typical installation example�

Measuring and control device JBL PROFLORA CO₂ CONTROL

Power supply unit

pH sensor

Temperature sensor

CO2 reactor JBL PROFLORA CO₂ TAIFUN SPIRAL

Bubble counter with integrated backflow protection JBL PROFLORA CO₂ TAIFUN COUNT SAFE

Connecting cable for solenoid valve

Solenoid valve JBL PROFLORA CO₂ VALVE

Special CO₂ hose

2.1

Mounting the JBL PROFLORA CO₂ CONTROL measurement and control device

First attach the top-hat rail in a horizontal position to the desired position on the wall near the aquarium, using the two screws supplied� Hang the

rear bracket of the device on the upper edge of the rail and click it into place by applying slight pressure from the front� (It can easily be removed

from the top-hat rail at any time by sliding it sideways�)

2.2

Installing the sensors and connecting to the power supply

Connect the plug of the pH sensor and the temperature sensor to the corresponding connections on the appliance� Do not install the two sensors in

the aquarium until calibration is complete� Connect the JBL PROFLORA CO₂ VALVE solenoid valve provided to the measuring and control device

using the solenoid valve connection cable� The connection on the device is marked "valve"� Any previous power supply unit for the solenoid valve is

no longer needed� All the connectors and plugs on the device and all the sensors and cables are designed in such a way that an incorrect connection

is not possible� Plug the universal power supply unit into a nearby power socket and insert the plug on the cable into the socket labelled 12 DC on

the device�
