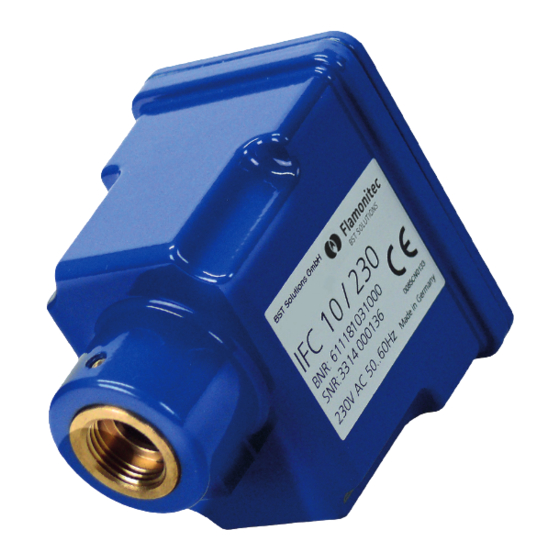

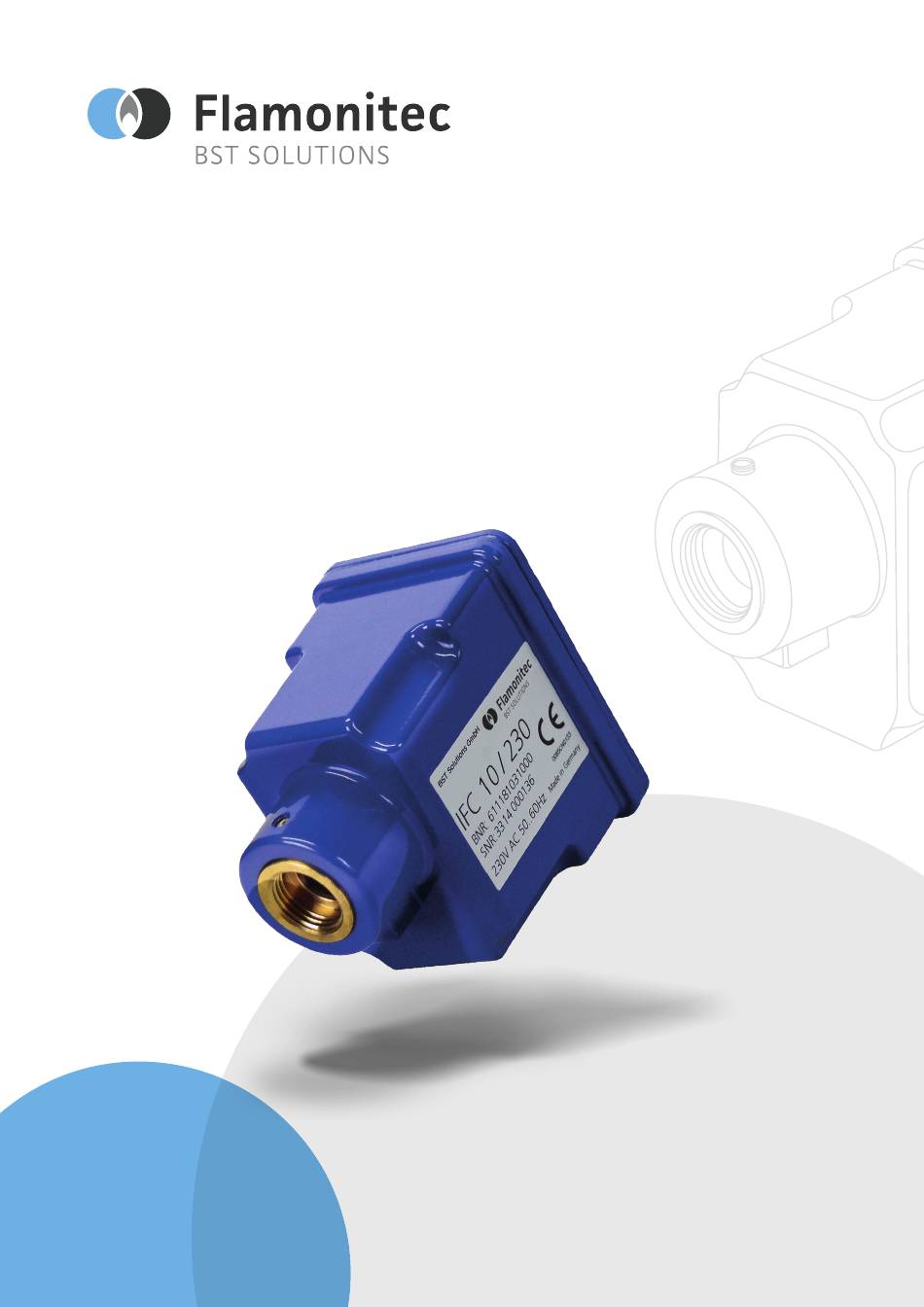

- Page 1 Operating manual UV Compact Flame Detector IFC 10...
-
Page 2: Table Of Contents
Content General aspects Introduction Warning notes Copyright protection Disposal information Warranty Obligation of the operating company Liability disclaimer Declaration of conformity Address of the manufacturer Safety Intended use Requirements on persons Safety instructions Safety devices 2.4.1 Fundamental aspects 2.4.2 Safety devices on the compact industrial flame controller IFC 10 Safety instructions in case of maintenance and troubleshooting... - Page 3 Content Description Functional description IFC 10 Optionally function blocks for IFC 10 5.2.1 Relay module 1 for flame detectors RMF 1 Operation of the compact flame detector IFC 10 Test of the compact flame detector Operating indicator LED Maintenance and servicing Cleaning Maintenance interval Safety-related check...
-
Page 4: General Aspects
This warning level indicates a potentially hazardous situation. If the hazardous situation is not prevented, this may result in slight or moderate injuries. Follow the instructions that accom- pany this warning to prevent the injury of persons. BST Solutions GmbH | UV COMPACT FLAME DETECTOR IFC 10 Page 4... -
Page 5: Copyright Protection
Copyright protection These operating instructions have to be treated as confidential. They may only be used by authorised staff. Access by third parties may only be granted upon written agreement of BST Solutions. All documents are protected in keeping with the German copyright law. -
Page 6: Obligation Of The Operating Company
It is recommended that the operator of the device concludes a service contract with BST Solutions. This guarantees that the device is regularly checked by our service staff and ensures that any required wearing and spare parts are available without long deli- very periods. -
Page 7: Liability Disclaimer
The installation or use of non-approved spare and accessory parts and any unauthorized re- trofits and modifications are not permitted for safety reasons and exclude any liability by BST Solutions for consequential damages. -
Page 8: Declaration Of Conformity
Geschäftsführer Heiligenhaus, den 31.05.2021 General Manager Address of the manufacturer BST Solutions GmbH Ruegenstr. 7 . 42579 Heiligenhaus . Germany T +49 2056 98947-0 . E-Mail: info@flamonitec-bst.com www.flamonitec-bst.com BST Solutions GmbH | UV COMPACT FLAME DETECTOR IFC 10 Page 8... -
Page 9: Safety
Persons who are under the influence of drugs, alcohol or medication that affects reactivity shall not be permitted to carry out work on the device. BST Solutions GmbH | UV COMPACT FLAME DETECTOR IFC 10 Page 9... -
Page 10: Safety Instructions
The device has been fitted with warning and danger signs for the protection of operating staff. These signs have to be observed. Damaged or illegible signs have to be replaced immediately. BST Solutions GmbH | UV COMPACT FLAME DETECTOR IFC 10 Page 10... -
Page 11: Safety Instructions In Case Of Maintenance And Troubleshooting
• Operating and auxiliary materials as well as exchanged parts have to be disposed of in a safe and eco-friendly way. • Spare parts supplied by BST Solutions or approved of by BST Solutions only may be used. BST Solutions GmbH | UV COMPACT FLAME DETECTOR IFC 10... -
Page 12: Electrical / Electronic Devices
German Workplace Safety Ordinance (BetrSichV) in force and the applicable electrical regulations. In case of queries, please get in touch with BST Solutions. 2.5.4 Safety test WARNING... -
Page 13: Technical Data
Log off time < 0.5 s Switching output Floating, galvanically isolated max. switching current 15 mA max. switching power 0.3 W max. switching voltage 280 V AC / 400 V DC BST Solutions GmbH | UV COMPACT FLAME DETECTOR IFC 10 Page 13... -
Page 14: Weight
Length (without plug or gland) 101.1 mm Width 66 mm Height 92 mm Dimensions see under item 4.4 Block diagram IFC 10 1 UV-Sensor 2 Integrator 3 Signal switch 4 Power supply BST Solutions GmbH | UV COMPACT FLAME DETECTOR IFC 10 Page 14... -
Page 15: Transport, Installation And Connection
Report any damage After arrival of the device and accessories, notify the shipping agent, the insurance company and BST Solutions immediately in case of any damage caused by transport or inadequate packaging. Take steps to minimise and prevent further damage. -
Page 16: Dimensions
24 hours must be guaranteed. Check according to EN 298:2012-11 need to check the UV tube to be used in the burner control to the controlled shutdown on the presence of a flame signal back. BST Solutions GmbH | UV COMPACT FLAME DETECTOR IFC 10 Page 16... -
Page 17: Alignment Of
¼‘‘ and ½‘‘ optionally. The air connection is combined with the adapter. Depending on the application again lenses and glasses are available. This eliminates the normal adapter. BST Solutions GmbH | UV COMPACT FLAME DETECTOR IFC 10 Page 17... -
Page 18: Connection
• Protect from direct sunlight. Storage temperature: 0 °C - 50 °C. • Store in a dustfree location. • Avoid mechanical vibrations and damage. BST Solutions GmbH | UV COMPACT FLAME DETECTOR IFC 10 Page 18... -
Page 19: Description
250 V AC, a maximum switching current of 1 A and a maximum rating of 250 VA. More in- formation can be found in BA RMF1 EN in its current version. BST Solutions GmbH | UV COMPACT FLAME DETECTOR IFC 10 Page 19... -
Page 20: Test Of The Compact Flame Detector
IFC 10 is without connection or there is no detected flame Blinking Flame is detected The blinking of the LED representes the flame signal intensity Increasing blinking = higher intensity The flame is detected with highest intensity BST Solutions GmbH | UV COMPACT FLAME DETECTOR IFC 10 Page 20... -
Page 21: Maintenance And Servicing
Precaution after crossing the tube service life of 10,000 h should the UV tube be replaced by the manufacturer or by authorized personnel. IFC 10 is a safety compo- nent and may not be opened! BST Solutions GmbH | UV COMPACT FLAME DETECTOR IFC 10 Page 21... -
Page 22: Troubleshooting
I) Tube faulty Exchange tube interference II) View to sparks Change view Order data The compact flame detektor IFC 10 is available from BST So-lutions GmbH under the follo- wing order data: Type Description Order-No. Flame detector 230 V AC... -
Page 23: Accessories
Due to the different designs that can be tailored to the particular application involved, the rear sight is one with the appropriate glasses or lenses not included as well as the cable and the desired jack must be ordered separately. BST Solutions GmbH | UV COMPACT FLAME DETECTOR IFC 10 Page 23... - Page 24 BST Solutions GmbH Ruegenstr. 7 42579 Heiligenhaus . Germany T +49 2056 98947-0 info@flamonitec-bst.com MEMBER OF MINDERMANN GROUP www.flamonitec-bst.com...
