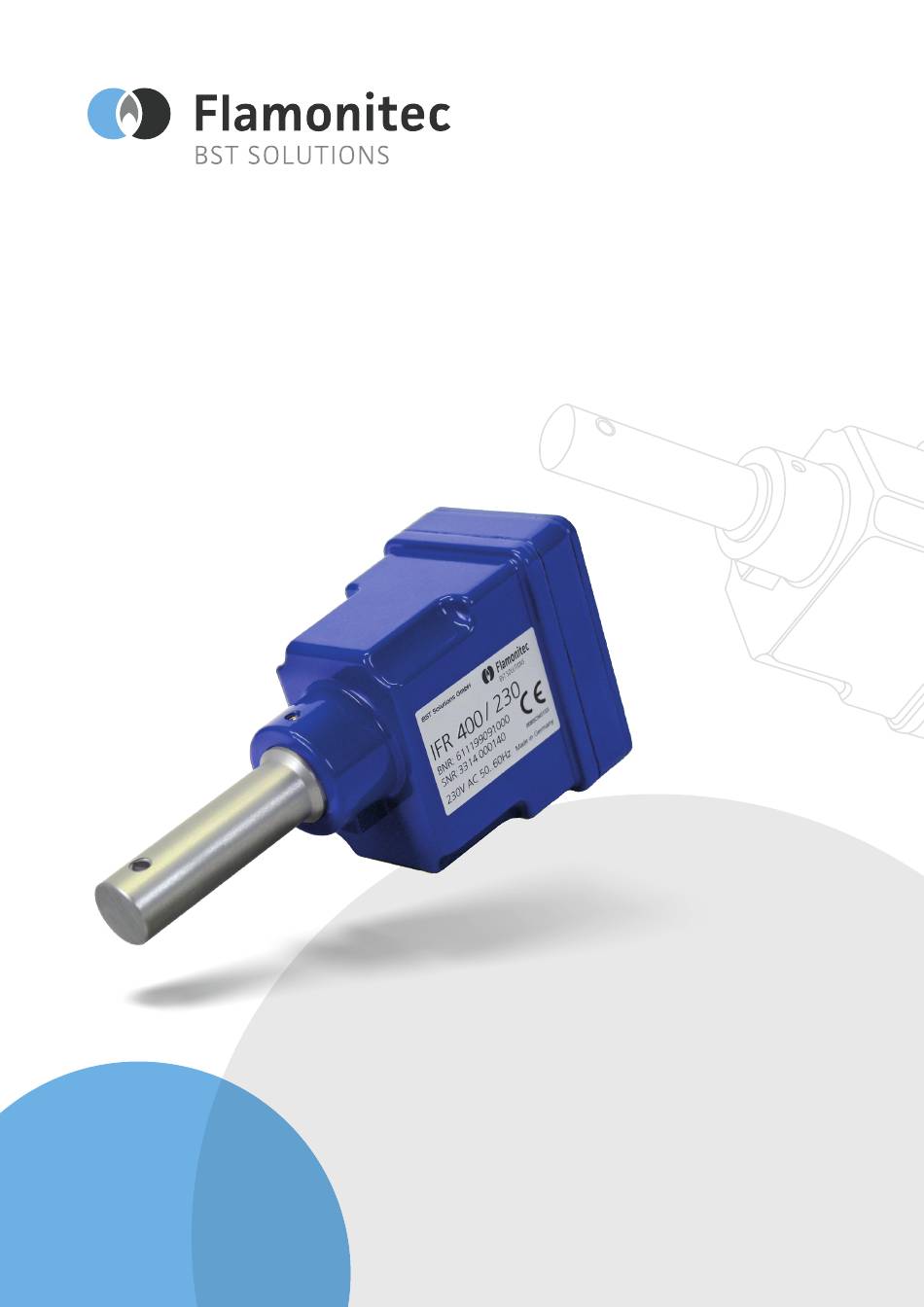

- Page 1 Operating Manual Compact Flame Detector IFR 400...
-
Page 2: Table Of Contents
Content General aspects Introduction Warning notes Copyright protection Disposal information Warranty Obligation of the operating company Liability disclaimer Declaration of conformity Address of the manufacturer Safety Intended use Requirements on persons Safety instructions Safety devices 2.4.1 Fundamental aspects 2.4.2 Safety devices on the compact industrial flame controller IFR 400 Safety instructions in case of maintenance and troubleshooting... - Page 3 Content Description Functional description IFR 400 Operation of the compact flame detector IFR 400 Test of the compact flame detector Operating indicator LED Maintenance and servicing Cleaning Troubleshooting Order data Accessories...
-
Page 4: General Aspects
Follow the instructions that accompany this warning to prevent damage to property. NOTICE A notice indicates additional information that will make the handling of the device easier. BST Solutions GmbH | COMPACT FLAME DETECTOR IFR 400 Page 4... -
Page 5: Copyright Protection
This operating manual has to be treated as confidential. They may only be used by authorised staff. Access by third parties may only be granted upon written agreement of BST Solutions. All documents are protected in keeping with the German copyright law. -
Page 6: Liability Disclaimer
BST Solutions for consequential damages. BST Solutions is liable for possible errors or omissions with the exclusion of additional claims entered into in the framework of the warranty obligations conceded to in the contract. Claims for damages, on whatever legal basis they may be, shall be excluded. -
Page 7: Declaration Of Conformity
Eberhard Röllecke Geschäftsführer Heiligenhaus, den 31.05.2021 General Manager Address of the manufacturer BST Solutions GmbH Ruegenstr. 7 . 42579 Heiligenhaus . Germany T +49 2056 989 47-0 . E-Mail: info@flamonitec-bst.com www.flamonitec-bst.com BST Solutions GmbH | COMPACT FLAME DETECTOR IFR 400 Page 7... -
Page 8: Safety
Connection, set-up, maintenance and repair work may only be carried out by qualified spe- cialist staff. This device may cause hazards if it is operated inappropriately by untrained staff or if it is not used for its intended purpose. BST Solutions GmbH | COMPACT FLAME DETECTOR IFR 400 Page 8... -
Page 9: Safety Instructions
NOTICE To protect the operating personnel, warning / danger signs are attached to the device. Note these signs. Replace damaged or illegible warning / danger signs immediately. BST Solutions GmbH | COMPACT FLAME DETECTOR IFR 400 Page 9... -
Page 10: Safety Devices On The Compact Industrial Flame Controller Ifr 400
• Operating and auxiliary materials as well as exchanged parts have to be disposed of in a safe and eco-friendly way. • Spare parts supplied by BST Solutions or approved of by BST Solutions only may be used. 2.5.2 Electrical / electronic devices... -
Page 11: Testing Per German Workplace Safety Ordinance (Betrsichv)
German Workplace Safety Ordinance (BetrSichV) in force and the applicable electrical regulations. In case of queries, please get in touch with BST Solutions. 2.5.4 Safety test WARNING In order to ensure correct operation, the compact flame detector IFR 400 of all applica- tions have to be tested several times by starting and stopping the burner several times. -
Page 12: Technical Data
150 / 200 / 900 Frequency 15 / 20 / 400 Relay output Floating, potential-free change-over contact max. switching current 0.5 A max. switching power 125 W max. switching voltage 250 V AC BST Solutions GmbH | COMPACT FLAME DETECTOR IFR 400 Page 12... -
Page 13: Weight
192.1 mm Width 66 mm Height 92 mm Dimensions see under item 4.4 Block diagram IFR 400 Item Designation Sensor Shutter Preamplifier Signal evaluation Optical output Relay Power supply BST Solutions GmbH | COMPACT FLAME DETECTOR IFR 400 Page 13... -
Page 14: Transport, Installation And Connection
Report any damage After arrival of the device and accessories, notify the shipping agent, the insurance company and BST Solutions immediately in case of any damage caused by transport or inadequate packaging. Take steps to minimise and prevent further damage. -
Page 15: Dimensions Ifr 400
The cable length when using the ionization circuit depends on the used burner control. For connection length > 1 m, the wires of the relay contacts in the connection cable must be shielded. BST Solutions GmbH | COMPACT FLAME DETECTOR IFR 400 Page 15... -
Page 16: Connection
In addition, ensure that the floor in the storage area will remain dry throughout the storage period. • Protect from direct sunlight. Storage temperature 0 to +25°C. • Store in a dust-free location. • Avoid mechanical vibrations and damage. BST Solutions GmbH | COMPACT FLAME DETECTOR IFR 400 Page 16... - Page 17 Via the built-in LED the compact flame detector is indicating the following operating conditions: Meaning IFR 400 is without potential or defective Flashes with short interruptions Flame is off Flashes with long interruptions Flame is on IFR 400 is defective BST Solutions GmbH | COMPACT FLAME DETECTOR IFR 400 Page 17...
- Page 18 IFR 400 malfunction Replace IFR Ambient light View of sparks or artificial Change view or shield against interference light artificial light BST Solutions GmbH | COMPACT FLAME DETECTOR IFR 400 Page 18...
- Page 19 ORDER DATA ACCESSORIES Order data The compact flame detector IFR 400 is available from BST Solutions GmbH under the follo- wing order data: Type Description Part-No. Compact Flame Detector 230 V AC 611199010452 IFR 400 / 230, sensitive *, fixed connection cable 1.5 m...
- Page 20 BST Solutions GmbH Ruegenstr. 7 42579 Heiligenhaus . Germany T +49 2056 989 47-0 info@flamonitec-bst.com MEMBER OF MINDERMANN GROUP www.flamonitec-bst.com...
