Mounting Guide - WBOX Technologies 0E-32MON720P Manual

Wall or Other Mounting with VESA Standard
CAUTION The wall mount must bear a minimum of ve times the
monitor's net weight. To mount your MONITOR to the wall or
another surface,you need to purchase a VESA wall mount.Use four
( 32 " 43 "HM Ф6.0x14mm screws (the base attachment screws
removed in step 1 below are( 32 " 43 "HM Ф6.0x14mm )to attach
the mount. The monitor mount VESA hole pattern is
((0E-32MON720P(200mmx100mm)
0E-43MON1080(200mmx200mm)
Note: Metric(32"43"HMФ6.0x14mm) is the type scerw that should be used (do not use
longer screws or the monitor may be damaged).
1. Before mounting the monitor, remove the base riser (vertical portion of the base) by
removing the four screws near the top with a screwdriver. Then the base and the
riser can be removed. In order to prevent losing these screws, we suggest replacing
the screws in their original holes.
2. Attach the VESA mounnt ((0E-32MON720P (200mm x 100mm)0E-43MON1080
(200mm x 200mm)) plate to rear of the monitor and follow all of the instructions
provided with the mount to complete the mounting process.

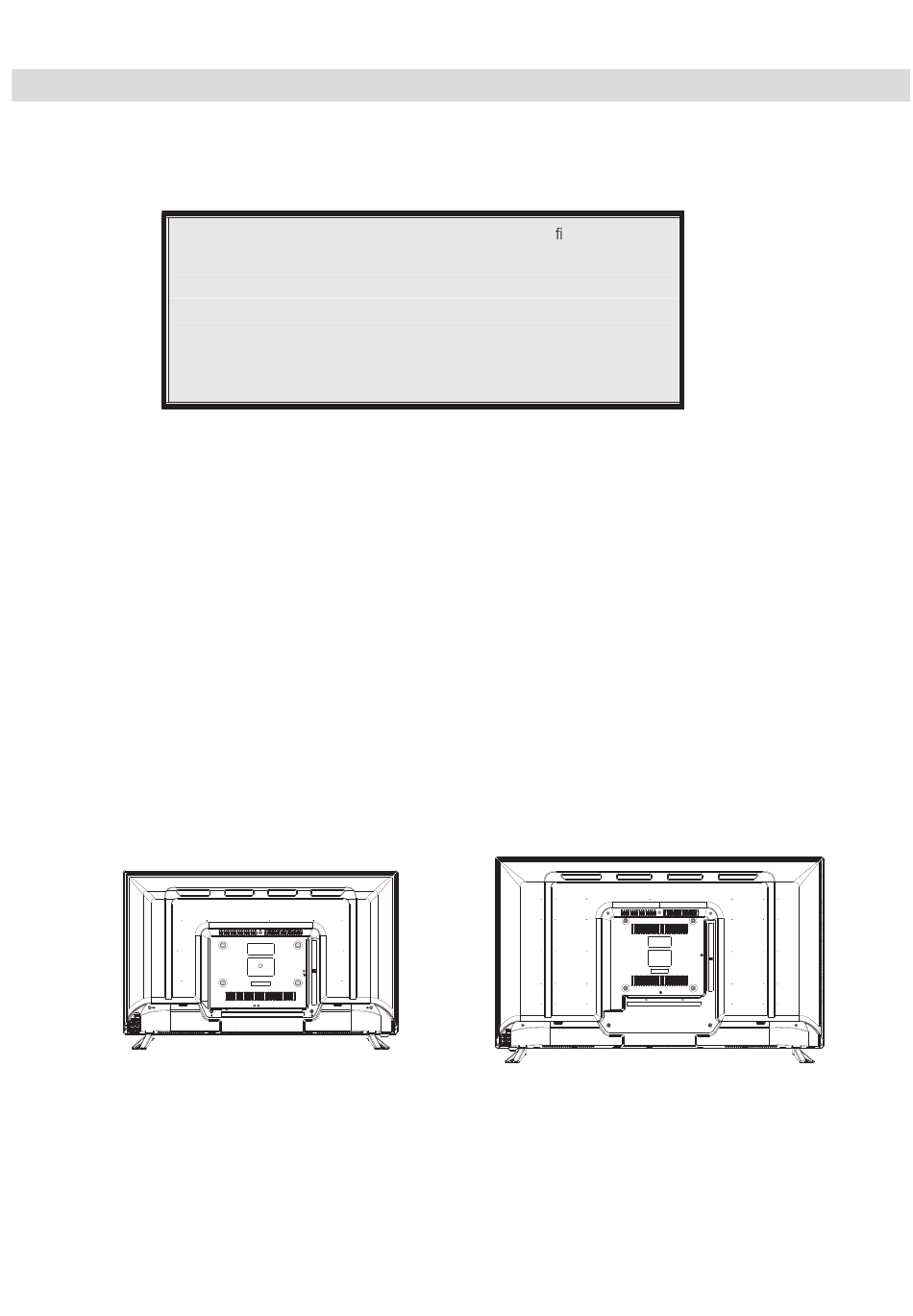

0E-32MON720P
Mountin g Guide
11
0E-43MON1080
