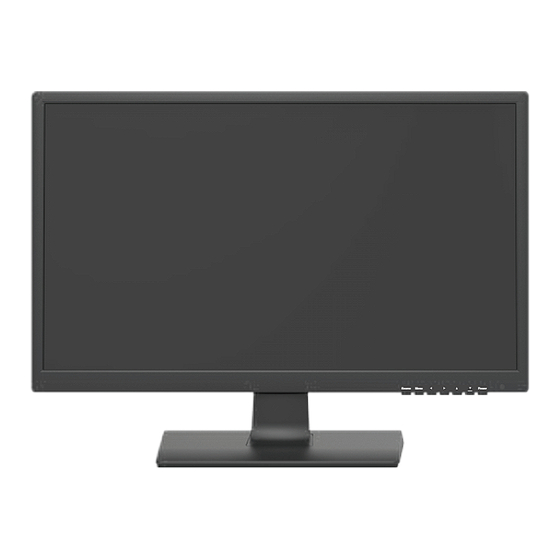

- Page 1 Source Menu Power 16:9/4:3 HD PRO-GRADE LED COLOR MONITOR Tech Support #833-574-9124(Option2) info@wboxtech.com 0E-19VGHDMI2 0E-22VGHDMI2...
-
Page 2: Table Of Contents
Contents Contents ............................1 Safety ............................1 Cautions............................3 FCC RF Interference Statement ..................4 Connections ..........................5 Controls & Menu Operation ....................6 Mounting Guide ........................ 13 Accessories ..........................14 Power Indicator / Modes of Operation ................14 Dimensions ..........................15 Specifications ........................ - Page 3 D. If batteries are used, please dispose of all batteries as per local regulations. E. Use the monitor in indoor environments as per the temperature and humidity specs. 8. The monitor should be operated from a power source indicated on the rear of the monitor. 9.
-
Page 4: Cautions
Cautions CAUTION TO SERVICE PERSONNEL POWER SUPPLY CORD IS USED AS MAIN POWER DISCONNECT DEVICE IN THIS PRODUCT. UNPLUG THIS PRODUCT FROM THE WALL OUTLET BEFORE REMOVING THE BACK COVER AND SERVICING. 1. Never open the monitor case Only specially qualified personnel should open the case. No user serviceable parts inside. 2. -
Page 5: Fcc Rf Interference Statement
FCC RF Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 6: Connections
Connections Back View of Monitor Connector panel is located on the underside of the case rear projection, just above the stand. Detailed View of the Connector Panel Only use a properly grounded, three wire cord appropriate for the local power system. -
Page 7: Controls & Menu Operation
Controls & Menu Operation Control Keys / Buttons Buttons are located on the right side of the Bezel on 0E-19VGHDMI2 / 22VGHDMI2 models. Source Auto detection function 16:9/4:3 when there is/are source(s) connect to the monitor, monitor will auto detect the source(s) and auto select the desired source. - Page 8 D. “RIGHT” button ●Press RIGHT button, volume increase E. “DOWN” button ●Press the button to scroll the cursor to desired function. Press the DOWN to decrease the value of selected function in sub OSD menu. F. “UP” button ●Press the button to scroll the cursor to desired function.
- Page 9 Brightness Press the MENU button to bring the menu on BRIGHTNESS screen, and then the up/down buttons to move up along the main menu selections to choose the BRIGHTNESS CONTRAST Brightness menu. Press up/down to move STANDARD between the left side main menu selector into the window of menu choices and parameters.
- Page 10 Image IMAGE Press the MENU button to bring the menu on screen, and then up/down buttons to move along H-POSITION the menu selections to highlight the IMAGE menu. V-POSITION Press up/down to move between the left side main CLOCK menu selector into the window of menu choices PHASE and parameters.
- Page 11 Adjustments Color Temp : Adjust color temperature (User/ Cool/ Warm/ Standard) Adjust red color effect (0-100) Adjust green color effect (0-100) Green Blue Adjust blue color effect (0-100). OSD SETTING Press the MENU button to bring the menu on OSD SETTING screen, and then up/down buttons to move LANGUAGE along the menu selections to highlight the OSD...
- Page 12 Reset Press the MENU button to bring the menu on screen, and then up/down buttons to move RESET along the menu selections to highlight the IMAGE AUTO ADJUST RESET menu. Press up/down to move COLOR AUTO ADJUST between the left side main menu selector into RESET PREVENT BURN IN the window of menu choices and parameters.
- Page 13 MISC Press the MENU button to bring the menu MISC on screen, and then left/right buttons to move along the menu selections to highlight the SIGNAL SOURCE HDMI MISC menu. Press up/down to move between VOLUME the left side main menu selector into the window of menu choices and parameters.
-
Page 14: Mounting Guide
In order to prevent losing these screws, we suggest replacing the screws in their original holes. 2. Attach the VESA mount ( 0E-19VGHDMI2 / 22VGHDMI2 (100mm x 100mm)) plate to the rear of the monitor and follow all of the instructions provided with the... -
Page 15: Accessories
Screws Type: PM 4.0x6mm Qty: 4 Screws Type: BB 4.0×7mm Qty: 5 Screws Type: BM 4.0×8mm Qty: 2 PM 4.0x8mm Qty: 4 HD PRO-GRADE LED COLOR MONITOR Tech Support #833-574-9124(Option2) 0E-19VGHDMI2 info@wboxtech.com 0E-22VGHDMI2 Hinge Cover Base of Stand Stand Support User Manuals Qty: 2... -
Page 16: Dimensions
Dimensions Model 0E-19VGHDMI2 0E-22VGHDMI2 Letter Dimension inch inch Width of monitor body 441.4 17.37 19.96 Height of monitor body 10.66 311.2 12.25 Depth of monitor body 1.81 51.2 Height of monitor on base 332.3 13.08 370.3 14.58 Width of base 252.2... -
Page 17: Specifications
Specifications Model 0E-19VGHDMI2 0E-22VGHDMI2 21.5 Screen Diagonal Dimension (inches) 18.5 18.76 x 10.56 Viewable Area W x H (inches) 16.13*9.07 Led Type 0.248x0.248 0.30x0.30 Pixel Pitch (mm) 1366 x 768 1920 x 1080 Screen Maximum Resolution 640 x 480; 800 x 600; 1024 x 768;... -
Page 18: Limited Warranty
Limited Warranty 1. Limited Warranty A. General Subject to the terms and conditions of this Limited Warranty, from the date of sale through the period of time for product categories specified in Section 1(b), ADI warrants its W Box Technologies products to be free from defects in materials and workmanship under normal use and service, normal wear and tear excepted. - Page 19 B. Specific Warranties for Product Categories Product Categories Warranty CCTV Power Supplies 24 months Monitors 30 months Video Baluns 30 months Analog Cameras 36 months DVR’s, NVR’s (excluding HDD) 60 months IP Cameras 60 months Racks 60 months TV Mounts 60 months Analog Cables Limited Lifetime...
- Page 20 Any product description (whether in writing or made orally by ADI or ADI’s agents), specifications, samples, models, bulletin, drawings, diagrams, engineering sheets, or similar materials used in connection with the Buyer's order are for the sole purpose of identifying ADI's products and shall not be construed as an express warranty or condition. Any suggestions by ADI or ADI's agents regarding use, applications or suitability of the products shall not be construed as an express warranty or condition unless confirmed to be such in writing by ADI.
- Page 21 4. Returns Subject to the terms and conditions listed below, during the applicable warranty period, ADI will replace Product or provide a credit at purchase at its sole option free of charge any defective products returned prepaid. Any obligations of ADI to replace Limited Lifetime warranty products pursuant to this warranty which result from defect are limited to the availability of replacement product.
- Page 22 0E-19VGHDMI2 1 1 9 1 4 0 2 9 7 3 Tech Support E505978 #833-574-9124(Option2) 0E-22VGHDMI2 info@wboxtech.com LED MONITOR wboxtech.com 1 1 9 1 4 0 2 9 7 5...
