Trine 4850 Installation Instructions And Instructions For Use

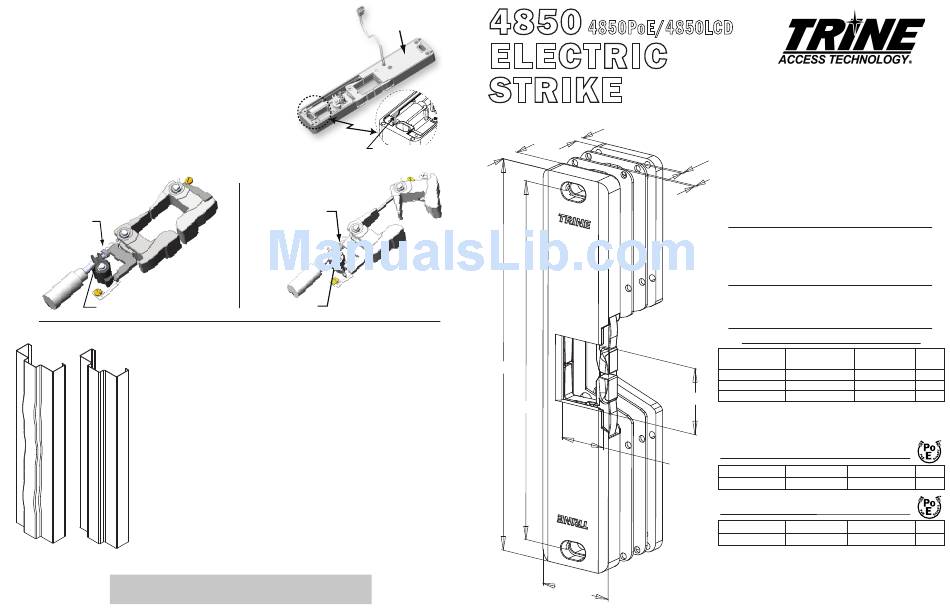

INSTRUCTIONS FOR CHANGING THE THE 4850 FROM FAIL SECURE
TO FAIL SAFE:
To change the Fail Secure 4850 into a Fail Safe, open the
mechanism side of the strike (as shown on the right) by removing
the mechanism cover screws (3 places) and the cover. Lift the solenoid
and gently pull off the solenoid plunger and BLUE spring assembly
and replace it with the solenoid plunger and RED colored spring
assembly. Pull off the actuator cam, and replace it with the fail-safe cam.
Before closing the unit, make sure that the wires are properly seated
on the wire channel (see figure on right). Save the plunger and BLUE
colored spring assembly for future use.
For changing from Fail Safe to Fail Secure, just reverse the
above procedure
Use the plunger and
BLUE colored solenoid
spring assembly.
Fail Secure
You should have the "X" mark on top of the actuator cam.
TROUBLESHOOTING THE COMPLETED INSTALLATION:
(FIG W)
SYMPTOM: ELECTRIC RELEASE IS NOT ACTUATING:
1. Verify proper voltage is present AT STRIKE. If voltage is present: the strike may have been
affected during the installation, or dirt or debris may be preventing proper operation. Inspect
electric release and clean. NOTE: DO NOT LUBRICATE SOLENOID
2. If voltage IS NOT present:
A) Verify Circuit breaker is on, B) Verify voltage at the transformer/power supply output. C)
Verify that there are no additional, external switches or devices which may be interrupting your
circuit. D) Check for damaged wiring or bad wire splices.
SYMPTOM: STRIKE IS WORKING BUT WILL NOT OPEN:
1. Check for other locks on door
2. Check for proper lock-latch engagement
.
3. Check for excessive back pressure on door release latch by following these steps:
A) Push the door from the outside to try and relieve the bolt to latch pressure and actuate
the 4800F. B) While the 4850 is unlatched swing the door open. If the door opens, then the bolt
maybe applying pressure to the latch. Adjust the position of the 4850 to relieve the pressure.
POSSIBLE REMEDIES:
1. Re-adjust (or install) a door closer, Remove door silencers, Re-center electric release in jamb,
Remove or trim weather stripping around the door.
Uneven Ideal Frame
2. Installing this strike on an uneven surface can cause problems with the internal mechanism of
Frame Soffit Soffit Flatness
this device. Specifically, it will cause localized mechanical pinching of the moving parts. Locate
where the pinching is occurring and level the frame surface at that location.
V. 17.0407
4.
DO NOT OPEN
Seat wires properly in
the housing channel so
the cover will seat flat.
Use the plunger and
RED colored solenoid
spring assembly.
You should NOT see the "X" on top of the actuator cam.
PHONE: (203) 730-1756
email: customerservice@trineonline.com
FAX: (203) 730-1781
2 Parklawn Dr., Suite F website: www.trineonline.com
Bethel, CT 06801
4850
THIS SIDE.
ELECTRIC
STRIKE
INSTALLATION INSTRUCTIONS
1/2"
9"
8 1/4"
(FIG W)
1 3/4"
1.
4850PoE/4850LCD
TRINE 4850 - 1/2" THICK ELECTRIC
THE ONE BOX SOLUTION
FOR RIM PANIC EXIT DEVICES
Congratulations on the purchase of this quality TRINE
1/4"
security product. This product has been designed to
install easily, perform reliably, and provide years of trouble
1/16"
free security.
BEFORE PROCEEDING with your installation, please review the
following list of features. If you have any questions after reading
1/16"
this document please call TRINE's TECHNICAL SUPPORT
(203) 730-1756 , or visit us online @ trineonline.com
BHMA Grade 1 Electric Strike
- 1,000,000+ Life Cycles
- 1,500+ lbs Holding Force
Single Locking Mechanism
4850 THICKNESSES:
Combining the 1/8" spacer and 1/4" spacer the 4850's open
cavity allows for multiple thicknesses: 1/2", 5/8", 3/4" and 7/8"
4850 ELECTRICAL CHARACTERISTICS:
Voltage
12DC
16DC
1 1/2" 24DC
Built-in Electronics: The 4850 automatically allows 12-24DC
power, plus surge and kickback protection. There are no
external 'pacs' to use or install.
4850PoE ELECTRICAL CHARACTERISTICS:
1 1/8"
Voltage
12DC
4850LCD ELECTRICAL CHARACTERISTICS:
Voltage
24DC
DO NOT APPLY AN OVER VOLTAGE OF MORE THAN 10% OVER
THE RATED OPERATING VOLTAGE OF THE STRIKE OR THE SOLENOID
DO NOT APPLY AC POWER OR THE SOLENOID WILL BE DAMAGED.
OPERATING TEMP RANGE: -20°C TO +65°C
2 Parklawn Drive l Suite F l Bethel l Connecticut l 06801
Pull-in/Hold
Amps (A) Duty Sound
.500 A/.178 A Intm/Cont. Silent
.385 A/.131 A Intm/Cont. Silent
.255 A/.084 A Intm/Cont. Silent
Amps (A) Duty Sound
.260 A Intm/Cont. Silent
Amps (A) Duty Sound
.135 A Intm/Cont. Silent
