Serial Number Location

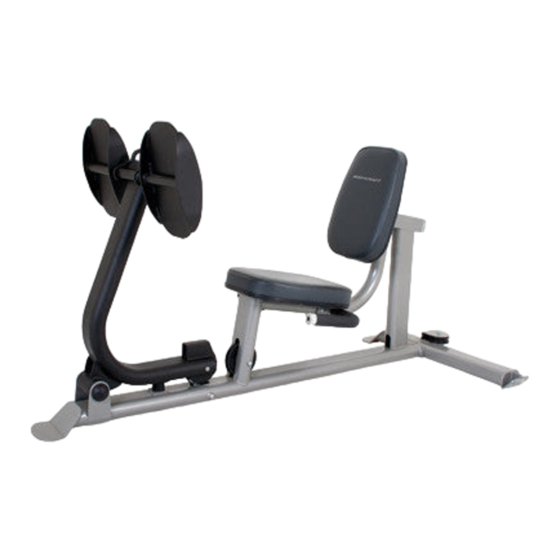

Model No. Elite Leg Press
MA6053LP
BODYCRAFT
INSTRUCTION MANUAL
LEG PRESS
OPTION OF ELITE GYM
Record your Serial number
S/N __________________
DATE:________________
DEALER:______________
S E R I A L
______________________
1 2 3 4 5 6 7 8
Fitness Authority Industrial Co., LTD.
No. 15, Xiangxue Rd., Dali Dist.,
and purchase date here:
Taichung City 41275, Taiwan.
Advertisement
Related Manuals for BodyCraft MA6053LP
Summary of Contents for BodyCraft MA6053LP
- Page 1 S/N __________________ DATE:________________ DEALER:______________ S E R I A L ______________________ 1 2 3 4 5 6 7 8 Model No. Elite Leg Press Fitness Authority Industrial Co., LTD. No. 15, Xiangxue Rd., Dali Dist., MA6053LP Taichung City 41275, Taiwan. BODYCRAFT...
-
Page 2: Important Safety Notes
8. Make certain all cables are seated within the pulleys before every use. 9. Exercise with care to avoid injury. 10. If you are unsure about the proper use of the BODYCRAFT Elite Leg Press attachment call your local BODYCRAFT dealer. - Page 3 Gym Placement Planner If possible, please take advantage of the corner fit design. WALL 53“ HEIGHT 64.2" 33" Important Notes and Tips: Recommended Tools for Assembly 1. Do not tighten any bolts until instructed. 2. Two people are required for the safe assembly of the gym.
- Page 4 ELITE LEG PRESS PARTS LIST NOTE: IF YOU SEEM TO BE MISSING A PART, DO NOT WORRY, IT LIKELY HAS BEEN PRE-INSTALLED FOR QUALITY CONTROL PURPOSES. (202) CONNECTING (203) LEG PRESS (204) FOOT PLATE REAR STABILIZER SUPPORT (201) BASE FRAME (211) 114mm (210) RING (208) φ25mm...
- Page 5 STEP 1 ASSEMBLE GUIDE ROD 1. Detach 5/16" X 1/4" Inner Hex Screw (246) and Guide Rod (243) from Connecting Rear Stabilizer (202), and slide Sliding Pulley Block (207) off Guide Rod (243). Detach 90mm Pulley (212), 3/8" Nylon Nut (237) and 3/8" X 1-3/4"...
- Page 6 STEP 2 INSTALL LEG PRESS LOW CABLE Leg Press Low Cable (213A) Threaded End Ball End 1. Remove the Low Cable (87) of Elite. If you have installed the Low Cable (87), you must remove it now. This cable will be replaced by the Leg Press Low Cable (213A).
- Page 7 STEP 3 ASSEMBLE CONNECTING REAR STABILIZER To ease assembly, Do Not tighten any bolts until instructed. 1. Slide Sliding Pulley Block (207) onto the Guide Rod (243). And attach the Guide Rod (243) to the Connecting Rear Stabilizer (202) using two 5/16"...
- Page 8 STEP 4 ASSEMBLE BASE FRAME 1. Attach the Base Frame (201) to the Connecting Rear Stabilizer (202) using two 1/2" X 5" Hex Bolts (223) and two 1/2" Washers (235). 2. Insert the 1" Axle (shorter) (209) into the Leg Press Support (203) at the underside of the bend, and a Ring Spacer (210) on each end of 1"...
- Page 9 STEP 5 INSTALL LEG PRESS CABLE Threaded End Leg Press Cable (213B) Eyelet End Assemble cables and pulleys simultaneously. 1. Screw the threaded end of Leg Press Cable (314) into the Cable Block (207), and route underneath pulley G2 mounted on the Connecting Rear Stabilizer (202), using a 3/8"...
- Page 10 EXPLODED 227 236 213B 213A...
-
Page 11: Parts List
PARTS LIST NO. DESCRIPTION QTY. BASE FRAME CONNECTING REAR STABILIZER LEG PRESS SUPPORT FOOT PLATE BACK PAD ADJUSTER SEAT HANDLE SLIDING PULLEY BLOCK φ1" AXLE (LONGER) φ1" AXLE (SHORTER) RING SPACER 114mm PULLEY 90mm PULLEY 213A LEG PRESS LOW CABLE 213B LEG PRESS CABLE BACK PAD... - Page 12 5. For better performance, apply a household lubricant (such as silicone) to any adjustable areas. 6. Enjoy many years of a Fit Lifestyle. Thank you for purchasing the BODYCRAFT Elite Leg Press attachment. If you have any questions, please call your local BODYCRAFT dealer.
