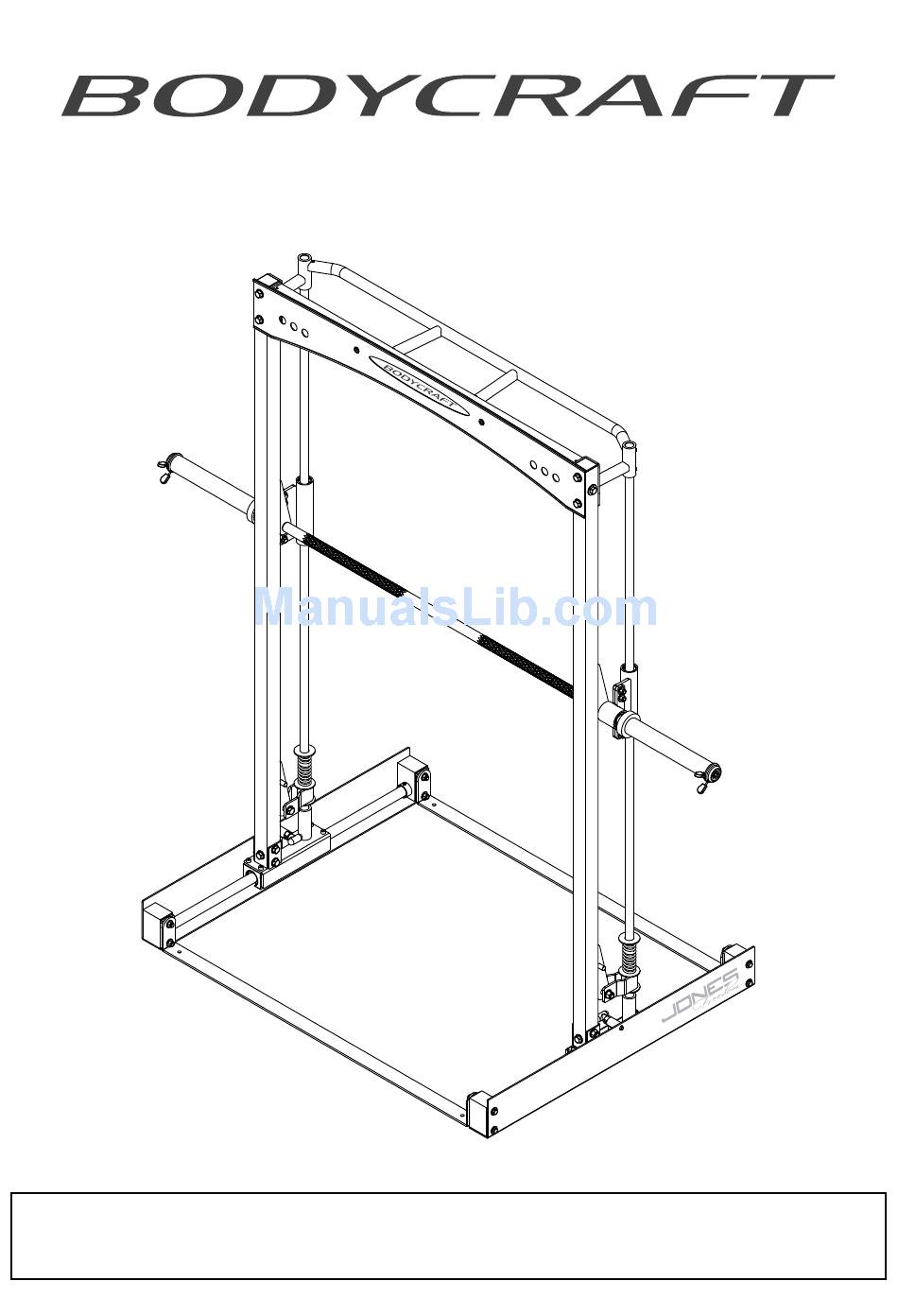

Page 1: Owners Manual
Jones Freedom Strength Training System OWNERS MANUAL MA906 Recreation Supply Inc. P.O. BOX 181 Model No. BODYCRAFT Sunbury, OH 43074 is a division of Recreation Supply... - Page 2 OVERVIEW...
-
Page 3: Table Of Contents
PARTS LIST NO. DESCRIPTION QTY. BASE FRAME BASE FRAME CONNECTOR LOGO PANEL OLYMPIC BAR TOP FRAME UPRIGHT FRAME VERTICAL GUIDE ROD (preassembled on Uprights) HORIZONTAL GUIDE ROD (pre-assembled in Base Frame) LEFT BASE BEARING HOUSING (pre-assembled in Base Frame) RIGHT BASE BEARING HOUSING (pre-assembled in Base Frame) TRIM VERTICAL BEARING HOUSING... -
Page 4: Base Frame
STEP 1 Base Frame Assembly IMPORTANT: ˙ To ease the assembly process, DO NOT tighten bolts until instructed. ˙ Please assemble on a flat level floor. ˙ Assembly requires three people during installation of the TOP FRAME. 1. Attach BASE FRAME CONNECTORS (2) to the two BASE FRAMES (1), using eight 3/8"... -
Page 5: Vertical Guide Rod
STEP 2 Upright Frame Assembly 1. Attach the VERTICAL GUIDE ROD (7) to the BASE FRAME (1). Attach UPRIGHT FRAME (6) to the LEFT BASE BEARING HOUSING (11) using three 1/2" X 2-1/2" HEX BOLTS (24), five 1/2" WASHERS (33) and two 1/2" NYLON NUT (36). -
Page 6: Vertical Bearing Housing
STEP 3 Safety Spotter Assembly 1. Attach the VERTICAL BEARING HOUSING (11), 1" ID BIG WASHER (21), SPRING (19), and SAFETY SPOTTER (12) to the VERTICAL GUIDE ROD (7). 2. Repeat above step for right side. 1" 2" 3" 4" 5"... - Page 7 STEP 4 Top Frame Assembly This step requires three people! 1. Attach TOP FRAME (5) to the UPRIGHT (6) using two 1/2" X 3" HEX BOLTS (23), four 1/2" LARGER WASHERS (32), and two 1/2" NYLON NUTS (36). 2. Attach LOGO PANEL (3) to the UPRIGHT (6) using four 1/2"...
-
Page 8: X 1-1/4" Hex Bolt
STEP 5 Olympic Bar Assembly 1. Attch OLMPIC BAR (4) to the VERTICAL BEARING HOUSING (11) using eight 3/8" X 1-1/4" HEX BOLTS (26), sixteen 3/8" WASHERS (34), and four 3/8" NYLON NUTS (37). 37 37 1" 2" 3" 4" 5"...
