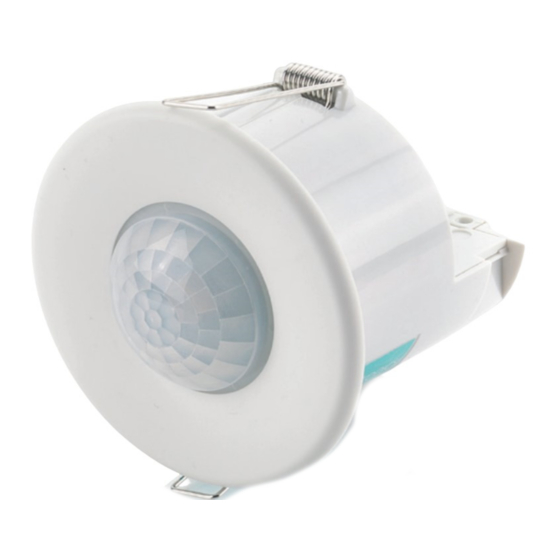

EBDMR-CB-DD
Casambi wireless, IP40, mid level, flush mounted, PIR presence detector with light sensor equipped
with DALI dimming and switched outputs
Casambi Wireless, IP40, Mittelstufe, Unterputz, PIR-Präsenzmelder mit Lichtsensor, ausgestattet mit
DALI-Dimmung und geschalteten Ausgängen
Inalámbrico Casambi, IP40, nivel medio, empotrado, detector de presencia PIR con sensor de luz
equipado con atenuación DALI y salidas conmutadas
Detector de presença PIR Casambi sem fio, IP40, nível médio, embutido, com presença de PIR com
sensor de luz equipado com escurecimento DALI e saídas comutadas
Casambi sans fil, IP40, niveau intermédiaire, encastré, détecteur de présence PIR avec capteur de
lumière équipé de gradation DALI et de sorties commutées
Casambi wireless, IP40, livello medio, incasso, rilevatore di presenza PIR con sensore di luce dotato di
dimmerazione DALI e uscite commutate
Casambi draadloos, IP40, middenniveau, inbouw, PIR-aanwezigheidsmelder met lichtsensor uitgerust
met DALI-dimmen en geschakelde uitgangen
Downloads and Videos | Downloads und Videos | Descargas y Videos | Descargas e Videos |
Téléchargements & Vidéos | Downloads e Video | Downloads en Video's
WDA024 Issue 1 Installation Guide
Warning | Warnung | Advertencia | Aviso |
Attention | Attenzione | Waarschuwing
EN
This device should be
installed by a qualified electrician in
accordance with the latest edition
of the IEE wiring regulations.
DE
Dieses Gerät ist
ausschließlich von qualifizierten
Elektrofachkräften zu installieren.
ES
Sólo un electricista
cualificado debe instalar este
dispositivo.
cpelectronics.co.uk/cp/a024
EBDMR-CB-DD
PT
Somente um eletricista
qualificado deve instalar este
dispositivo.
FR
Seul un électricien
qualifié peut installer ce dispositif.
IT
Il dispositivo deve essere
installato da un elettricista
qualificato.
NL
Dit apparaat moet
worden geïnstalleerd door een
gekwalificeerde elektricien.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for LEGRAND CP Electronics Casambi EBDMR-CB-DD
Summary of Contents for LEGRAND CP Electronics Casambi EBDMR-CB-DD
- Page 1 WDA024 Issue 1 Installation Guide EBDMR-CB-DD EBDMR-CB-DD Casambi wireless, IP40, mid level, flush mounted, PIR presence detector with light sensor equipped with DALI dimming and switched outputs Casambi Wireless, IP40, Mittelstufe, Unterputz, PIR-Präsenzmelder mit Lichtsensor, ausgestattet mit DALI-Dimmung und geschalteten Ausgängen Inalámbrico Casambi, IP40, nivel medio, empotrado, detector de presencia PIR con sensor de luz equipado con atenuación DALI y salidas conmutadas Detector de presença PIR Casambi sem fio, IP40, nível médio, embutido, com presença de PIR com...
- Page 2 Dimensions (mm) | Abmessungen (mm) | Dimensiones (mm) | Dimensões (mm) | Dimensioni (mm) | Dimensies (mm) Detection pattern | Erfassungsbereich | Patrón de detección | Padrão de detecção | Performance de détection | Modello di rilevazione | Detectie zone high sensitivity low...
- Page 3 Wiring | Verkabelung | Cableado | Ligações | Câblage | Cablaggio | Bedrading Switched Load and DALI dimming | Switched Load und DALI-Dimmen | Carga conmutada y atenuación DALI | Carga comutada e escurecimento DALI | Charge commutée et gradation DALI | Carico commutato e dimmerazione DALI | Geschakelde belasting en DALI-dimmen Use the switched output for non- Use a saída comutada para cargas...
- Page 4 Sensor Configurations | Sensorkonfigurationen | Configuraciones de sensores | Configurações do sensor | Configurations des capteurs | Configurazioni del sensor | Sensorconfiguraties Configure os controles do sensor via Casambi App da Apple App Store ou Google Play Store. Para controle de regulação de luz, certifique-se de que a configuração abaixo seja feita e aguarde alguns minutos para entrar em vigor: [Use toda a gama de dimerização] = habilitar Consulte o Guia de Aplicação da CP Electronics Casambi.
- Page 5 Installation | Instalación | instalação | Installazione | Installatie This device is designed to be flush ceiling-mounted. Le produit est conçu pour être monté au plafond en encastré. • Do not site the unit where direct sunlight might enter the sensor. •...
- Page 6 Wire in plugs & connect to detector | Verdrahtugn & Anschluß des Melders | Cableado y conexión del sensor | Cablagem e ligação do sensor | Câbler le bornier et connecter au détecteur | Cablaggio e connessione al rilevatore | Bedrading & aansluiten op detector Wire in plug/s, using wiring diagram Raccorder les câbles au bornier...
- Page 7 Install detector | Melder installieren | Instalación del detector | Instalaçao do detector | Installer le détecteur | Installazione del sensore | Installeer detector Bend the springs up and push Replier les ressorts vers le haut detector through hole in ceiling. When fully et pousser le détecteur à...
- Page 8 Technical Data Technische Daten Part code EBDMR-CB-DD Teile-code EBDMR-CB-DD Weight 0.2kg Gewicht 0.2kg Supply voltage AC 230 VAC +/- 10% Versorgungsspannung AC 230 VAC +/- 10% Supply frequency 50Hz Versorgungsfrequenz 50Hz Rated Current Nennstrom Terminal capacity 2.5mm² Leiterkapazität 2.5mm² Max switched load: Max geschaltete Last: Incandescent lighting Glühlampen...
- Page 9 Datos Técnicos Dados Técnicos Código de pieza EBDMR-CB-DD Código da peça EBDMR-CB-DD Peso 0.2kg Peso 0.2kg Voltaje de entrada de CA 230 VAC +/- 10% Tensão de alimentação CA 230 VAC +/- 10% Frecuencia de suministro 50Hz Freqüência de fornecimento 50Hz Corriente nominal Corrente nominal...
- Page 10 Données Techniques Specifiche Tecnichev Code de la pièce EBDMR-CB-DD Codice parte EBDMR-CB-DD Poids 0.2kg Peso 0.2kg Tension d’alimentation CA 230 VAC +/- 10% Tensione di alimentazione CA 230 VAC +/- 10% Fréquence d’alimentation 50Hz Frequenza di alimentazione 50Hz Courant nominal Corrente nominale Capacité...
- Page 11 Technische data Onderdeelcode EBDMR-CB-DD Gewicht 0.2kg Voedingsspanning AC 230 VAC +/- 10% Voedingsfrequentie 50Hz Nominale stroom Eindcapaciteit 2.5mm² Max geschakelde belasting: Gloeilampverlichting Tl-verlichting Compacte tl-verlichting LED verlichting Resistent kachels Ventilatoren en ventilatieappa- ratuur Tungsten halogeen Laad Inrush-classificatie 200A for 300μs Max.
- Page 12 CP Electronics A Business unit of Legrand Electric Limited, Brent Crescent, London NW10 7XR, UK t. +44 (0)333 900 0671 enquiry@cpelectronics.co.uk www.cpelectronics.co.uk connect with us Due to our policy of continual product improvement CP Electronics reserves the right to alter the specification of this product without prior notice.
