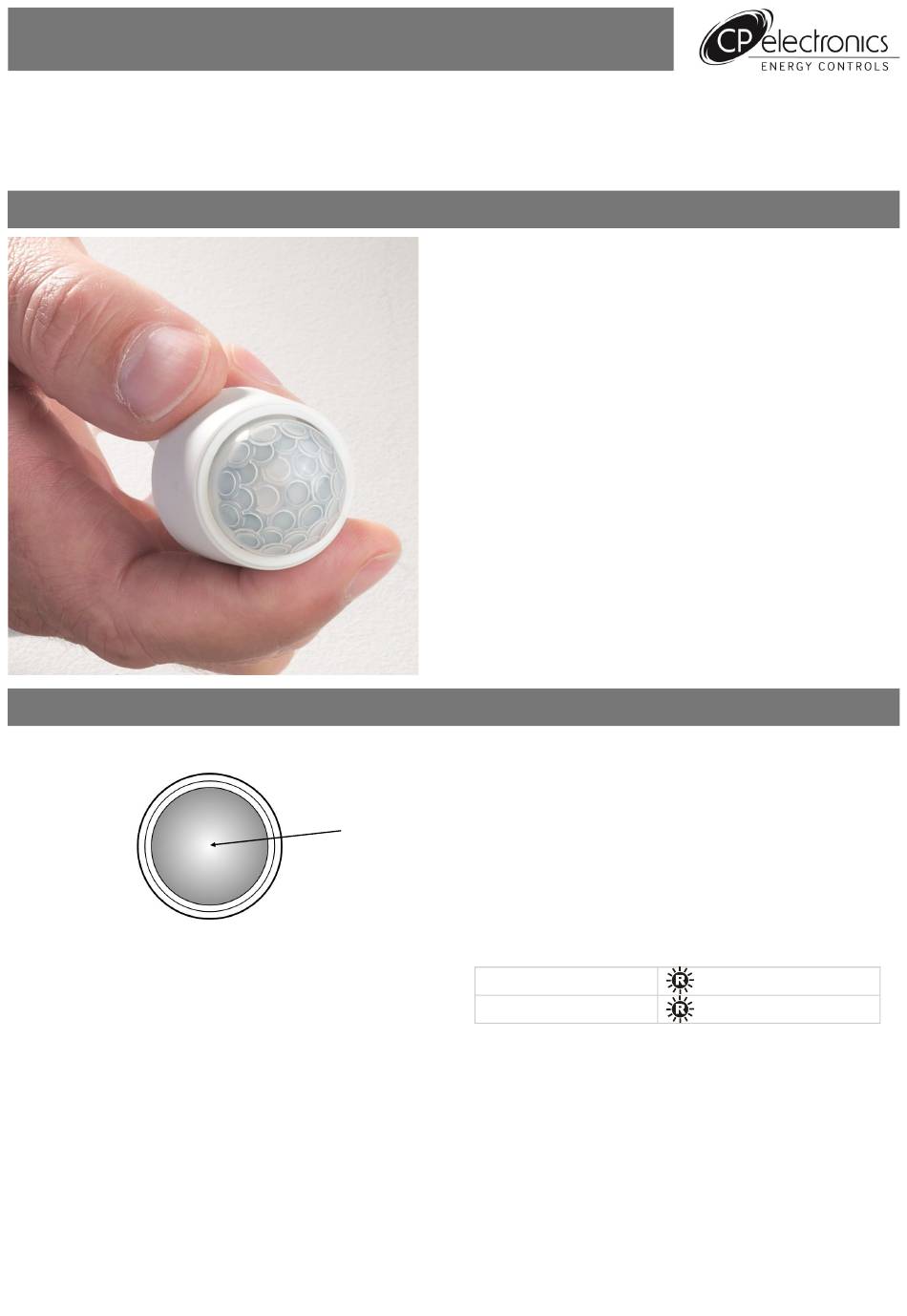

EBMHS-BLV
Miniature Integration Presence Detector
Sensor head
Product Guide
The EBMHS-BLV (passive infrared) presence detector
provides automatic control of lighting loads via a third party
control device.
Functioning as a presence detector, the unit can send
signal to signify occupancy. The unit can also send out an
analogue signal that corresponds to the light level.
A selection of fixing clips to allow the unit to me mounted in
or to the side of a luminaire are available.
All functionality is fully programmable using an IR handset.
PIR Sensor
Detects movement within the unit's detection range,
allowing load control in response to changes in occupancy.
IR Receiver
PIR lens
Receives control and programming commands from an
which covers...
IR (infrared) handset.
IR Receiver
Light Level Sensor
Light Level Sensor
Status LED
Measures the overall light level in the detection area
Status LEDs
The LED flashes Red to indicate the following:
Walk Test LED active
Valid setting received
RJ45 connector
The sensor comes with a 300mm lead and RJ45 plug for
direct connection to the lighting control system. A CAT5
lead and coupler can be used to extend the lead length if
required.
Overview
Features
when movement is detected

Advertisement

loading
Need help?

Need help?

Do you have a question about the CP Electronics EBMHS-BLV and is the answer not in the manual?

Questions and answers

Summary of Contents for LEGRAND CP Electronics EBMHS-BLV

  • Page 1 Product Guide EBMHS-BLV Miniature Integration Presence Detector Overview The EBMHS-BLV (passive infrared) presence detector provides automatic control of lighting loads via a third party control device. Functioning as a presence detector, the unit can send signal to signify occupancy. The unit can also send out an analogue signal that corresponds to the light level.
  • Page 2 Detection diagram Range Walk across Height Range Diameter 2.8m Walk towards Height Range Diameter 2.8m Note: illustration shows an average of the walk across Installation The product is designed to be mounted directly to a luminaire, either on the inside or outside, or flush into the ceiling. The detector should be sited so that the occupants of the room fall inside the detection pattern (shown opposite), at a recommended ceiling height of 2.8m.
  • Page 3 Basic programming - UHS5 The functionality of the EBMHS-BLV is controlled by a number of parameters which can be changed or programmed by any of the following devices: • UHS5 Infrared Handset. See below for programmable functions. • UNLCDHS Infrared Handset (with LCD). See user guide for full programming details. For most basic programming operations the UHS5 handset can be used and the following procedures are based on using this device.
  • Page 4 Technical data EBMHS-BLV Dimensions See diagrams opposite Weight 0.02kg Supply Voltage 12-27VDC Power consumption On 85mW, Off 79mW Max load 75mA @ 27VDC Temperature -10ºC to 35ºC Humidity 5 to 95% non-condensing Material (casing) Flame retardant ABS and PC/ABS Type Class 2 EBMPIR-FRW IP rating...
