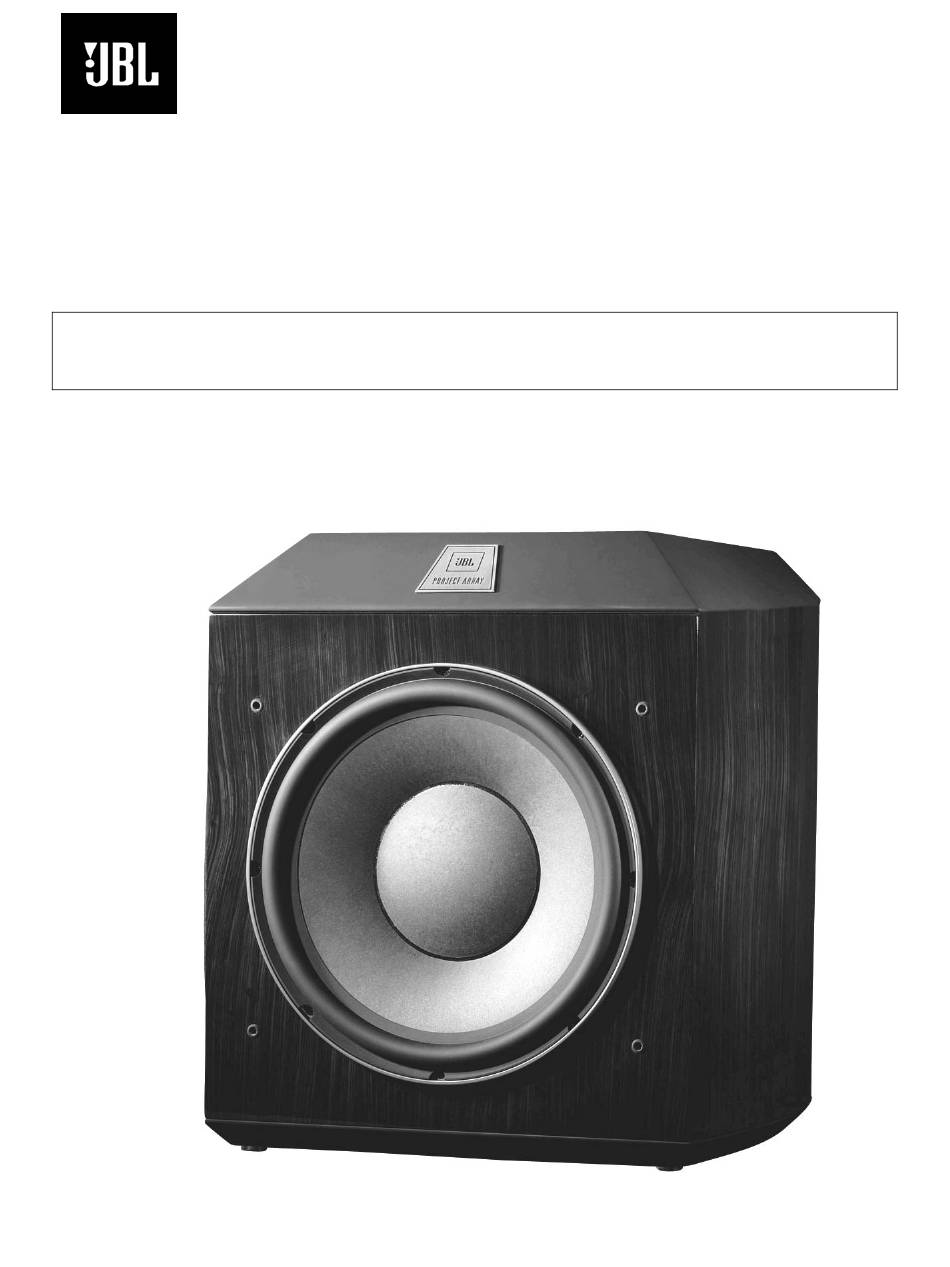

- Page 1 Project Array ™ 1500 Array Subwoofer Service Manual 230 Volt JBL Consumer Products 250 Crossways Park Dr. Woodbury, New York 11797 Rev0 4/2006...
-
Page 2: Table Of Contents
21" (533mm) Deep with grille Weight 125 lb (57kg) JBL continually strives to update and improve existing products, as well as create new ones. The specifications and details in this and related JBL publications are therefore subject to change without notice. -
Page 3: Packing
1500 Array Subwoofer Ref# Part Number Description 361041-002 1500 Array Owner’s Manual 331994-001 JBL Warranty Card 361408-001 1500 Array Outer Carton 354374-001 Packing Foam (Top) 354374-001 Packing Foam (Bottom) 340805-006 (Plate) Feet... -
Page 4: Detailed Specifications
1500 Array Subwoofer 1500 Array Powered Sub/ Plate Amp LINE VOLTAGE Yes/No Hi/Lo Line Nom. Unit Notes US 120VAC/60Hz 108-132 Vrms Normal Operation EU 230VAC/50-60Hz 207-264 Vrms Normal operation, MOMS required Asia 100VAC/50Hz 90-110 Vrms Normal operation, MOMS required QA Test Parameter Specification Unit... - Page 5 1500 Array Subwoofer QA Test Parameter Specification Unit Limits Conditions Notes Transients/Pops ATO Transient mV-peak @ Speaker Output Turn-on Transient mV-peak 1V-pk-pk @ Speaker Output AC Line cycled from OFF to ON Turn-off Transient mV-peak 1V-pk-pk @ Speaker Output AC Line cycled from ON to OFF Efficiency 500W of output power into rated impedance...
-
Page 6: Connections
1500 Array Subwoofer SPEAKER CONNECTIONS S S u u b b w w o o o o f f e e r r C C o o n n t t r r o o l l s s a a n n d d C C o o n n n n e e c c t t i i o o n n s s ( ( 1 1 5 5 0 0 0 0 A A r r r r a a y y O O n n l l y y ) ) ¡... -
Page 7: Operation
1500 Array Subwoofer 1500 ARRAY OPERATION Power On plug connected to a “live” If your main speakers can receptacle? Has the Power comfortably reproduce some Plug your subwoofer’s AC cord Switch ª been pressed to low-frequency sounds, set this into a wall outlet. Do not use the “on”... -
Page 8: Basic Troubleshooting
1500 Array Subwoofer BASIC TROUBLESHOOTING If there is low (or no) bass output • Make sure the connections to the left and right “Speaker Inputs” have the correct polarity (+ and –). • Make sure the subwoofer is plugged into an active electrical outlet. -
Page 9: Exploded View/Parts List
AMPLIFIER ASSEMBLY, 230V-1500 ARRAY 361406-003 POWER TRANSFORMER-1500 ARRAY BG 361407-001 PORT TUBE -1500 ARRAY 360806-001 CARBOARD TUBE,4 1/4x4x1/8x6-4338 47909-68 FOOT,NUT,INSERT,BLK 340805-004 FOOT,SPIKE,BLK 340805-005 GRILLE,FRONT, 1500 ARRAY 354507-001 WOOFER SCREW,10-32 X 1,FIL,PH,BLK ZINC,LCS 804-01110-16 AMPLIFIER SCREW,8 X 1,PAN,PH,PB,BLK ZINC,LCS 883-41110-16 GASKET,DRVR,15" 338073-001 LOGO-JBL 360813-001... -
Page 10: Test Set-Up And Procedure
1500 Array Subwoofer 1500 Array TEST PROCEDURE Equipment needed: • Function/signal generator/sweep generator • Multimeter • RCA cable General Unit Function (UUT = Unit Under Test) Switch/Controls: GAIN control full Counterclockwise (Min) CROSSOVER (Hz) Full Clockwise (140) PHASE switch - either position LFE/LP –... -
Page 11: Block Diagram
1500 Array Subwoofer 1500 ARRAY BLOCK DIAGRAM... -
Page 12: Electrical Parts List
JBL ARRAY 1500 SUB 230V ELECTRICAL PARTS LIST Part number Description 361406-003 Power amplifier module 015-1616600-100ZRI Input and preamp PCB 015-1616600-100ZRP Power PCB 015-1616600-100ZRF Fuse PCB 005-005756-003ZR GR Outer Carton K=K 570x555x475mm 005-011813-001ZR GR Inner carton K=K 180x130x440mm 005-031116-000ZS GS EPE 110x160mm t=10mm... - Page 13 JBL ARRAY 1500 SUB 230V ELECTRICAL PARTS LIST 024-330598-121ZS GS SMD Resistor 33K 1/4W J 1206 024-332498-100ZS GS SMD Resistor 3K32 1/8W F 0805 024-332598-101ZS GS SMD Resistor 33K2 1/8W F 0805 024-365697-100ZR GR SMD Resistor 365K 1/4W F 1206...
- Page 14 JBL ARRAY 1500 SUB 230V ELECTRICAL PARTS LIST 031-270444-101 SMD Capacitor 2700pF/50V K 1206 X7R 031-470144-101AZS GS SMD Capacitor 0u0047/50V K 0805 X7R 031-470244-102ZS GS Capacitor 0u047/50V K 0805 X7R 031-470344-100ZS GS Capacitor 470pF/50V K 0805 X7R 031-560243-100ZS GS Capacitor 56pF/50V J 0805...
- Page 15 JBL ARRAY 1500 SUB 230V ELECTRICAL PARTS LIST 051-359400-000ZR GR MOSFET N-CHANNEL PN:2SK3594-01SC 051-540101-000ZR GR Transistor PNP PN:2N5401 051-555100-000ZR GR Transistor NPN PN:2N5551 TO-92 052-150400-000ZR GR Bridge Regulator PN:GBJ1504 053-010200-000 IC:DIP PN:TOP102YAI (TOP SWITCH) 053-211100-000ZR GR IC:DIP,DRIVER PN:IR2111 8PIN 054-000100-100ZS...
- Page 16 JBL ARRAY 1500 SUB 230V ELECTRICAL PARTS LIST 073-032141-600ZR GR Heatsink 82.8x120.7x19.1mm 073-050001-000ZS GS FUSE CLIP P/N:CT-FH1206 073-111003-000ZR GR Shorting bar 54.9x13.6x1mm 073-111004-000ZR GR Shorting bar 29.5x12.4x0.8m/m 074-020005-000ZR GR Jack P/N 3516-T3C02 074-020018-000ZR GR ROCKER SW (POWER) PN:RF1003-BB4-0 074-030002-000ZR GR TOGGLE SW PN:L101-T2B4QE...
-
Page 17: Drawings
1500 Array Subwoofer... - Page 18 1500 Array Subwoofer...
- Page 19 1500 Array Subwoofer...
- Page 20 1500 Array Subwoofer...
- Page 21 1500 Array Subwoofer...
- Page 22 1500 Array Subwoofer...
-
Page 23: Ic/Transistor Pinouts
1500 Array Subwoofer... -
Page 24: Schematics
JBL Array 1500 power supply pcb 230 Volt. - Page 25 JBL Array 1500 sub schematic diagram amplifier 230V...
- Page 26 JBL Array 1500 sub, schematic diagram Pre-...
- Page 27 JBL Array 1500 sub, schematic diagram Harness 230 V...
- Page 28 1500 Array Subwoofer...
