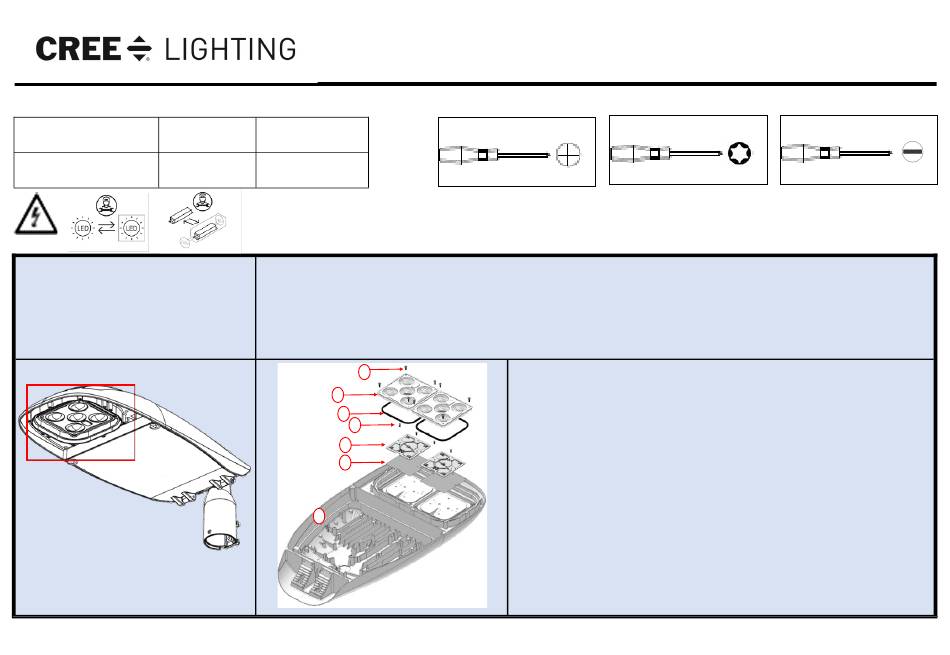

CREE LIGHTING XSP Series Disassembly Instructions

Models :
XSP 1 module Light Sources
codes
XSP 2 modules
LEA#
XSP#
Disassembly Instructions
Light Source (LS)
For End User (EU)
For Control Authority (CA)
N° DOC: DI069RLER0 Rev: 01
Power Supply
codes
PH#
Warning: Before opening the appliance, remove voltage from the mains line
LS-EU
1.LED bars are not replaceable by the end user by construction; only a technical operator at the production site can re-
place these bars. In order not to compromise the functionality and performance of the luminaire, the light sources used
in it can be handled only in environments protected from possible contamination of dust and / or external chemical
agents and with safety measures to prevent possible electrostatic discharge caused by the handling of the same.The con-
nection of the light sources to the body of the luminaire is also made by means of double-sided thermo-conductive
which, if not properly installed, could cause incorrect thermal management of the light sources.
2
3
4
5
6
7
1
Tools:
LS-CA
1.Follow points A - B - C of paragraph PS-CA
2.Unscrew the screws 2 of the optics 3
3.Remove the gaskets 4
4.Unscrew the screws 5 that fix LED bars 6 on housing 1
5.Remove LED bars 6 without damaging the thermal pad 7 and taking the
utmost care not to bend or damage the LED bars
XSP Series
Street Lights
Includes: XSP 1 Module, XSP 2 Modules
DISASSEMBLY INSTRUCTIONS
Latest Release Date: 18/11/2021
