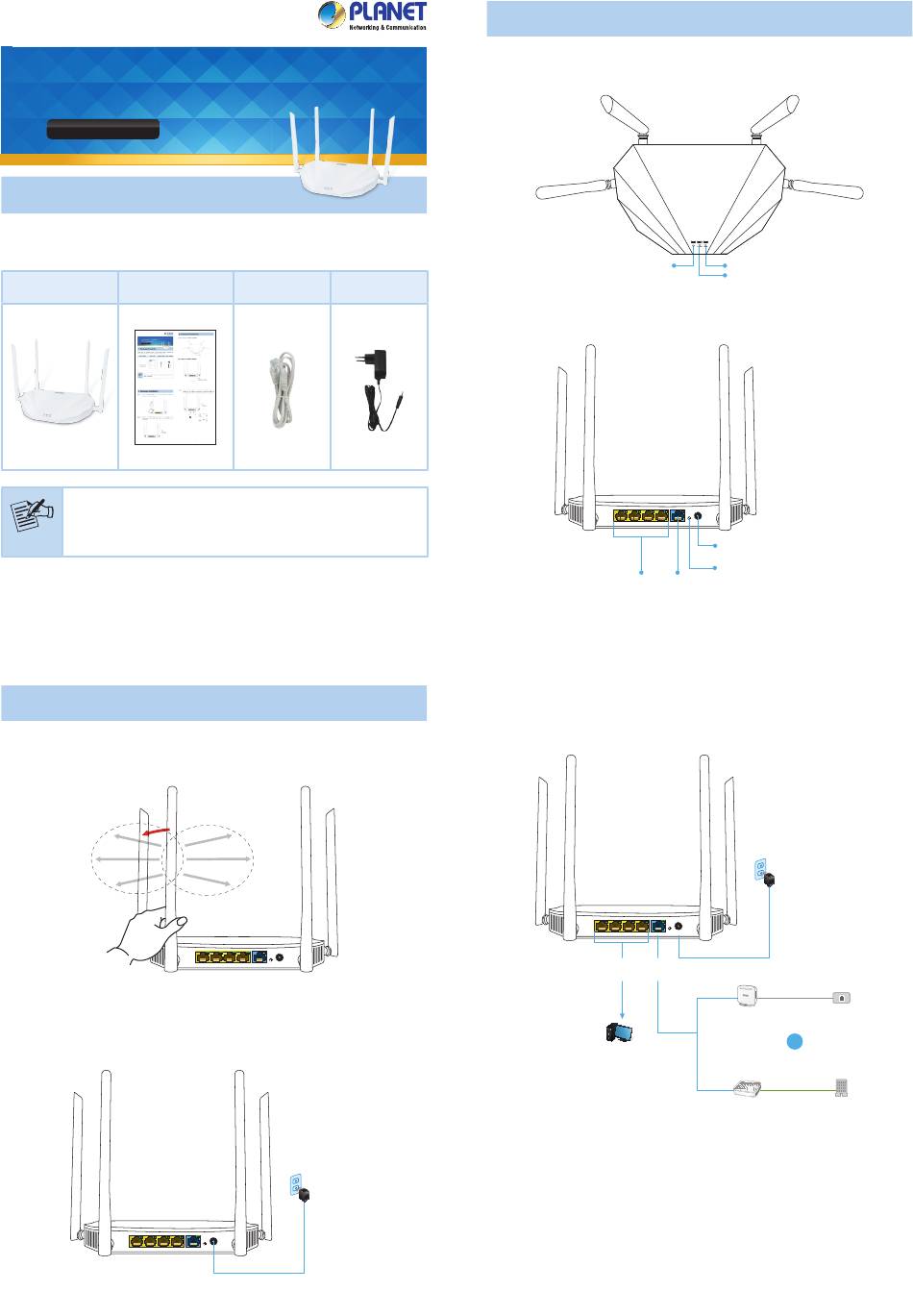

Planet Networking & Communication WDRT-1800AX Quick Manual

Dual Band 802.11ax 1800Mbps
Wireless Gigabit Router
WDRT-1800AX
►
1. Package Contents
Thank you for choosing PLANET WDRT-1800AX. Before installing the
router, please verify the contents inside the package box.
WDRT-1800AX Quick Guide
If there is any item missing or damaged, please contact the
seller immediately.
Note
3. Hardware Installation
Step 1: Locate the WDRT-1800AX in an optimum place, and adjust the
antenna for the best coverage.
Step 2: Connect the Power Adapter provided in the package to the
WDRT-1800AX. The Power LED on the front panel will turn on
accordingly.
LAN4 LAN3 LAN2
Ethernet Cable Power Adapter
– 1 –
LAN4 LAN3 LAN2 LAN1 WAN WPS/RST PWR
Power
Power
Adapter
LAN1 WAN WPS/RST PWR
– 3 –
2. Physical Introduction
Front Panel of WDRT-1800AX
Power
Rear Panel of WDRT-1800AX
LAN4 LAN3 LAN2 LAN1
LAN1~4
Step 3: Follow the figure below to connect the network devices. It
depends on your network environment to connect the WAN port
to a Cable/xDSL modem, or the Ethernet directly in your place.
LAN4 LAN3 LAN2 LAN1 WAN
LAN WAN
Ports Port
RJ45
PC
5GHz
2.4GHz
WAN WPS/RST PWR
Power
WPS (Press for 1 second)
Reset (Press for 5 seconds)
WAN
– 2 –
Power
Power
Adapter
WPS/RST PWR
RJ11
RJ45
Cable/ Phone
xDSL Modem Jack
or
Fiber
xPON ONT FTTx
