Components (Float) - MULTIQUIP WHITEMAN PRX Operation Manual

4
14
C
1. Operator's Seat — Adjustable operator's seat tilts
forward for service access.
2. Grab Bars (2) — Always use a grab bar to lift yourself
onto the float.
3. Propane Tank Bracket — Includes straps with latches
to secure the optional propane tank to the frame.
4. Motor Controllers (2) — Two inverters convert direct
current (DC) from the capacitor bank into alternating
current (AC) to power the drive motors.
5. Battery — Provides +12 VDC to the electrical system.
6. Steps (Front) — Use the steps to board and deboard
the float.
7. Fuel Filler Cap — Remove the fuel filler cap to add
unleaded gasoline to the fuel tank. Use 87 or 89 octane
gasoline only.
8. Retardant Spray Nozzles (2) — Actuated by the
buttons on the steering control handles, the spray
nozzles deliver uniform coverage of retardant over
the slab surface.
PRX RIDE-ON POWER FLOAT • OPERATION MANUAL — REV. #1 (01/05/21) — PAGE 23
B
2
B
C
6
8

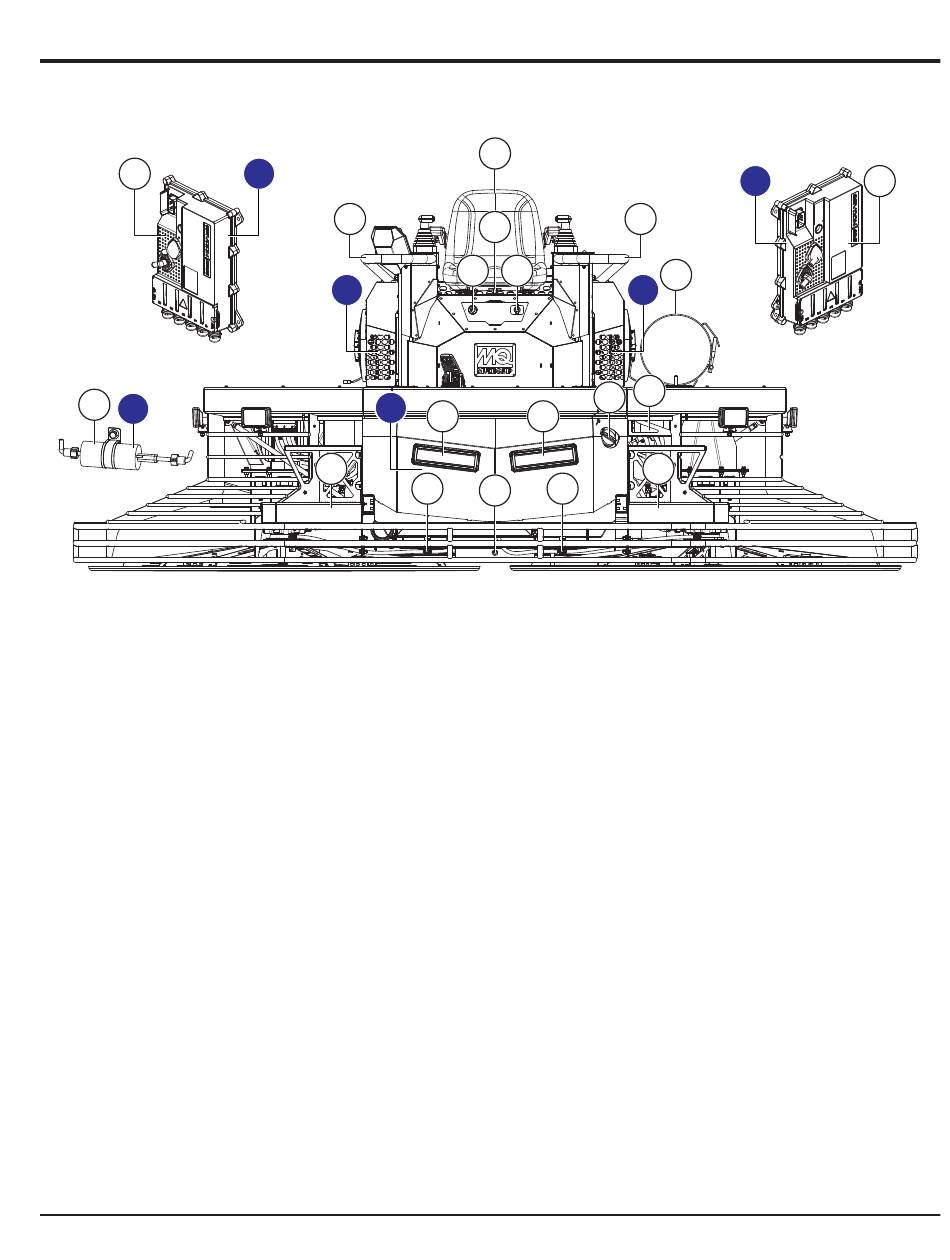

Figure 11. PRX Components

COMPONENTS (FLOAT)

1
11
13 10
7
9 9
8
12
9. Headlamps (2) — Front-facing, 30-watt, LED bar lights
provide illumination for indoor or nighttime finishing.
10. Accessory Port — Dual USB port for personal
electronic devices. Maximum current per port is
2.1 amps.
11. Seat Switch — Safety feature stops pan rotation when
the operator leaves the seat. The rotors will not turn
and engine speed will not rise above idle unless the
operator is seated.
12. Fuel Tank (Gasoline) — Holds 35 gallons (132 liters) of
unleaded gasoline. Use 87 or 89 octane gasoline only.
13. Service Port — Connect the Whiteman Service Tool
(WST) here to install and update software and to
perform adjustments and calibrations.
14. Fuel Pump — Delivers gasoline fuel to the engine.
A
2
3
A
5
6
4
