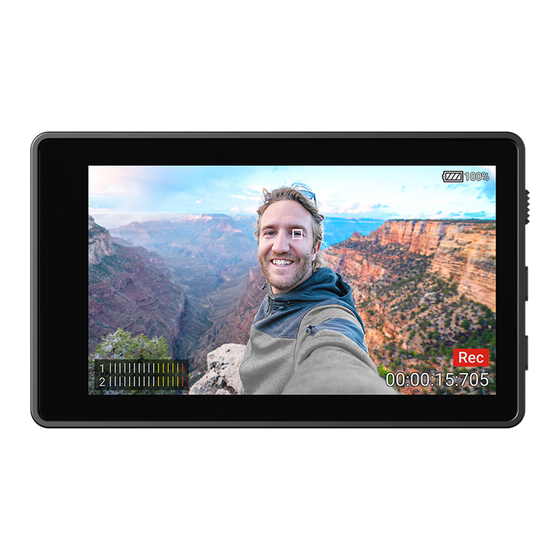

Help Guide
Vlog Monitor
XQZ-IV01
Preparing
About this Help Guide
Identifying the parts
Attaching a grip
Attaching a smartphone
Attaching the monitor
Connecting a smartphone
Attaching a microphone
Using as a selfie monitor
Shooting
Shooting while charging a smartphone
Software license, Legal information
Notes on the software license
Legal information
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XQZ-IV01 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sony XQZ-IV01

  • Page 1 Help Guide Vlog Monitor XQZ-IV01 Preparing About this Help Guide Identifying the parts Attaching a grip Attaching a smartphone Attaching the monitor Connecting a smartphone Attaching a microphone Using as a selfie monitor Shooting Shooting while charging a smartphone Software license, Legal information...
  • Page 2 FCC Statement F-754-100-11(1) Copyright 2021 Sony Corporation...
  • Page 3 Help Guide Vlog Monitor XQZ-IV01 About this Help Guide This is the Vlog Monitor XQZ-IV01 Help Guide. Note System and application updates can present the features in your device in another way than described in this Help Guide. Notes on use Please be sure to read the supplied "Important Information".
  • Page 4: Identifying The Parts

    Help Guide Vlog Monitor XQZ-IV01 Identifying the parts Monitor LCD screen (size: 3.5-inch / resolution: 1280 × 720) ON/OFF (Screen ON/OFF) switch FLIP (Screen flip) button (Brightness control) button Microphone jack POWER (Charging) port INPUT (Input) port Tripod socket hole...
  • Page 5: Connection Cable

    Connection cable F-754-100-11(1) Copyright 2021 Sony Corporation...
  • Page 6 Turn the camera mounting wheel of the grip to secure the holder. Note Use a tripod with a screw shorter than 5.5 mm. The holder cannot be fixed firmly to a tripod with a screw that is 5.5 mm or longer, causing damage to this unit. F-754-100-11(1) Copyright 2021 Sony Corporation...
  • Page 7 Help Guide Vlog Monitor XQZ-IV01 Attaching a smartphone Position the holder between the camera key (a) and the power key (b) of the smartphone. Put the smartphone on the top of the holder. Fit the smartphone to the bottom of the holder.
  • Page 8 Carefully attach the smartphone to avoid making scratches. F-754-100-11(1) Copyright 2021 Sony Corporation...
  • Page 9: Attaching The Monitor

    Do not let the left side of the monitor stick out of the smartphone. It may cause communication disturbance. Note Attaching the monitor improperly may cause the monitor to drop, resulting in bodily injury or malfunction of this unit. F-754-100-11(1) Copyright 2021 Sony Corporation...
  • Page 10: Connecting A Smartphone

    We cannot guarantee the performance if you use a cable other than the connection cable supplied with this unit. Always use the supplied connection cable. When the connection cable is connected, the monitor flashes for a moment due to energization. It is not malfunction. F-754-100-11(1) Copyright 2021 Sony Corporation...
  • Page 11: Attaching A Microphone

    Help Guide Vlog Monitor XQZ-IV01 Attaching a microphone You can attach a microphone to the accessory shoe of this unit. Please also refer to your microphone manual. Align the foot of the microphone with the accessory shoe on the holder and attach the microphone.
  • Page 12 The internal microphone of the smartphone is automatically switched to the external microphone when a microphone is connected to the microphone jack of the monitor of this unit. Note Connect the microphone before launching the app. F-754-100-11(1) Copyright 2021 Sony Corporation...
  • Page 13: To Adjust The Brightness

    Mirrored → Real → Real, Upside down → Mirrored, Upside down To adjust the brightness Press the (Brightness control) button. The brightness changes as follows each time the button is pressed. High → Boost → Low → Mid F-754-100-11(1) Copyright 2021 Sony Corporation...
  • Page 14 Do not leave the smartphone connected to this unit and charger while it is turned off. It may cause the smartphone to malfunction. Always use the following original Sony charger and USB cable since other types of chargers can increase charging time, not charge at all, or may even damage your device.
  • Page 15 Help Guide Vlog Monitor XQZ-IV01 Notes on the software license This section covers the software used by this product. Notices for file(s): SDK components and board peripheral drivers SDK examples (USB VCOM) SDK examples (PD) SDK Peripheral Driver SDK SoC files USB USB stack for MCUXpresso SDK 2.7.0...
  • Page 16 Apache License Version 2.0, January 2004 http://www.apache.org/licenses/ TERMS AND CONDITIONS FOR USE, REPRODUCTION, AND DISTRIBUTION 1. Definitions. "License" shall mean the terms and conditions for use, reproduction, and distribution as defined by Sections 1 through 9 of this document. "Licensor" shall mean the copyright owner or entity authorized by the copyright owner that is granting the License.
  • Page 17 Licensor for the purpose of discussing and improving the Work, but excluding communication that is conspicuously marked or otherwise designated in writing by the copyright owner as "Not a Contribution." "Contributor" shall mean Licensor and any individual or Legal Entity on behalf of whom a Contribution has been received by Licensor and subsequently incorporated within the Work.
  • Page 18 of the NOTICE file are for informational purposes only and do not modify the License. You may add Your own attribution notices within Derivative Works that You distribute, alongside or as an addendum to the NOTICE text from the Work, provided that such additional attribution notices cannot be construed as modifying the License.
  • Page 19 License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License. F-754-100-11(1) Copyright 2021 Sony Corporation...
  • Page 20: Legal Information

    Help Guide necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Corporation at any time and without notice. Such changes will, however, be incorporated into new editions of this Help Guide.
  • Page 21: Fcc Statement

    - Consult the dealer or an experienced radio/TV technician for help.” Supplier’s Declaration of Conformity Trade Name : Sony Model : AI-1500 Responsible Party : Sony Electronics Inc. Address : 16535 Via Esprillo, San Diego, CA 92127 U.S.A. Telephone Number : 858-942-2230 F-754-100-11(1) Copyright 2021 Sony Corporation...
