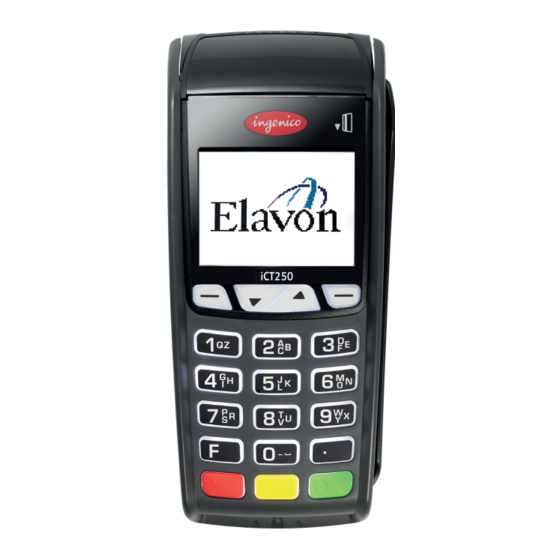

iCT 250 Setup Guide
Thank you for choosing talech and Elavon
This guide shows you how to setup and connect your iCT 250 device to the talech Register.
If you have any questions, contact talech support at
support@talech.com
or
888.995.1998.
Your iCT device supports the following payment methods
Chip & PIN
Contactless
*e.g. Apple Pay™
* * * * *
- 01 -
*Apple Pay™ is a registered trademark in the United States and other countries
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Elavon talech iCT 250
Summary of Contents for Elavon talech iCT 250
- Page 1 All manuals and user guides at all-guides.com iCT 250 Setup Guide Thank you for choosing talech and Elavon This guide shows you how to setup and connect your iCT 250 device to the talech Register. If you have any questions, contact talech support at support@talech.com...
- Page 2 All manuals and user guides at all-guides.com Installation Remove Box Contents Your iCT box should have the following contents: iCT 250 Terminal Magic Box Power Supply Phone Cable Paper Roll Insert Paper Roll & Connect Ethernet Cable Lift flap ontop of the terminal and Connect an ethernet cable from insert the paper roll the magic box to your router.
- Page 3 All manuals and user guides at all-guides.com Configuration To Begin, press the “Up” button Select “Setup Menu” (#3) from the home screen to enter the To select an option press the green button Admin Menu (highlighted below) or corresponding # on the keypad ADMIN MENU 1 - Clerk Menu 2 - Batch Menu...
- Page 4 All manuals and user guides at all-guides.com Configuration Select “Ethernet Setup” (#2) Select “Dynamic IP” (#1): NOTE: Write down IP address displayed ETHERNET MENU ETHERNET SETUP 1 - Current Setup 1 - Dynamic IP 2 - Ethernet Setup 2 - Static IP 3 - Timers Setup Press yellow button to go back Press the “Up”...
- Page 5 All manuals and user guides at all-guides.com Configuration Select “Misc. Options” (#9) Select Semi-Integrated (#1): ETHERNET MENU MISC. OPTIONS 6 - Security 1 - Semi-Integrated 7 - Terminal Info 8 - Host Managment 9 - Misc. Options Select “Enable SemiInteg” (#1) Select the “On”...
- Page 6 All manuals and user guides at all-guides.com Configuration Enter 6556 as the Press yellow button to go back Communications Port to the Semi-Integrated menu ETHERNET MENU 192.1668.2.2 Enter Terminal Port 6556 Select “Receipts Options” (#3) Select the “ECR” option (#1) SEMI-INTEGRATED RECEIPT OPTIONS 1 - Enable SemiInteg...
- Page 7 All manuals and user guides at all-guides.com Configuration Open the talech app on your iPad Go to the setting menu Select Card Reader Select iCT 220 and iCT 250 (highlighted in light blue) - 07 -...
- Page 8 Thank you again for choosing talech and Elavon to be part of your business experience. If you have further questions on how to set up your iCT 250 device, or questions relating to anything else, please dont hesitate to contact us.
