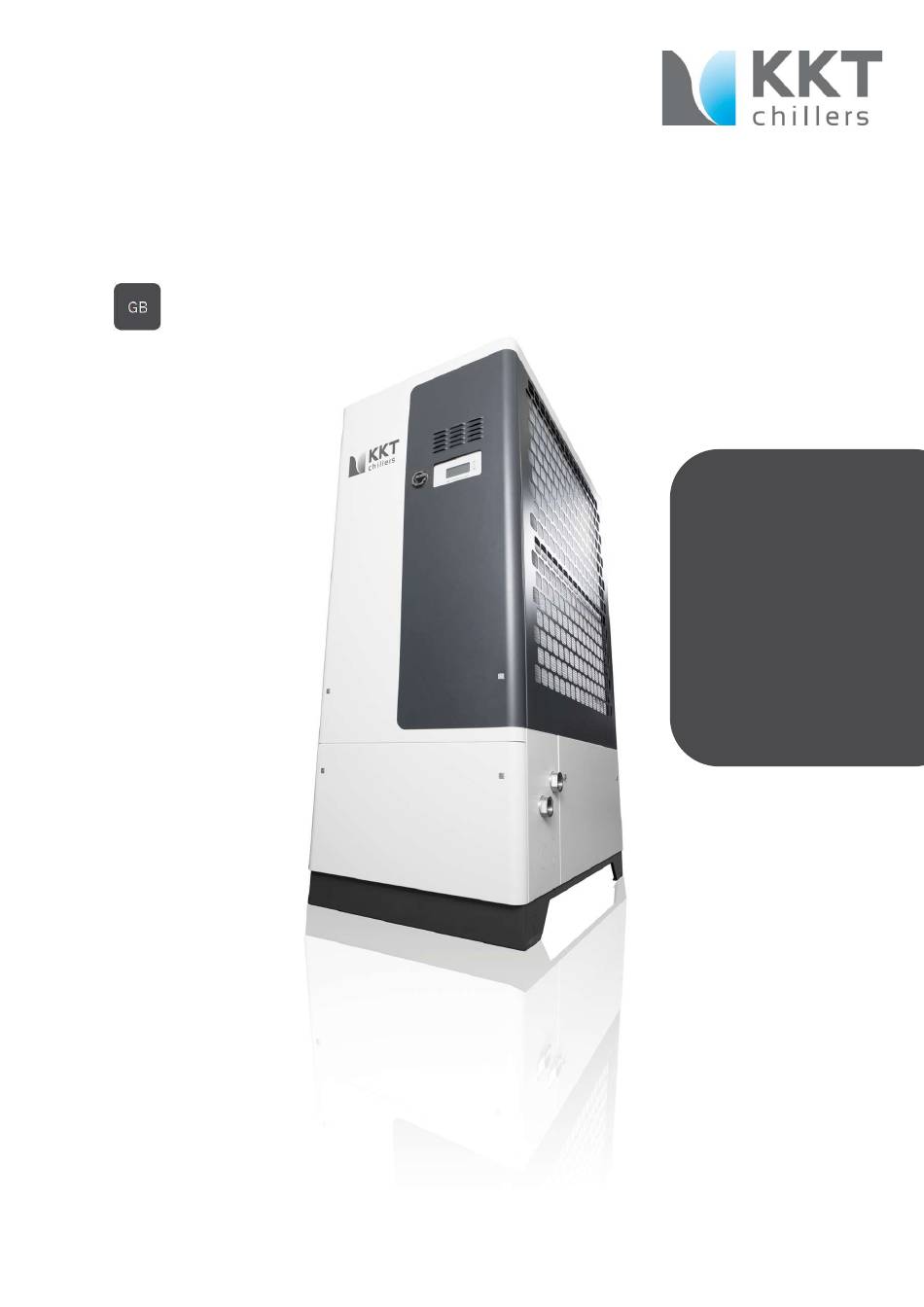

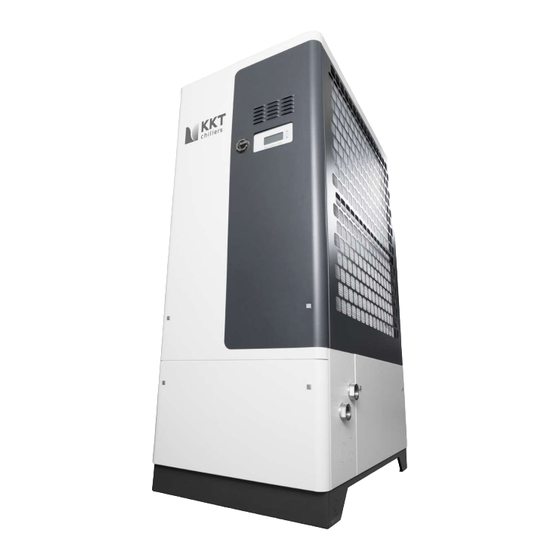

  • Page 1 Compact-Line Healthcare Operating instructions cBoxX 40 cBoxX 60 cBoxX 70 cBoxX 80 cBoxX 100 cBoxX 120 cBoxX 160 cBoxX 180...
  • Page 2 IL 60191 TF +1 833 558 4357 * F +1 847 734 1601 E techsupport@kkt-chillersusa.com Service East Asia KKT chillers East Asia Sales and Service Office 5-1-D, No. 333 Xingpu Road Modern Industrial Park Suzhou 215021, Jiangsu Province, P.R.C. S +86 512 6790 3091* F +86 512 6287 1077 service@kkt-chillerscn.com...

  • Page 3: Introduction

    Introduction These operating instructions have been drawn up by KKT chillers. They contain all important information and instructions for the installation and safe operation of the chiller. It also contains suggestions on how to prevent or correct faults. Please take enough time to carefully read this instruction manual and to process all the information that it contains.

  • Page 4: Table Of Contents

    Contents Introduction ............................. 3 Product description ........................8 1.1. Intended use ........................8 1.2. Technical data ........................9 1.3. Elements ........................... 16 1.4. Explanation of terms ......................17 Function and main components ..................... 17 2.1. Compressor ........................18 2.2. Evaporator ........................18 2.3.
  • Page 5 4.3. Residual energy........................ 30 4.4. Safety devices, guards and safeguards ................. 31 4.4.1. High-pressure limiter ....................31 4.4.2. High-pressure monitoring ..................32 4.4.3. Low-pressure monitoring ..................32 4.4.4. Flow monitoring ......................32 4.4.5. Personal protective equipment when operating the machine ......32 4.5.
  • Page 6 6.2.4. Effect of surrounding air flow .................. 46 6.2.5. Minimum clearances ....................46 6.2.6. Surface and foundation ................... 47 6.2.7. Stability ........................47 6.2.8. Levelling ........................47 6.2.9. Vibration isolation ....................47 6.2.10. Installation ........................ 47 6.2.11. Hydraulic installation ....................48 6.2.12.
  • Page 7 9.2. Condenser ........................59 9.3. Water filter ........................59 9.4. Complete cleaning of the cold water circuit ..............59 Service ............................60 10.1. Maintenance ........................60 10.2. Fault correction ........................ 60 10.3. Spare parts ........................60 Taking out of service ....................... 61 11.1.

  • Page 8: Product Description

    Please read all the points in these operating instructions before starting up the machine. You should pay particular attention to the points on safety, commissioning/startup and operation. Should you have any further questions concerning your machine, please contact the KKT chillers Service Team (see Contact details).

  • Page 9: Technical Data

    1.2. Technical data Table 3: Technical data cBoxX 40 cBoxX 40 cBoxX 40 Chillertyp SAP-Nummer 909040-00743 909040-00744 909040-00819 Refrigerating capacity @ tw2=13°C / tu=50°C / 4,0 m3/h 22 kW Refrigerating capacity @ tw2=11°C / tu=45°C / 4,1 m3/h 27kW Refrigerating capacity @ tw2=18°C / tu=45°C/ 2,4 m3/h...
  • Page 10 cBoxX 60 cBoxX 60 cBoxX 60 cBoxX 60 cBoxX 60 cBoxX 60 cBoxX 60 cBoxX 60 Chillertyp SAP-Nummer 909060-00238 909060-00239 909060-00241 909060-00242 909060-00243 909060-00244 909060-00377 909060-00424 Refrigerating capacity 41kW 41kW 41kW 41kW 41kW 41kW 41kW 41kW @ tw2=13°C / tu=45°C Ambient temperature range -25 - +45°C -25 - +45°C...
  • Page 11 Chillertyp cBoxX 70 cBoxX 70 cBoxX 70 cBoxX 70 cBoxX 70 cBoxX 70 cBoxX 70 SAP-Nummer 909070-00245 909070-00246 909070-00247 909070-00248 909070-00249 909070-00255 909070-00425 Refrigerating capacity @ tw2=13°C / tu=45°C 45kW 45kW 45kW 45kW 45kW 45kW 45kW Ambient temperature range -25 - +55°C -25 - +55°C -25 - +55°C -25 - +55°C...
  • Page 12 Chillertyp cBoxX 80 cBoxX 80 SAP-Nummer 909080-00284 909080-00529 Refrigerating capacity 50kW 59 kW @ tw2=9°C / tu=45°C Ambient temperature range -25 - +50°C -25 - +50°C Hermetically sealed refrigeration circuit Refrigerant R410A 2088 Refrigerant capacity CO2 equivalent 16,7 t CO2 16,7 t CO2 Cooling medium Water with 40Vol% AFN...
  • Page 13 Chillertyp cBoxX 100 cBoxX 100 cBoxX 100 cBoxX 100 cBoxX 100 SAP-Nummer 909100-00468 909100-00469 909100-00470 909100-00218 909100-00510 Refrigerating capacity 63 kW 63 kW 63 kW 60 kW 73 kW @ tw2=9°C / tu=45°C Ambient temperature range -25 - +50°C -25 - +50°C -40 - +50°C -25 - +50°C -25 - +50°C...
  • Page 14 Chillertyp cBoxX 120 cBoxX 120 cBoxX 120 cBoxX 120 SAP-Nummer 909120-00313 909120-00528 909120-00471 909120-00472 Refrigerating capacity 74 kW 88 kW 75 kW 75 kW @ tw2=9°C / tu=45°C Ambient temperature range -25 - +50°C -25 - +50°C -25 - +50°C -40 - +50°C Hermetically sealed refrigeration circuit Refrigerant...
  • Page 15 Chillertyp cBoxX 160 cBoxX 180 SAP-Nummer 909160-00690 909180-00701 Refrigerating capacity 94 kW 100 kW @ tw2=9°C / tu=45°C Ambient temperature range -25 - +50°C -25 - +50°C Hermetically sealed refrigeration circuit Refrigerant R410A 2088 Refrigerant capacity 17kg 23,5kg CO2 equivalent 35,5 t CO2 49,1 t CO2 Cooling medium...

  • Page 16: Elements

    1.3. Elements Figure 1: Elements Cover panel operating side top Safety instructions Cover panel operating side bottom Water connections Cover panel service side top Nameplate Cover panel service side bottom Display Cover panel condenser protection grilles Main switch Cover panels hydraulics 16 / 97 83001602.g...

  • Page 17: Explanation Of Terms

    1.4. Explanation of terms For the sake of better understanding, we have listed some relevant terms that are used frequently in this document. Table 4: Explanation of terms Term Explanation Application The source of heat hydraulically connected to the chiller. Process circuit Application and piping to the chiller.

  • Page 18: Compressor

    R410A is a fluorinated greenhouse gas consists of the zeotropic mixture 50% R32 and 50% R125 with virtually negligible temperature glide. R410A has a very high volumetric cooling capacity and has no ozone depletion potential (ODP=0). A corresponding safety data sheet can be requested from our KKT chillers Service Team (see: Contact details).

  • Page 19: Filter Dryer

    A corresponding safety data sheet can be requested from our KKT chillers Service Team (see: Contact details). 2.7. Filter dryer The task of the filter dryer is to absorb any contamination or moisture from the cooling circuit. Both refrigerant and oil are hygroscopic.

  • Page 20: Pump

    2.13. Pump The pump of the chiller provides for the necessary circulation of the cold water. 2.14. The fan draws in the cooling air from the environment via the condenser and discharges the heated air upward from the chiller. To prevent injuries, the fan is protected against accidental contact by protective grilles.

  • Page 21: Materials Used In The Water Circuit

    Materials used in the water circuit In the standard version, the material compilation is depicted as shown in Table 5: Table 5: Materials used in the standard version Component Material (cBoxX 40 – cBoxX180) Unit connections V2A 1.4305 Evaporator V2A 1.4301 and copper (99.9%) Pump Grey cast iron and V2A 1.4301...

  • Page 22: Water Quality

    Furthermore, any occurrence of mucilage bacteria in the cooling water must be ruled out. If this is not possible, KKT chillers can suggest or provide a suitable inhibitor on the basis of a biological water analysis to remove the mucilage agents.

  • Page 23: Permitted Coolant Media

    The positions marked with "accessory" are included with the device, unattached, and can be re-ordered at any time with the respective product number. The installation of the accessory is the responsibility of the installer of the machine. You can also ask our KKT chillers Service Team to arrange for this installation (see Contact details).

  • Page 24: Insulating Cold Pipes

    3.2. Insulating cold pipes To prevent condensation on cold pipes of the chiller, the option insulation of the cold pipes must be specified in case of high temperature differences between the environment and the cold water flow and taking into account the relative humidity.

  • Page 25: Filter Assembly Group Coolant Circuit (Accessories)

    Figure 4: Machine base (foot) - outside view Figure 5: Machine base (foot) - mounting on the baseplate Figure 6: Seismic feets are used for seismic and high wind gust regions 3.8. Filter assembly group coolant circuit (accessories) The water filter protects the cold water circuit against dirt. The set, consisting of a filter, fitting and two shut off valves, is enclosed with the chiller in a separate pack and must be fitted onto the cold water inlet of the chiller from the outside when the chiller is installed.

  • Page 26: Seaworthy Crate Packaging (Accessories)

    3.12. Seaworthy crate packaging (accessories) Seaworthy crates for the Compact-Line are produced according to International Standards for Phytosanitary Measures with packaging made of solid wood (ISPM 15). This means that the crates are made of heat-treated solid wood which has been stripped of its bark. Only wood-based materials, such as OSB boards, are used. In addition, all crates are marked with the IPPC logo and registration number.

  • Page 27: Safety

    3.14. CIP Chiller interface panel (accessories) The CIP accessory is a transfer station that can be installed in the customer's cold water circuit. The transfer station is made of Üsheet steel and contains a water filter, a flow rate indicator, inlet and outlet valve, pressure and temperature displays as well as a connection to an emergency cooling system.
  • Page 28 Table 7: Definition of the safety symbols Observe the instruction manual! Before opening the machine, disconnect the machine from the power supply. The machine may only be opened 5 minutes after it has been disconnected from the power supply. Beware of dangerous electrical voltage! If the machine is only turned off by means of the main switch, some of the terminals in the control cabinet will still be under dangerous voltage.
  • Page 29 Table 8: Hazard warnings ATTENTION! Work on the chiller must be carried out by properly qualified, competent personnel! The surfaces of pipes and components of the refrigerant and cold water circuit and electrical equipment can be very hot during operation and even for a while after. The surfaces of pipes and components of the refrigerant and cold water circuit and electrical equipment can be very hot during operation and even for a while after.

  • Page 30: Residual Energy

    4.3. Residual energy Even if all the hazard warnings in Chapter 4.2 are taken into account, the following residual energy situations can result in a hazard:  Rotational energy of the decelerating fan Despite the installed protective grille, hair or pieces of clothing can still be drawn in and caught.

  • Page 31: Safety Devices, Guards And Safeguards

    It is part of the safety chain. The PZH is installed on the refrigerant collector for the chiller types cBoxX 40 – cBoxX 180 (see Figure 10: Position of the high pressure limiter (PZH)).

  • Page 32: High-Pressure Monitoring

    4.4.2. High-pressure monitoring If the high pressure in the refrigeration circuit of your machine increases to a maximum value, the compressors are switched off via the high-pressure limiter (see Chapter 4.4.1 High-pressure limiter). A manual reset is required. The high-pressure monitoring on the other hand reduces the compressor output before the PZH's switch-off value is reached.

  • Page 33: Personal Protective Equipment For Servicing Work

    4.5. Personal protective equipment for servicing work Servicing work on the machine includes all work for which the machine is opened and one or more cover panels are dismantled. In particular, this includes cleaning work in accordance with Chapter 8.7.1 Thermostatic pump start To save energy, the consumer pump is not operated permanently, but cyclically.

  • Page 34: Cold Water Flow Temperature Control

     Release of the cold water feed or return sensor,  No exceeding of the cold water feed temperature,  Release through tank level monitoring,  Approval by cold water pressure monitoring on evaporator. A primary pump is released if: ...

  • Page 35: Compressor Control

    Heating = Y- cooling electric controller Compressor 4 on 100 % Compressor 3 on 75 % Compressor 2 on 50 % Compressor 1 on 25 % Compressor 1 off Temperature - 25 % Compressor 2 off - 50 % Compressor 3 off - 75 % Compressor 4 off - 100 %...

  • Page 36: Fan Speed Control

    short time. If this occurs more than three times within an hour the compressors are blocked. Before a low- pressure fault is triggered a low-pressure warning is signalled. 4.5.5. Fan speed control Due to the continuous adjustment in the number of fans, the condensing pressure is kept constant depending on the ambient temperature by means of a PI controller.

  • Page 37: Airborne Sound Emissions

    Table 9: Personal protective equipment for servicing work Wear foot protection! Wear hand protection! Wear eye protection! Wear protective clothing! 4.7. Airborne sound emissions The airborne sound emissions data is given as the sound pressure level, measured at a distance of five metres without reflection.

  • Page 38: Notes On Reducing Noise And Vibration

    4.8. Notes on reducing noise and vibration 4.8.1. Noise Details of your chiller's airborne sound emissions are given in Chapter 4.7. To reduce noise pollution caused by airborne sound emissions it is advisable to install the chiller out of doors and out of the range of workplaces.

  • Page 39: Other

    4.9.4. Other ATTENTION! Risk of suffocation if the chiller is installed in a room that is too small please note and follow chapter 6.2.2. ATTENTION! In the EU you must follow the provisions of EN378-3. Please also note and follow the local installation regulations and provisions, especially the ordinance on handling water pollutant substances and BGR500.

  • Page 40: Öl Poe 160Sz

    Personal protective equipment:  Respiratory protection: not necessary if adequate ventilation available. Self-contained or air-line breathing apparatus within enclosed rooms, if insufficient oxygen supply available, in case of substantial or uncontrollable release. Only use breathing apparatus in accordance with the international / national standards.

  • Page 41: Reasonably Foreseeable Misuse

    Chillers with refrigerant capacity >12 kg must be declared as dangerous goods in accordance with UN2857. The cBoxX 40 – cBoxX 70 chillers have been specified so that they contain <12 kg refrigerant. This reduces the logistics costs of our customers and final consumers.

  • Page 42: Transport

    5.2. Transport The chiller may only be transported using a fork lift truck or crane with sufficient rated capacity. The net weight of your machine is given in the technical data. Please note that if a machine has already been in operation, it can contain residual fluids, which increase the transport weight.

  • Page 43: Forklift Truck

    It is possible to transport the machine both in a packed and an unpacked condition by means of fork lift truck. Please note that the centre of gravity may vary depending on the model. Figure 12: center of gravity cBoxX 40 – cBoxX 60 Figure 12: center of gravity cBoxX 70 – cBoxX 100 Figure 13: center of gravity cBoxX 120 –...

  • Page 44: Unpacking

    5.3. Unpacking ATTENTION! Packing straps are mechanically stressed and can snap back when cut. Risk of injuries! Remove all straps, films, corner protectors and spacers carefully. Optional accessories may be located under the film. Ensure that they are not damaged. The packaging can be recycled according to the local regulations.

  • Page 45: Installation

    6. Installation 6.1. Overview Several tasks are necessary to install the chiller. The following work schedule shows the order in which they are carried out: Prepare the installation site  Install the machine  Flush the cold water circuit  Hydraulic installation ...

  • Page 46: Ambient Temperature

    Table 11: Minimum volume of the installation room with regard to maximum refrigerant concentration in case of a leakage if installed indoors cBoxX chiller Minimum volume of the installation room (in m³) 6.2.3. Ambient temperature The chiller is cooled by the ambient air and the lower the temperature of this cooling air the more economically the chiller works.

  • Page 47: Surface And Foundation

    6.2.6. Surface and foundation The surface on which the machine is installed must be flat and horizontal. All the machine's feet must have uniform contact with the ground. Ensure that the ground/subsoil has sufficient load bearing capacity. According to the installation instructions a continuous concrete foundation with the given minimum size is recommended.

  • Page 48: Hydraulic Installation

    6.2.11. Hydraulic installation The system designer is responsible for choosing the material and the cross-section of the hydraulic connections between the chiller and the application. Other dependent factors include the accepted pressure loss in the connection lines and the available pump pressure. When designing the connections attention must also be paid to the minimum flow rate to be maintained and sufficient resistance to the maximum pump pressure.

  • Page 49: Venting

    6.2.14. Venting If your chiller contains a horizontal pump, the pump does not have to be vented. Before switching on the pump the vent plug must be opened at the automatic vent and left open while the unit is running until all air has completely escaped from the pump body (see Figure 15).

  • Page 50: Commissioning

    The supply cable must be routed into the machine. Cut-outs are provided for this purpose in the baseplate and in the compressor mount (cBoxX 40 – cBoxX 100). Feed the supply cable, protected by rubber grommets, through these openings...

  • Page 51: Installation Checklist

    7.1. Installation checklist  Unit installed horizontal and stable? Any vibration damping and floor anchors installed?  Spaces / clearances around the unit are adequate according to the requirements?   Air intake side free from packaging materials, etc.? Hydraulic connection OK? ...

  • Page 52: External Release

    8.3. External release The contact for external release is bridged in the delivery state. An external control line can be wired instead of the bridge. Please refer to Chapter 6.2.15 Electrical installation for information on installing the external release. Fully automatic operation starts with this external release. 8.4.

  • Page 53: Start Screen

    Use the "UP" and "DOWN" buttons to select the required menu item. The selected menu item is displayed with inverse text. Press the "OK" button to return to or exit the selected menu. The data is accepted at the end of the menu by selecting the box with the tick/checkmark. In the Start screen the "right" arrow points towards the Main menu.

  • Page 54: Main Menu

    8.5.2. Main menu Figure 20: Main menu From the Main menu you can move into the submenus or return to the Start screen. For the structure of the individual submenus see Fehler! Verweisquelle konnte nicht gefunden werden. Fehler! Verweisquelle konnte nicht gefunden werden., starting on page Fehler! Textmarke nicht definiert.. The entries of the submenus are either visible or hidden depending on the configuration of the system.

  • Page 55: Alarm Menu

    8.5.5. Alarm menu In the alarm menu the alarms are listed. The alarm is acknowledged if the "OK" button is pressed for longer than eight seconds. (after five seconds, the display switches back to the start menu)  active: The alarm is still active. (e.g. DI MSS …) The motor protection switch has triggered. ...

  • Page 56: Controller Description

    8.7. Controller description 8.7.1. Thermostatic pump start To save energy, the consumer pump is not operated permanently, but cyclically. An evaporator pump, if present, is also controlled. The tank heater or compressor is released after a short circulation of the cold water.

  • Page 57: Cold Water Flow Temperature Control

     Approval by cold water pressure monitoring on evaporator. A primary pump is released if:  It is selected in the system configuration of the software,  No motor protection switch faults are queued,  No flow monitoring faults are queued, ...

  • Page 58: Compressor Control

    Different operating states reduce the number of cooling levels required by one cooling level:  High pressure warning  Low pressure warning  Difference between high and low pressure is too large. 8.7.5. Compressor control The control is defined for a refrigeration circuit with a maximum of four compressors. The number of compressors is selected by means of coding resistance.

  • Page 59: Group Fault Alarm

    9.4. Complete cleaning of the cold water circuit Due to the complexity and diversity of the possible external materials, we recommend that the complete cleaning of the cold water circuit only be carried out by qualified personnel – please contact our KKT chillers Service Team ( details).

  • Page 60: Service

    To ensure that the performance of your chiller is not impaired, we recommend that you only use original spare parts purchased from KKT chillers. In this way you ensure the reliability and quality of the machine. For spare parts enquiries, please contact our KKT chillers Service Team spareparts@kkt-chillers.com or (Contact details).

  • Page 61: Taking Out Of Service

    11. Taking out of service ATTENTION! Decommissioning must only be carried out by professional and qualified technicians. They must also be familiar with the local regulations. For safety-relevant instructions regarding possible residual energy, please refer to Chapter 4.3 Residual energy. 11.1.

  • Page 62: Recycling

    A specialised disposal company must be contracted to dispose of these wastes. They issue a proof of disposal which must be archived. The chiller can be returned to KKT chillers for disposal. Please contact our KKT chillers Service Team for details ( details).

  • Page 63: Menu Navigation

    Menu navigation Attention:: The parameters specified here serve only as an example. For the parameterization relevant to your chiller, please refer to the parameter set included in the unit. Main menu Information Information Settings Measuring Measuring Alarm menu Energy meter Pressure pump 1 Control Panel Operating hours...
  • Page 64 Main menu Information Information Settings Measuring Alarm menu Status Status Control Panel Energy meter DI resetswitch Software update Operating hours DI remote start 1 Datalog export Digital inputs DI remote start 2 Datalog stop Digital outputs DI phase monitoring Analogue inputs DI mpcb Pump 1 Analogue outputs DI flow pump 1...
  • Page 65 Main menu Information Information Settings Measuring Alarm menu Status Control Panel Energy meter Energy meter Software update Operating hours U L1 N Datalog export Digital inputs U L2 N Datalog stop Digital outputs U L3 N Analogue inputs I L1 Analogue outputs P L1 N Software status...
  • Page 66 Main menu Information Information Settings Measuring Alarm menu Status Control Panel Energy meter Software update Operating hours Datalog export Digital inputs Digital inputs Datalog stop Digital outputs DI1 clip 1,2 Analogue inputs DI1 clip 3,4 Analogue outputs DI1 clip 5,6 Software status DI1 clip 7,8 Test point 1...
  • Page 67 Main menu Information Information Settings Measuring Alarm menu Status Control Panel Energy meter Software update Operating hours Datalog export Digital inputs Datalog stop Digital outputs Analogue inputs Analogue inputs Analogue outputs AI1 clip 1,2 Inc. Software status AI1 clip 1,4 Inc.
  • Page 68 Main menu Information Information Settings Measuring Alarm menu Status Control Panel Energy meter Software update Operating hours Datalog export Digital inputs Datalog stop Digital outputs Analogue inputs Analogue outputs Software status Software status Test point 1 Display 3.24 Error memory Controller ES910 3.24 Test point 1...
  • Page 69 Main menu Information Settings Settings Alarm menu Limit monitoring Limit monitoring Control Panel Control Limit temperature cooling water Software update Control pump Time delay Datalog export Control compressor Outlet temp. Datalog stop Chiller configuration Running delay Sensor configuration Outlet max STOP 32.0 °C Outlet max warning...
  • Page 70 Settings Limit monitoring Control Control Control pump Thermost. pump start Thermost. pump start Control compressor Control pump 1 Interval pressure Basics Control pump 2 Time delay pressure Chiller configuration Control cold water Runtime temperature Sensor configuration Control hot gas bypass Minimum Control cold water Setpoint...
  • Page 71 Settings Limit monitoring Control Control Control pump Thermost. pump start Control compressor Control pump 1 pressure Basics Control pump 2 pressure Chiller configuration Control cold water Control hot gas bypass temperature Sensor configuration Control hot gas bypass Start relief sec. Control cold water valve Output control 2point Control tank heating...
  • Page 72 Settings Limit monitoring Control Control Control pump Thermost. pump start Control compressor Control pump 1 pressure Basics Control cold water temperature Chiller configuration Control hot gas bypass Sensor configuration Control cold water valve Control tank heating Control EEV superheating Control condensation Control condensation Control cooling water Control cooling water...
  • Page 73 Settings Limit monitoring Control Control Control pump Thermost. pump start Control compressor Control pump 1 pressure Basics Control cold water temperature Chiller configuration Control cold water temperature Sensor configuration Control hot gas bypass Control cold water valve Control tank heating Control condensation Control cooling water Control ESS free cooling...
  • Page 74 Main menu Information Settings Settings Alarm menu Limit monitoring Control Panel Control Software update Control pump Control pump Datalog export Control compressor Delay control sec. Datalog stop Basics After-run time sec. Chiller configuration Pump after-run time sec. Sensor configuration Switch flow sensor Delay start sec, Delay running...
  • Page 75 Main menu Information Settings Settings Alarm menu Limit monitoring Control Panel Control Software update Control pump Datalog export Control compressor Control compressor Datalog stop Basics Compressor type Chiller configuration Year of construction 2018 Sensor configuration Time between 2 starts sec. Min timeout sec.
  • Page 76 Main menu Information Settings Settings Alarm menu Limit monitoring Control Panel Control Software update Control pump Datalog export Control compressor Datalog stop Basics Chiller configuration Chiller configuration Sensor configuration Number of compressors 1 Heat exchanger Steel Thermost. Pump start Pump 1? Consumer Pump 1 VFD? Pump 1 flow?
  • Page 77 Main menu Information Settings Settings Alarm menu Limit monitoring Control Panel Control Software update Control pump Datalog export Control compressor Datalog stop Basics Chiller configuration Sensor configuration Sensor configuration AI pump pressure 1 Measuring 4 mA -0.5 Measuring 20 mA 10.0 AI pump pressure 2 Measuring 4 mA...
  • Page 78 Main menu Information Settings Alarm menu Alarm menu Control Panel AI pump pressure 1 Temp. cooling water on max STOP Software update AI pump pressure 2 Temp. cooling water on min STOP Datalog export AI cold water pressure evaporator Temp. cooling water on max STOP Datalog stop AI press.
  • Page 79 Main menu Information Settings Alarm menu Control Panel Control Panel Software update Language Language Datalog export Settings Deutsch Datalog stop IP address English Serial number Français Save parameters Română Load parameters Čeština Password Magyarul Dansk Eesti Português Lietuviskai Polski Slovenščina Svenska Suomi Türkçe...
  • Page 80 Main menu Information Settings Alarm menu Control Panel Control Panel Software update Language Datalog export Settings Datalog stop IP address Serial number Serial number Save parameters Entry of serial number Load parameters 9000-0000 Password Result Saving to controller:OK Saving to USB:OK Load parameters XXXXXXXX.par Password...

  • Page 81: Troubleshooting

    Troubleshooting Error Display view Type of message Message description Cause of the message Troubleshooting Reaction of the chiller code HP warning Group warning Condensation pressure Condensation pressure Clean the condenser and filter. A compressor is switched off if the has exceeded the threatens to run against the Check the function of the fan.
  • Page 82 Error Display view Type of message Message description Cause of the message Troubleshooting Reaction of the chiller code LP STOP Group fault alarm Analog input low Analog input not connected or Check liquid flow. Check the After starting the compressor, the low pressure (PWM) on µPC, defective.
  • Page 83 Error Display view Type of message Message description Cause of the message Troubleshooting Reaction of the chiller code Temp. outlet 2 Max Group warning Outlet temperature of Thermal overload, no cooling, Check cooling output, check All components continue running, Warn the refrigerant circuit is cooling valve does not work;...
  • Page 84 Error Display view Type of message Message description Cause of the message Troubleshooting Reaction of the chiller code Diff. pressure cooling Group fault alarm Differential pressure water Min Warn cooling water inlet - cooling water outlet too Conduc. max. STOP Group fault alarm Conductivity exceeds Conductivity too high.
  • Page 85 Error Display view Type of message Message description Cause of the message Troubleshooting Reaction of the chiller code Temp. cooling water On Group fault alarm Maximum inlet Cooling water circuit does not Check cooling water production; System switches off immediately Max STOP temperature work,...
  • Page 86 Error Display view Type of message Message description Cause of the message Troubleshooting Reaction of the chiller code Pressure cooling water Group fault alarm Pressure cooling water On Max STOP inlet at the heat exchanger is too high Pressure cooling water Group fault alarm Pressure cooling water On Min STOP...
  • Page 87 Error Display view Type of message Message description Cause of the message Troubleshooting Reaction of the chiller code AI Freecooler inlet Group fault alarm Measured value of the Sensor defective, Check the electrical connections Free cooling is blocked. from Version 2.60 analogue input outside sensor break of the sensor,...
  • Page 88 Error Display view Type of message Message description Cause of the message Troubleshooting Reaction of the chiller code AI pump pressure 2 Group fault alarm Measured value of the Sensor defective, Check electrical connections of Pump 1 & 2 = Consumer pump from Version 2.60 analogue input outside sensor break...
  • Page 89 Error Display view Type of message Message description Cause of the message Troubleshooting Reaction of the chiller code AI Temp. cooling water Group warning Measured value of the Sensor defective, Check the electrical connections analogue input outside Sensor break of the sensor, the valid measuring or sensor short circuit Testing the sensor on the basis...
  • Page 90 Error Display view Type of message Message description Cause of the message Troubleshooting Reaction of the chiller code DI mpcb Pump 1 Group fault alarm Motor protection switch Motor current above the Check the motor power Pump 1 & 2 = Consumer pump has tripped permissible range, consumption, check the...
  • Page 91 Error Display view Type of message Message description Cause of the message Troubleshooting Reaction of the chiller code DI mpcb Pump 2 Group fault alarm Motor protection switch Motor current above the Check the motor power Pump 1 & 2 = Consumer pump has tripped permissible range, consumption, check the...
  • Page 92 Error Display view Type of message Message description Cause of the message Troubleshooting Reaction of the chiller code Flow, pump 2 oper. Group fault alarm Flow switch did not Flow too low Check flow, check shut-off Pump 1 & 2 = Consumer pump switch through during valves, check the setting of the - Pump 2 switches off,...
  • Page 93 Error Display view Type of message Message description Cause of the message Troubleshooting Reaction of the chiller code DI high-pr. limiter Group fault alarm High-pressure limiter Unable to remove the waste Clean the condenser and filter. Pumps continue to run, has tripped.
  • Page 94 Error Display view Type of message Message description Cause of the message Troubleshooting Reaction of the chiller code DI fault fan ESS Group fault alarm Internal monitoring Motor runs only on two Check the motor current All components continue of the fan triggered. phases, direction consumption, check the...

  • Page 95: Maintenance Intervals In Accordance With The Vdma

    III. Maintenance intervals in accordance with the VDMA Explanation Annual Six- Remark monthly required Compressor Optical check for dirt, damage and corrosion Check fixing, check running noises Measure the intake pressure Measure the suction gas temperature upstream of the compressor Measure the compression end temperature at the discharge port Check the oil level...
  • Page 96 Explanation Annual Six- Remark monthly required Parts in the refrigeration circuit/water circuit Optical check for dirt, damage and corrosion Check insulation for damage Check filter dryer for blockage Replace filter dryer If com- ponents in the refrig- eration circuit are replaced Check all pipes carrying refrigerant for corrosion and damage...

  • Page 97: Product Registration

    No.: Explanation Annual Six- Remark monthly required Tank / water tank Optical check for dirt, damage and corrosion Check fixing Check level Control cabinet Optical check for dirt, damage and corrosion Check fixing Check all threaded connections Check all indicator lights and error messages Check the temperature and pressure sensors are functioning properly Check the function of the motor protection switches...
