KKT chillers cBoxX 60 Installation Manuallines

Cboxx series
Hide thumbs Also See for cBoxX 60:
Table of Contents

Advertisement

Quick Links

cBoxX
SERIES
cBoxX 60
cBoxX 70
830.013.02.K_Installation Guidelines (USA ONLY!) - cBoxX (Version 1.3).docx
KKT chillers, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the cBoxX 60 and is the answer not in the manual?

Questions and answers

Related Manuals for KKT chillers cBoxX 60

Summary of Contents for KKT chillers cBoxX 60

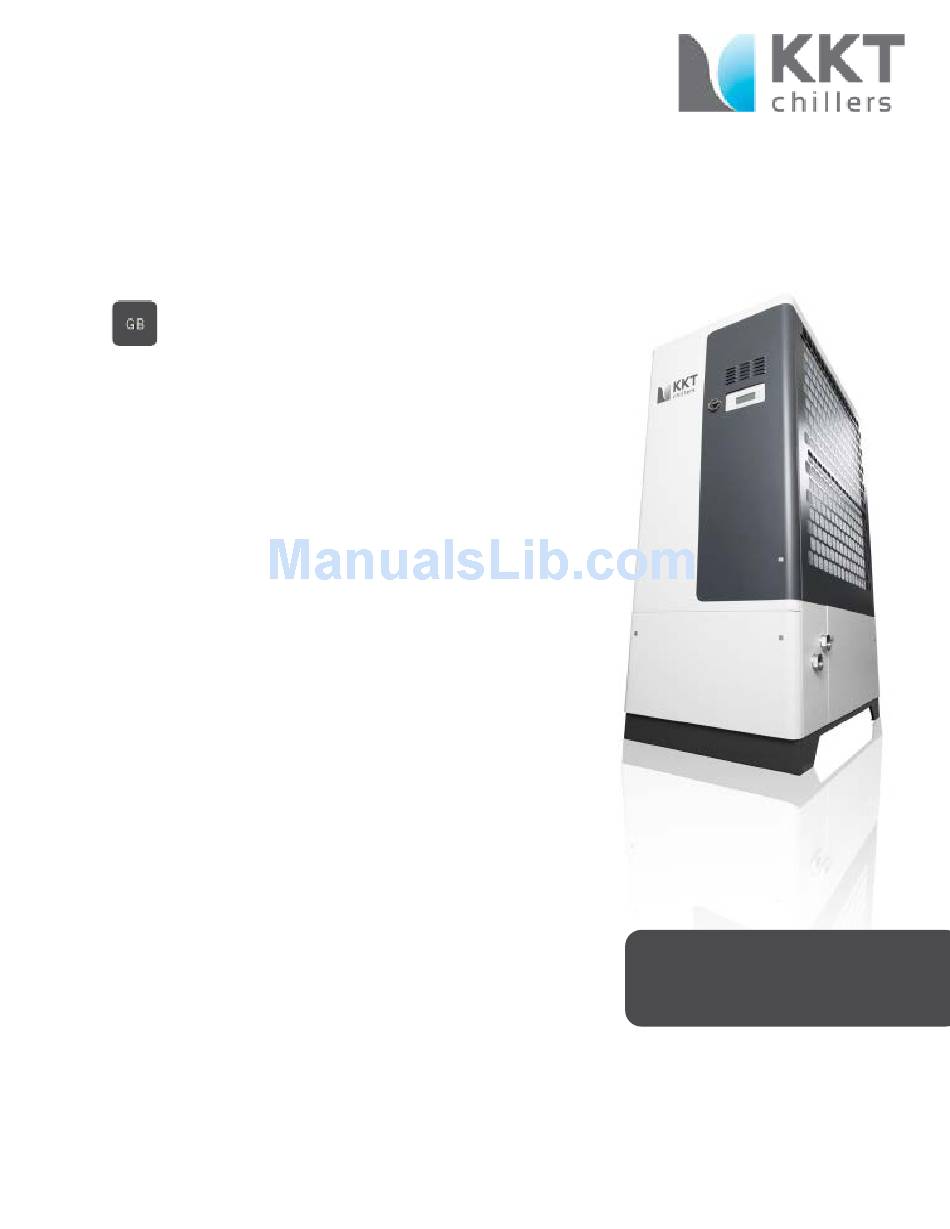

  • Page 1 SERIES INSTALLATION GUIDELINES cBoxX 60 cBoxX 70 830.013.02.K_Installation Guidelines (USA ONLY!) - cBoxX (Version 1.3).docx KKT chillers, Inc.
  • Page 2 Rooftop curbing to be installed per your local building code  specifications. 1.2 Minimum Pad Dimensions: • cBoxX 60: Approx. 57in. (1448mm) long by 41 in. (1041mm) wide. • cBoxX 70: Approx. 81in. (2057mm) long by 41 in. (1041mm) wide.
  • Page 3 Transport. (Crated) Weight: 1720 lbs. (780kg) 1863 lbs. (845kg) 830.013.02.K_Installation Guidelines (USA ONLY!) - cBoxX (Version 1.3).docx 2 | P a g e...
  • Page 4 Maintain at least 8 feet clearance (2500mm) above the chiller to allow proper discharge of  warm air from the chiller. cBoxX 60: cBoxX 70: 830.013.02.K_Installation Guidelines (USA ONLY!) - cBoxX (Version 1.3).docx 3 | P a g e...
  • Page 5 1.5 Transporting and Rigging Transport (Crated) Measurements: cBoxX 60:  Length: Approx. 56 in. (1430 mm).  Width: Approx. 41 in. (1030 mm).  Height: Approx. 88 in. (2230 mm). cBoxX 70:  Length: Approx. 80 in. (2030 mm).  Width: Approx. 41 in. (1030 mm).
  • Page 6 1.6 Crane Transport: If a crane will be used to transport the chiller, please note the following:   Lift the chiller only from its base. Insert two steel rods through the holes in the base. Rods must be specifically designed for this purpose, and able to support the weight of the unit (see chart).
  • Page 7 Glycol KKT Chiller above Sea Chiller (metric) Way Piping Degree (35% to 50%) Level Elbows 10 long cBoxX 60 <=50M (164’) @ radius elbows US-Version 2000 1-1/2” RP 1-1/2” Pipe 35% to 50% one way (or 20 round trip) 10 long 0-100M (328’) @...
  • Page 8 Maximum allowed elbows in total piping run is ~ 20 pcs.  must Long radius elbows be used.  2.6 External installations guidelines (cBoxX 60 + 70) – IMPORTANT! 830.013.02.K_Installation Guidelines (USA ONLY!) - cBoxX (Version 1.3).docx 7 | P a g e...
  • Page 9 3.0 Technical Requirements 3.1 Glycol  The cBoxX chillers require a water/ glycol mixture of 35-37 percent glycol to water for regions with ambient temperatures > -13F (-25C). Regions with colder temperatures require a low ambient chiller model and higher glycol concentrations (up to 50%). ...
  • Page 10  might collect. 4.0 Wiring Requirements: 4.1 Power Supply: cBoxX 60 - 99060 - 00243, 244 + 424 (UL) MAIN Power 460 / 3~ / 60Hz Max. over current protection 60 amp 909070-00249 + 425 (UL)
  • Page 11  Metal cable conduits are not allowed for grounding. The piping of the chiller (supply and return) must also be grounded. Do not share the ground wire with  other devices. Always use a ground wire that complies  with technical standards for electrical equipment and minimizes the length of the ground wire.
  • Page 12 panel and walls / floor as indicated below: Note: The figure represented is an example only, and may not represent actual installation conditions 300m 300m m500 Mounting Instructions CIP:  Attach the CIP to the wall using mounting screws and plastic spaces provided. Review Installation and Operation instructions provided with the CIP panel for further information 830.013.02.K_Installation Guidelines (USA ONLY!) - cBoxX (Version 1.3).docx 11 | P a g e...
  • Page 13 Attention: Observe the minimum clearance in front of the panel for service access as indicated in the drawing below. Attention: Observe the minimum clearances between the Note: Use provided spacers (3 qty.) for wall mounting. 300m 300m 12 in. 12 in. 830.013.02.K_Installation Guidelines (USA ONLY!) - cBoxX (Version 1.3).docx 12 | P a g e...
  • Page 14 122 mm 366 mm 4,8 in. 14,41 in. Location of mounting holes Holes for M8 360 mm 14,17 in. Fluid Connections CIP:  Connection to chiller (In/Out): 1-1/2” NPT (F)  Connection to the LCC (In/Out): 1-1/2” BSP (F)  Connection to emergency cooling: ¾” NPT (F) ...
  • Page 15 5.2 Remote Control Panel Mounting instructions and connection of Remote display panel: Dimensions:  Depth: Approx. 12 in. (300 mm)  Width: Approx. 12 in. (300 mm)  Height: Approx. 5 in. (120 mm) 8,38 mm 1. Remote display should be mounted near the desk in the MRI control room.
  • Page 16 Example: Circuit Overview Data transfer cable needs to be placed in 1” conduit.  Please, use conduit for transfer cable ONLY and NOT for power supply.  830.013.02.K_Installation Guidelines (USA ONLY!) - cBoxX (Version 1.3).docx 15 | P a g e...
  • Page 17 SEP cabinet 830.013.02.K_Installation Guidelines (USA ONLY!) - cBoxX (Version 1.3).docx 16 | P a g e...
  • Page 18 The recommended glycol and water must be at the filling point. Glycol (KKT Protect) is available  for purchase from KKT chillers at an additional charge. A water source must be available within close proximity (i.e.; garden hose attached to a building ...
  • Page 19 7.0 Addendum: 7.1 USA 7.1.1 Pre-Startup Checklist 830.013.02.K_Installation Guidelines (USA ONLY!) - cBoxX (Version 1.3).docx 18 | P a g e...
  • Page 20 7.1.2 Startup Checklist 830.013.02.K_Installation Guidelines (USA ONLY!) - cBoxX (Version 1.3).docx 19 | P a g e...
  • Page 21 830.013.02.K_Installation Guidelines (USA ONLY!) - cBoxX (Version 1.3).docx 20 | P a g e...
  • Page 22 This page left intentionally blank 830.013.02.K_Installation Guidelines (USA ONLY!) - cBoxX (Version 1.3).docx 21 | P a g e...
