Rodix FEEDER CUBE FC-70 Series Adjustments And Set Up page 3

OFF/ON CONTROL GUIDE
See section 4 of the Application Note for more
details on the REMOTE OFF/ON CONTROL guide.
A) LOW CURRENT SWITCH
1 2 3 4
FC-70 SERIES TERM STRIP TB-2
INPUT
ON/OFF
L1
Bl #14
240 VAC
50/60 Hz
L2
Wh #14
GND
Gr #14
MODEL INPUT VAC
FC-70-240
B)
LOW VOLTAGE INPUT SWITCHING
(DC Voltage from PLC or FC-90 Plus)
10-30 VDC INPUT VOLTAGE
OFF/ON CONTROL
- +
1 2 3 4
FC-70 SERIES TERM STRIP TB-2
POWER
5 AMP
Bl #14 Bl #14
Bl #14 Bl #14
Wh #14
AMPS
240 VAC 5
Bl #14
LOAD
1
TB1
L1
2
L2
3
L2
4
Run
P/N 24-215
4
J1
AMP.
3
POT
2
+12-24
- Gnd
TB2 1
GND
OUTPUT
0-240 V

RUN
JUMPER
Ext.
Volts
Bl #14
Wh #14
Gr #14
RODIX, INC.
rd
2316 23 Ave., Rockford, IL 61104
Toll Free (800) 562-1868, FAX (815) 316-4701
Email custserve@rodix.com
www.rodix.com
FC-70-240 24-215.doc 10/1/2015 Page 3
RODIX INC.

FEEDER CUBE
FC-70 Series

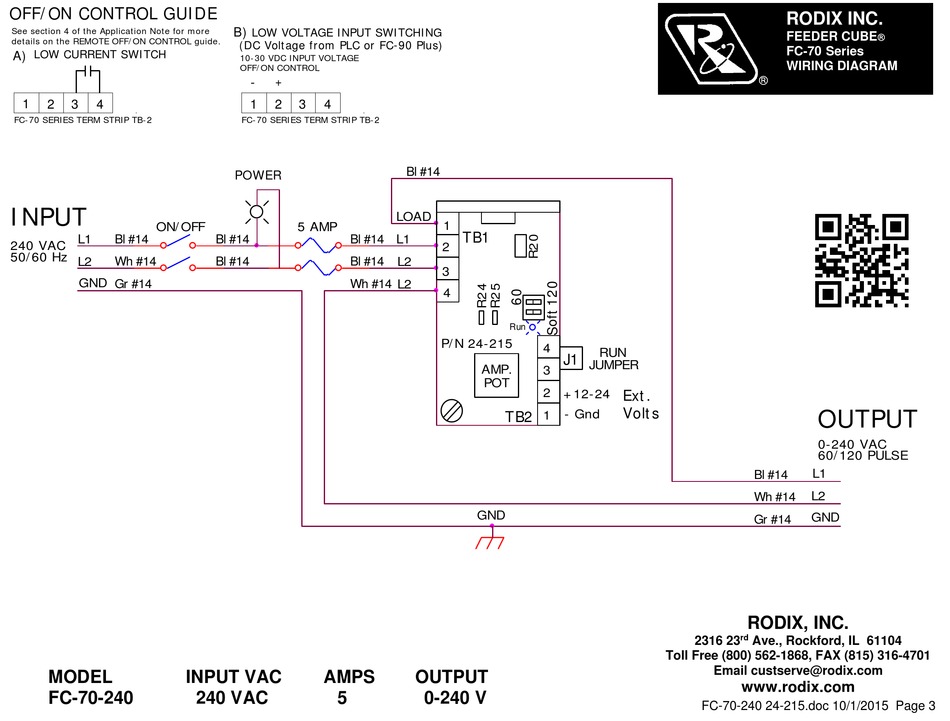

WIRING DIAGRAM
OUTPUT
0-240 VAC
60/120 PULSE
L1
L2
GND
